GD 2W10 Posted January 7, 2023 Share Posted January 7, 2023 On 6/17/2020 at 7:26 AM, Mov AX, 0xDEAD said: Make corrections to target driver XXX.sys so that it loads ntoskrn8.sys instead of the original ntoskrnl.exe If XXX.sys is driver made for Windows 8, change security_cookie to random value, security_cookie is constant 0x4EE640BB(x32) / 0x32A2DF2D992B(x64) inside file, change only first match ! How do I do that? Link to comment Share on other sites More sharing options...
UsefulAGKHelper Posted January 12, 2023 Share Posted January 12, 2023 (edited) On 1/8/2023 at 12:58 AM, GD 2W10 said: How do I do that? Using CFF explorer. To make the driver use the kernel extender, in the import section, rename ntoskrnl.exe to ntoskrn8.sys (obviously ntoskrn8.sys needs to be in the same directory as the driver so it works). If driver is designed for only windows 8 and newer os, Security_cookie (4EE640BB on 32-bit file, 32A2DF2D992B on 64-bit file) can be changed on hex editor to random value (first match only). Save the respective file, re-open the same file and refresh checksum and save again. To check the dependencies of the file, use Depedency Walker to check for missing imports. If there are problems, please post screenshots. Edited January 12, 2023 by UsefulAGKHelper 1 Link to comment Share on other sites More sharing options...

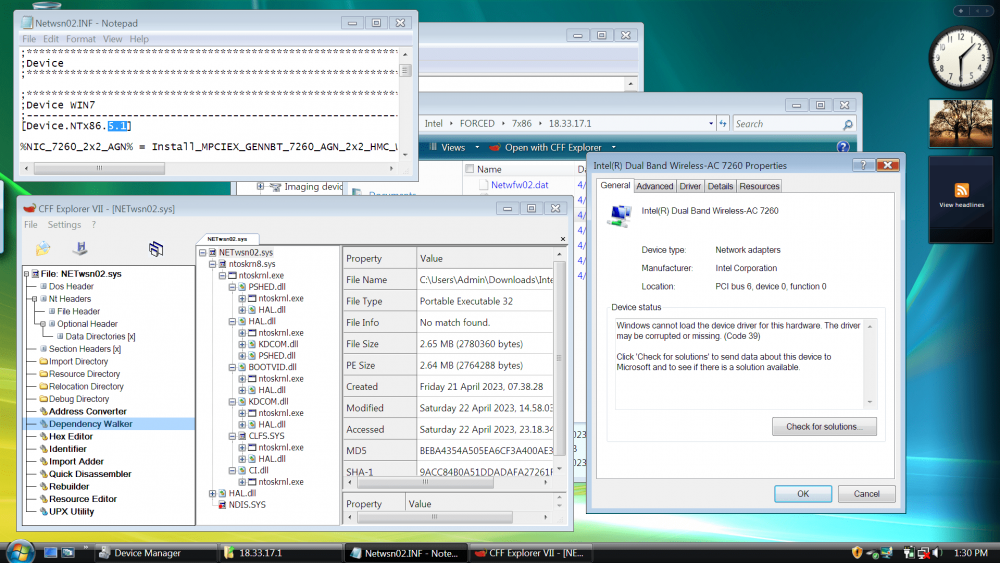

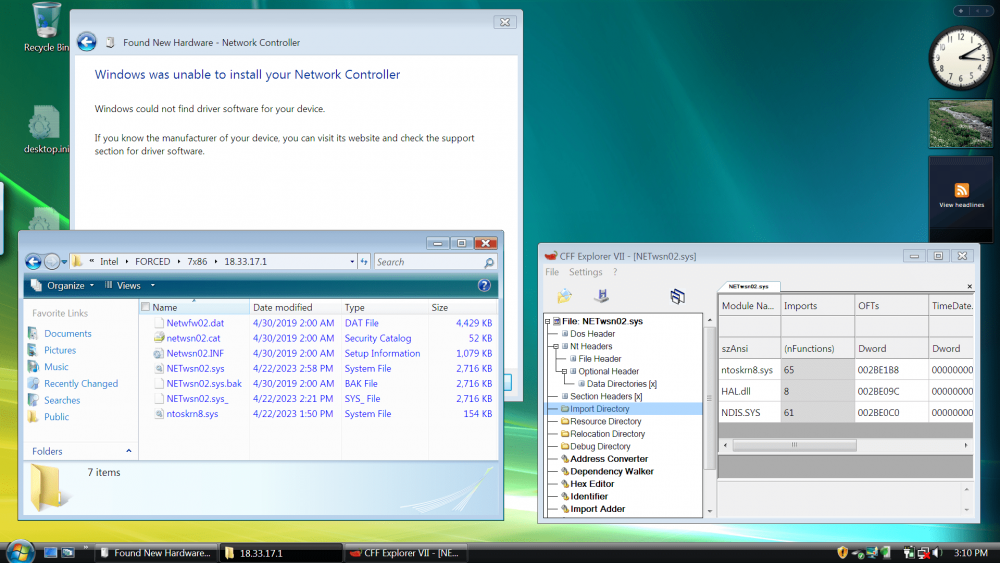

265993303 Posted April 22, 2023 Share Posted April 22, 2023 I have dual boot with Windows Vista Ultimate 32-bit on Dell Precision M3800, I'm trying to install the driver for Intel(R) Dual Band Wireless-AC 7260, I did the compiling of ntoskrn8.sys and the renaming of import as well as update checksum, and yet it still won't detect the driver in there. Link to comment Share on other sites More sharing options...
UsefulAGKHelper Posted April 24, 2023 Share Posted April 24, 2023 On 4/22/2023 at 4:25 PM, 265993303 said: I have dual boot with Windows Vista Ultimate 32-bit on Dell Precision M3800, I'm trying to install the driver for Intel(R) Dual Band Wireless-AC 7260, I did the compiling of ntoskrn8.sys and the renaming of import as well as update checksum, and yet it still won't detect the driver in there. Check this driver with Dependency Walker to ensure that there aren't any missing imports on ntoskrn8.sys. Link to comment Share on other sites More sharing options...
George King Posted April 26, 2023 Share Posted April 26, 2023 On 4/22/2023 at 3:25 PM, 265993303 said: I have dual boot with Windows Vista Ultimate 32-bit on Dell Precision M3800, I'm trying to install the driver for Intel(R) Dual Band Wireless-AC 7260, I did the compiling of ntoskrn8.sys and the renaming of import as well as update checksum, and yet it still won't detect the driver in there. Check your INF, it's probably system locked (6.1) and needs to be modded too. Link to comment Share on other sites More sharing options...
265993303 Posted April 26, 2023 Share Posted April 26, 2023 After lowering system restriction, a lonely NDIS.SYS dependency is left. On 4/24/2023 at 12:11 PM, UsefulAGKHelper said: Check this driver with Dependency Walker to ensure that there aren't any missing imports on ntoskrn8.sys. 1 hour ago, George King said: Check your INF, it's probably system locked (6.1) and needs to be modded too. Link to comment Share on other sites More sharing options...
R1600 Posted April 26, 2023 Share Posted April 26, 2023 3 hours ago, 265993303 said: After lowering system restriction, a lonely NDIS.SYS dependency is left. There's no known way to solve NDIS dependency problem. In theory, it is possible to fix NDIS dependency in a similar way to ntoskrnl_emu, but only a few people, including @Mov AX, 0xDEAD, can do it. Masters in the field tried to do something similar for Windows XP, but without success. Link to comment Share on other sites More sharing options...
Mov AX, 0xDEAD Posted April 26, 2023 Author Share Posted April 26, 2023 8 hours ago, R1600 said: There's no known way to solve NDIS dependency problem. In theory, it is possible to fix NDIS dependency in a similar way to ntoskrnl_emu, but only a few people, including @Mov AX, 0xDEAD, can do it. NDIS 6 is new framework, that's problem, if think it is not easy to make it compatible with XP kernel even all missed import will be solved. Another way is emulation NDIS6 features based on NDIS5 source code, but it requires a lot(?) of programming Link to comment Share on other sites More sharing options...
George King Posted April 27, 2023 Share Posted April 27, 2023 17 hours ago, 265993303 said: After lowering system restriction, a lonely NDIS.SYS dependency is left. You have not lowered it. Just locked it to 5.1. Vista is 6.0.. 1 Link to comment Share on other sites More sharing options...
R1600 Posted April 27, 2023 Share Posted April 27, 2023 9 hours ago, Mov AX, 0xDEAD said: NDIS 6 is new framework, that's problem, if think it is not easy to make it compatible with XP kernel even all missed import will be solved. Another way is emulation NDIS6 features based on NDIS5 source code, but it requires a lot(?) of programming I agree. But it would be technically much simpler to extend NDIS 6.x beyond Vista, right? Link to comment Share on other sites More sharing options...
Dietmar Posted April 27, 2023 Share Posted April 27, 2023 @Mov AX, 0xDEAD The Vista Longhorn version 5048 has ndis6. I tested lan driver from XP bit32 for i210 and i217. Both work with 5048 ndis6. But the i219 win7 bit32 lan driver has one missing dependency to the ndis6 from Longhorn 5048 Dietmar Link to comment Share on other sites More sharing options...
Mov AX, 0xDEAD Posted April 27, 2023 Author Share Posted April 27, 2023 4 hours ago, Dietmar said: @Mov AX, 0xDEAD The Vista Longhorn version 5048 has ndis6. I tested lan driver from XP bit32 for i210 and i217. Both work with 5048 ndis6. But the i219 win7 bit32 lan driver has one missing dependency to the ndis6 from Longhorn 5048 @Dietmar Thanks for info, i will check how it is stable 1 Link to comment Share on other sites More sharing options...
Mov AX, 0xDEAD Posted April 28, 2023 Author Share Posted April 28, 2023 @Dietmar, https://msfn.org/board/topic/183528-ndis6-support-for-xp/?do=findComment&comment=1244341 Link to comment Share on other sites More sharing options...
265993303 Posted April 29, 2023 Share Posted April 29, 2023 The NDIS.SYS dependencies are the following: 002BED00 002BED00 017D NdisMSynchronizeWithInterruptEx 002BED22 002BED22 014D NdisMMapIoSpace 002BE360 002BE360 0175 NdisMSetMiniportAttributes 002BE37E 002BE37E 0147 NdisMIndicateStatusEx 002BE396 002BE396 017A NdisMSleep 002BE3A4 002BE3A4 0165 NdisMRegisterMiniportDriver 002BECF0 002BECF0 01E3 NdisUnmapFile 002BECE2 002BECE2 0187 NdisMapFile 002BECD2 002BECD2 0040 NdisCloseFile 002BECC2 002BECC2 019B NdisOpenFile 002BECA8 002BECA8 013A NdisMGetDeviceProperty 002BEC96 002BEC96 0173 NdisMSetBusData 002BEC84 002BEC84 0139 NdisMGetBusData 002BEC6E 002BEC6E 009D NdisFreeIoWorkItem 002BEC58 002BEC58 01AC NdisQueueIoWorkItem 002BEC3E 002BEC3E 0012 NdisAllocateIoWorkItem 002BEC22 002BEC22 0136 NdisMFreeNetBufferSGList 002BEC02 002BEC02 010D NdisMAllocateNetBufferSGList 002BEBF4 002BEBF4 009E NdisFreeMdl 002BEBE2 002BEBE2 0013 NdisAllocateMdl 002BEBBE 002BEBBE 006B NdisCopyFromNetBufferToNetBuffer 002BEB96 002BEB96 0018 NdisAllocateNetBufferAndNetBufferList 002BEB7E 002BEB7E 00A3 NdisFreeNetBufferList 002BEB62 002BEB62 00A5 NdisFreeNetBufferListPool 002BEB42 002BEB42 001B NdisAllocateNetBufferListPool 002BED34 002BED34 0180 NdisMUnmapIoSpace 002BEB0A 002BEB0A 00CA NdisGetSystemUpTimeEx 002BEAF4 002BEAF4 00AE NdisFreeTimerObject 002BEADC 002BEADC 002F NdisCancelTimerObject 002BEAC2 002BEAC2 0025 NdisAllocateTimerObject 002BEAA8 002BEAA8 01B2 NdisReadNetworkAddress 002BEA8E 002BEA8E 01F7 NdisWriteConfiguration 002BEA6C 002BEA6C 019A NdisOpenConfigurationKeyByName 002BEA56 002BEA56 016B NdisMResetComplete 002BEA46 002BEA46 01E7 NdisWaitEvent 002BEA34 002BEA34 01C0 NdisResetEvent 002BEA24 002BEA24 01CB NdisSetEvent 002BEA0E 002BEA0E 00FB NdisInitializeEvent 002BE9F6 002BE9F6 016D NdisMRestartComplete 002BE9E0 002BE9E0 0151 NdisMPauseComplete 002BE9C0 002BE9C0 012F NdisMDeregisterMiniportDriver 002BE99A 002BE99A 0144 NdisMIndicateReceiveNetBufferLists 002BE978 002BE978 016F NdisMSendNetBufferListsComplete 002BE95E 002BE95E 0198 NdisOpenConfigurationEx 002BE946 002BE946 00FD NdisInitializeString 002BE92C 002BE92C 003F NdisCloseConfiguration 002BE914 002BE914 01AE NdisReadConfiguration 002BE904 002BE904 0137 NdisMFreePort 002BE8F0 002BE8F0 010E NdisMAllocatePort 002BE8DC 002BE8DC 014E NdisMNetPnPEvent 002BE8C2 002BE8C2 0150 NdisMOidRequestComplete 002BE8A8 002BE8A8 01F8 NdisWriteErrorLogEntry 002BE890 002BE890 0138 NdisMFreeSharedMemory 002BE874 002BE874 010F NdisMAllocateSharedMemory 002BE850 002BE850 0016 NdisAllocateMemoryWithTagPriority 002BE83E 002BE83E 009F NdisFreeMemory 002BED48 002BED48 0166 NdisMRegisterScatterGatherDma 002BED68 002BED68 0130 NdisMDeregisterScatterGatherDma 002BED8A 002BED8A 0162 NdisMRegisterInterruptEx 002BEDA6 002BEDA6 012D NdisMDeregisterInterruptEx 002BEB22 002BEB22 01CA NdisSetCoalescableTimerObject Link to comment Share on other sites More sharing options...
Brickedandroid Posted July 3, 2023 Share Posted July 3, 2023 One more missing function that isn't added yet in ntoskrn8.sys Link to comment Share on other sites More sharing options...
