Patched IO.SYS for 9x/ME

**jds** · January 27, 2012

Thanks for the reply jds, but i guess I wasn't clear. I meant CD and DVD drives, not a combo drive. Any disc (CD or DVD) tends to show up twice in Windows Explorer for some reason.

I was researching a problem with Vista, the opposite to this, wherein the CD/DVD drive disappears ... and I came across a KB which describes your particular problem. Of course, now that I want to reference it, I can't find it. Anyway, from what I remember, it said to boot in "safe mode" and delete the invalid entries in device manager. It described how to determine which entries were invalid and which to keep (probably by looking for "this device is operating correctly" status text, but I'm not certain). Hope that's of some help. If I find that KB again, I'll come back here and edit this posting.

Joe.

Edited January 27, 2012 by jds

**jds** · January 27, 2012

Is it possible to make the patch for Win ME, too? Till now I've hidden phantom drives.
I have updated my PATCHPAR Program to Patch the Unpacked Windows ME IO.SYS as well. You will need to get the Unpacker from my Website.
Let me know if it solves your problem.

Hi Mr. Loew.

Well, I decided to give this a try on my home PC and unfortunately, ran into a problem.

My drive H: (in DOS 7.1, without loading the W98SE GUI) produced the following from a DIR command :


 Volume in drive H is \é)ÞŠ†¥pÊ
 Directory of H:\

y‹³æ"bx 2Àí 3,273,781,586  06/04/89  11:37
         1 file(s)  3,273,781,586 bytes
         0 dir(s)          446.52 MB free

By contrast, your earlier partial patch together with my favourite two byte patches to IO.SYS produces the following :


 Volume in drive H is 2-3-FLAKEY
 Volume Serial Number is 07EA-4466
 Directory of H:\

MUSIC          <DIR>        14/01/10   0:43
VIDEO          <DIR>        14/01/10   1:21
TH99           <DIR>        01/02/10   0:41
CDDA           <DIR>        31/03/10  23:03
FTP            <DIR>        17/12/10  20:06
CAMERA         <DIR>        31/05/11  20:56
TEMPOR~1       <DIR>        01/06/11  23:26
         0 file(s)              0 bytes
         7 dir(s)          361.72 MB free

The physical drive in question has the following partition table entries :


06 FAT16 (Primary)
E7 RS (Primary)
0F Extended Partition (LBA)
83 EXT2 (Primary)

The extended partition has a single volume (logical drive H:) :
0B FAT32 (LBA by virtue of the extended partition type)

All other drives and volumes work OK with either set of patches.

Joe.

Edited January 27, 2012 by jds

**rloew** · January 27, 2012

Is it possible to make the patch for Win ME, too? Till now I've hidden phantom drives.
I have updated my PATCHPAR Program to Patch the Unpacked Windows ME IO.SYS as well. You will need to get the Unpacker from my Website.
Let me know if it solves your problem.
Hi Mr. Loew.
Well, I decided to give this a try on my home PC and unfortunately, ran into a problem.
My drive H: (in DOS 7.1, without loading the W98SE GUI) produced the following from a DIR command :
 Volume in drive H is \é)ÞŠ†¥pÊ
 Directory of H:\

y‹³æ"bx 2Àí 3,273,781,586  06/04/89  11:37
         1 file(s)  3,273,781,586 bytes
         0 dir(s)          446.52 MB free
By contrast, your earlier partial patch together with my favourite two byte patches to IO.SYS produces the following :
 Volume in drive H is 2-3-FLAKEY
 Volume Serial Number is 07EA-4466
 Directory of H:\

MUSIC          <DIR>        14/01/10   0:43
VIDEO          <DIR>        14/01/10   1:21
TH99           <DIR>        01/02/10   0:41
CDDA           <DIR>        31/03/10  23:03
FTP            <DIR>        17/12/10  20:06
CAMERA         <DIR>        31/05/11  20:56
TEMPOR~1       <DIR>        01/06/11  23:26
         0 file(s)              0 bytes
         7 dir(s)          361.72 MB free
The physical drive in question has the following partition table entries :
06 FAT16 (Primary)
E7 RS (Primary)
0F Extended Partition (LBA)
83 EXT2 (Primary)

The extended partition has a single volume (logical drive H:) :
0B FAT32 (LBA by virtue of the extended partition type)
All other drives and volumes work OK with either set of patches.
Joe.

I have not been able to replicate this problem.

What is the layout of the first Drive?

Run the attached program from DOS 7.1 and post the result.

Edited January 27, 2012 by rloew

**jds** · January 28, 2012

I have not been able to replicate this problem.
What is the layout of the first Drive?
Run the attached program from DOS 7.1 and post the result.

OK, here's the output from 'ltools -part' :



******************************************************************************
LTOOLS version V6.12 (C) 1996-2006 Werner.Zimmermann|AT|fht-esslingen.de
Compiled with Borland C 5.0 on Apr 27 2006 as 16bit binary
Running ldir under Windows  V7.10
******************************************************************************
# LTOOLS infos ---------------------------------------------------------------
##### Disk 128 = /dev/hda : CHS= 788: 255:  63
----- Bios Int 13h extensions used --- LBA mode
#  1 Type:FAT16 >32M    1906MB from CHS=  0:  1:  1 to CHS=242:254:63 bootable
                                 secs=3903732     start=63
#  2 Type:DOS   ExPar   4267MB from CHS=243:  0:  1 to CHS=786:254:63
                                 secs=8739360     start=3903795
#  5 Type:FAT16 >32M    2047MB from CHS=243:  1:  1 to CHS=503:254:63
                                 secs=4192902     start=3903858
#  6 Type:FAT16 >32M    2047MB from CHS=504:  1:  1 to CHS=764:254:63
                                 secs=4192902     start=8096823
#  7 Type:Linux Swap     172MB from CHS=765:  1:  1 to CHS=786:254:63
                                 secs=353367     start=12289788
# LTOOLS infos ---------------------------------------------------------------
##### Disk 129 = /dev/hdb : CHS=4111: 255:  63
----- Bios Int 13h extensions used --- LBA mode
#  1 Type:FAT16 >32M    1380MB from CHS=  0:  1:  1 to CHS=175:254:63
                                 secs=2827377     start=63
#  2 Type:e7   1804MB from CHS=176:  0:  1 to CHS=405:254:63
                                 secs=3694950     start=2827440
#  3 Type:Win   ExPar   25007MB from CHS=406:  0:  1 to CHS=521:254:63
                                 secs=51215220     start=6522390
#  4 Type:Linux EXT2    4000MB from CHS=522:  0:  1 to CHS=  7:254:63
                                 secs=8193150     start=57737610
#  5 Type:Win9x FAT32   25007MB from CHS=406:  1:  1 to CHS=521:254:63
                                 secs=51215157     start=6522453
# LTOOLS infos ---------------------------------------------------------------
##### Disk 130 = /dev/hdc : CHS= 784: 255:  63
----- Bios Int 13h extensions used --- LBA mode
#  1 Type:Win9x FAT32   5130MB from CHS=  0:  1:  1 to CHS=653:254:63
                                 secs=10506447     start=63
#  2 Type:DOS   ExPar   1019MB from CHS=654:  0:  1 to CHS=783:254:63
                                 secs=2088450     start=10506510
#  5 Type:FAT16 >32M    1019MB from CHS=654:  1:  1 to CHS=783:254:63
                                 secs=2088387     start=10506573

Partition numbers 1-4 are primary, 5+ are logical volumes in an extended partition.

Here's the drive configuration reported by 'fdisk' :



  Fixed Disk Drive Status
  Disk   Drv   Mbytes   Free   Usage
    1            6181       8   100%
          C:     1906
          F:     2047
          G:     2047
                  173
    2           32248      55   100%
          D:     1381
          H:    25007
    3            6150           100%
          E:     5130
          I:     1020

Finally, here's the output from 'partsx' :


D010:0000  A  DR=00  OFF=00000000 FLG=FFFFFFFF
D010:0096  B  DR=01  OFF=00000000 FLG=FFFFFFFF
D010:012C  C  DR=80  OFF=0000003F FLG=00000001
D010:01C2  D  DR=81  OFF=0000003F FLG=00000001
D010:0258  E  DR=82  OFF=0000003F FLG=00000001
D010:02EE  F  DR=80  OFF=003B9172 FLG=00000001
D010:0384  G  DR=80  OFF=007B8C37 FLG=00000001
D010:041A  H  DR=81  OFF=00638655 FLG=00000001
D010:04B0  I  DR=82  OFF=00A0514D FLG=00000001

Joe.

**gerislamico** · January 28, 2012

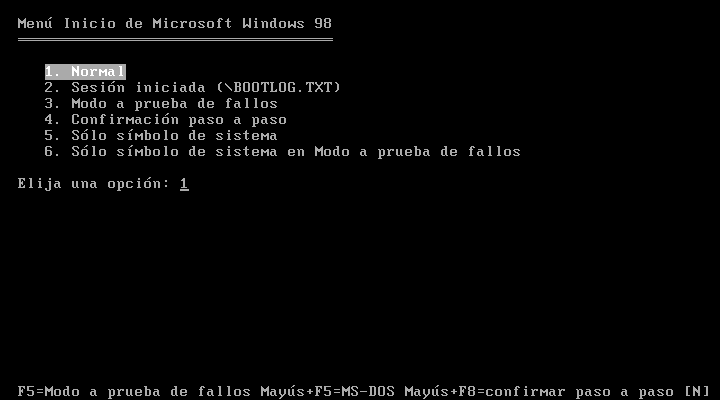

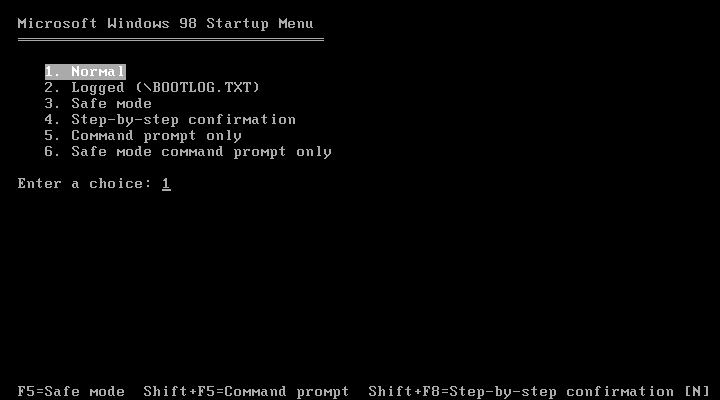

Hello, with a tool to edit the winboot.98s Spanish included as part of IO.SYS in "http://support.microsoft.com/kb/311561" ( http://download.microsoft.com/download/win98/ patch/22527/w98/es/311561spa8.exe) erroneously translated into English by Microsoft

Sample Capture

Edited January 28, 2012 by gerislamico

**rloew** · January 28, 2012

Finally, here's the output from 'partsx' :


D010:0000  A  DR=00  OFF=00000000 FLG=FFFFFFFF
D010:0096  B  DR=01  OFF=00000000 FLG=FFFFFFFF
D010:012C  C  DR=80  OFF=0000003F FLG=00000001
D010:01C2  D  DR=81  OFF=0000003F FLG=00000001
D010:0258  E  DR=82  OFF=0000003F FLG=00000001
D010:02EE  F  DR=80  OFF=003B9172 FLG=00000001
D010:0384  G  DR=80  OFF=007B8C37 FLG=00000001
D010:041A  H  DR=81  OFF=00638655 FLG=00000001
D010:04B0  I  DR=82  OFF=00A0514D FLG=00000001

Joe.

Everything looks normal. H: should have worked properly.

Were you running my Patched IO.SYS when you ran PARTSX or the working version?

Either way, switch to the other one and rerun PARTSX.

**jds** · January 28, 2012

Finally, here's the output from 'partsx' :
D010:0000  A  DR=00  OFF=00000000 FLG=FFFFFFFF
D010:0096  B  DR=01  OFF=00000000 FLG=FFFFFFFF
D010:012C  C  DR=80  OFF=0000003F FLG=00000001
D010:01C2  D  DR=81  OFF=0000003F FLG=00000001
D010:0258  E  DR=82  OFF=0000003F FLG=00000001
D010:02EE  F  DR=80  OFF=003B9172 FLG=00000001
D010:0384  G  DR=80  OFF=007B8C37 FLG=00000001
D010:041A  H  DR=81  OFF=00638655 FLG=00000001
D010:04B0  I  DR=82  OFF=00A0514D FLG=00000001
Joe.
Everything looks normal. H: should have worked properly.
Were you running my Patched IO.SYS when you ran PARTSX or the working version?
Either way, switch to the other one and rerun PARTSX.

The above was with the combined (working) patches.

With the non-working patch, I get the following :


D010:0000  A  DR=00  OFF=00000000 FLG=FFFFFFFF
D010:0096  B  DR=01  OFF=00000000 FLG=FFFFFFFF
D010:012C  C  DR=80  OFF=0000003F FLG=00000001
D010:01C2  D  DR=81  OFF=0000003F FLG=00000001
D010:0258  E  DR=82  OFF=0000003F FLG=00000001
D010:02EE  F  DR=80  OFF=0000003F FLG=00F30001
D010:0384  G  DR=80  OFF=0000003F FLG=01F80001
D010:041A  H  DR=81  OFF=00638655 FLG=02FD0001
D010:04B0  I  DR=82  OFF=0000003F FLG=028E0001

Joe.

**rloew** · January 28, 2012

Finally, here's the output from 'partsx' :


D010:0000  A  DR=00  OFF=00000000 FLG=FFFFFFFF
D010:0096  B  DR=01  OFF=00000000 FLG=FFFFFFFF
D010:012C  C  DR=80  OFF=0000003F FLG=00000001
D010:01C2  D  DR=81  OFF=0000003F FLG=00000001
D010:0258  E  DR=82  OFF=0000003F FLG=00000001
D010:02EE  F  DR=80  OFF=003B9172 FLG=00000001
D010:0384  G  DR=80  OFF=007B8C37 FLG=00000001
D010:041A  H  DR=81  OFF=00638655 FLG=00000001
D010:04B0  I  DR=82  OFF=00A0514D FLG=00000001

With the non-working patch, I get the following :


D010:0000  A  DR=00  OFF=00000000 FLG=FFFFFFFF
D010:0096  B  DR=01  OFF=00000000 FLG=FFFFFFFF
D010:012C  C  DR=80  OFF=0000003F FLG=00000001
D010:01C2  D  DR=81  OFF=0000003F FLG=00000001
D010:0258  E  DR=82  OFF=0000003F FLG=00000001
D010:02EE  F  DR=80  OFF=0000003F FLG=00F30001
D010:0384  G  DR=80  OFF=0000003F FLG=01F80001
D010:041A  H  DR=81  OFF=00638655 FLG=02FD0001
D010:04B0  I  DR=82  OFF=0000003F FLG=028E0001

I believe the following combination of Partitions caused the problem

1. On Drive #1 you have a Type 5 Extended Partition.

2. The last Logical Partition in this Extended Partition is Non-DOS.

3. On Drive #2 you have a Type 0xF Extended Partition.

4. The Logical Partition in this Extended Partition is DOS.

It is a rather improbable combination but I have revised my Patch so it should cover it.

Try the attached Patch on an Unpatched copy of IO.SYS and boot with the Patched IO.SYS

Test all of your Partitions and run PARTSX again.

EDIT: This Patch has been revised and has been tested.

IMPORTANT: Four copies were downloaded before 7:15 PM EST. Do not use these copies are they do not cover all cases.

REEDIT: The Patch did not correctly handle Windows ME and has been removed. A new Patch will be posted shortly. Patches to IOSYS 7 are fine.

Edited January 29, 2012 by rloew

**rloew** · January 29, 2012

I see no one listens. Four people downloaded the experimental PATCHPAR I posted earlier.

I said not to download it before it was verified. I have already redone it.

@jds: If you already downloaded it, redownload the newer copy in my previous post and use it instead.

**jds** · January 29, 2012

I see no one listens. Four people downloaded the experimental PATCHPAR I posted earlier.
I said not to download it before it was verified. I have already redone it.
@jds: If you already downloaded it, redownload the newer copy in my previous post and use it instead.

Well, Mr Loew,

I've just downloaded and this one works properly for me.

Joe.

**PROBLEMCHYLD** · January 29, 2012

I see no one listens. Four people downloaded the experimental PATCHPAR I posted earlier.
I said not to download it before it was verified. I have already redone it.
@jds: If you already downloaded it, redownload the newer copy in my previous post and use it instead.
Well, Mr Loew,
I've just downloaded and this one works properly for me.
Joe.

Perfect

New version will be added to Service Pack 3

==================================================
Filename          : WINBOOT.SYS
MD5               : 94d9415346382faef754ca943e6759dd
SHA1              : ba48cf1b40fc820fce708afee87f732cbfc6a04e
CRC32             : 82380988
SHA-256           : c86124aace28c02fcde58e967f91c3930097247a107b22dba6b542fb817f623c
SHA-512           : eb3b3cff053c24bdda018832d5e2da2f8e292132f20e0c3a771f33cbb57923898697814a35ce9799c5cb80ed133ed1cb37ee4ca56c34a26531f836150024958b
Full Path         : C:\WINBOOT.SYS
Modified Time     : 1/28/2012 7:55:13 PM
Created Time      : 1/28/2012 7:57:05 PM
File Size         : 222,670
File Version      :
Product Version   :
Identical         :
Extension         : SYS
File Attributes   : A
==================================================

Edited January 29, 2012 by PROBLEMCHYLD

**rloew** · January 29, 2012

I see no one listens. Four people downloaded the experimental PATCHPAR I posted earlier.
I said not to download it before it was verified. I have already redone it.
@jds: If you already downloaded it, redownload the newer copy in my previous post and use it instead.
Well, Mr Loew,
I've just downloaded and this one works properly for me.
Joe.
Perfect
New version will be added to Service Pack 3
==================================================
Filename          : WINBOOT.SYS
MD5               : 94d9415346382faef754ca943e6759dd
SHA1              : ba48cf1b40fc820fce708afee87f732cbfc6a04e
CRC32             : 82380988
SHA-256           : c86124aace28c02fcde58e967f91c3930097247a107b22dba6b542fb817f623c
SHA-512           : eb3b3cff053c24bdda018832d5e2da2f8e292132f20e0c3a771f33cbb57923898697814a35ce9799c5cb80ed133ed1cb37ee4ca56c34a26531f836150024958b
Full Path         : C:\WINBOOT.SYS
Modified Time     : 1/28/2012 7:55:13 PM
Created Time      : 1/28/2012 7:57:05 PM
File Size         : 222,670
File Version      :
Product Version   :
Identical         :
Extension         : SYS
File Attributes   : A
==================================================

Jumping the gun a bit, but it should be OK as long as you weren't one of the four who downloaded it before 7:15 PM EST

I am removing the previous versions from the Forum as they do not cover all possible configurations of Partitions.

**PROBLEMCHYLD** · January 29, 2012

Jumping the gun a bit, but it should be OK as long as you weren't one of the four who downloaded it before 7:15 PM EST

I was NOT one of the four. LOL

**jaclaz** · January 29, 2012

I see no one listens. Four people downloaded the experimental PATCHPAR I posted earlier.
I said not to download it before it was verified. I have already redone it.
@jds: If you already downloaded it, redownload the newer copy in my previous post and use it instead.

JFYI :

http://reboot.pro/2362/page__st__31

jaclaz

**dencorso** · January 29, 2012

I see no one listens. Four people downloaded the experimental PATCHPAR I posted earlier.
I said not to download it before it was verified. I have already redone it.
@jds: If you already downloaded it, redownload the newer copy in my previous post and use it instead.
Well, Mr Loew,
I've just downloaded and this one works properly for me.
Joe.

Hi, Joe!

I'm glad the latest installment of RLoew's patch worked OK for you.

But, just for completeness, would you please post the output of partsx while using it?

Thanks in advance!

Sign In

Patched IO.SYS for 9x/ME

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members
