Recommended Posts


21 hours ago, reboot12 said:

@Dave-H

Delete the Restart button from msgina.dll file (Dialog 20100 resource), e.g. using Resource Hacker :-)

Just an off-topic thank you.
That worked perfectly!

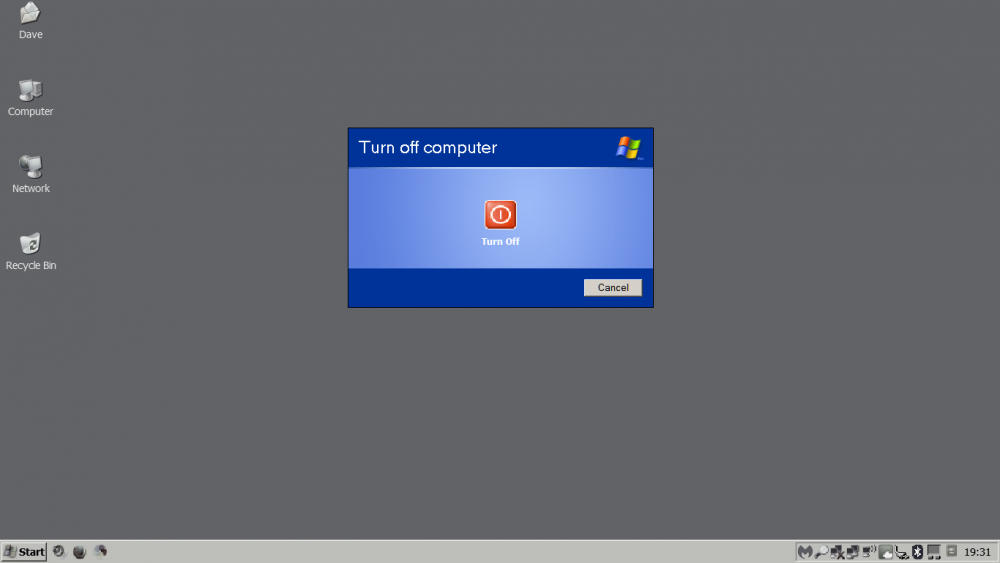

I've also removed the Standby button, as that doesn't work as it should either, it goes into standby, but then you can't get it back out of it!
Finally, no more having to force it off with the power button because I've forgotten that it doesn't standby or restart properly!
:thumbup
Cheers, Dave.


Link to comment
Share on other sites

28 minutes ago, NotHereToPlayGames said:

That's an oldie-but-goodie little trick.  I used to remove Hibernate and Standby on XP x64 systems with more than 4GB RAM because they were "greyed out".

On some computers, hibernation works in WinXP 64-bit if we add in boot.ini option /maxm=4096

https://www.elektroda.pl/rtvforum/viewtopic.php?p=15842181#15842181

Link to comment
Share on other sites

@Mov AX, 0xDEAD

As careful as I can, I check the Acpi Bsod A5 (0x03,..) on the x64 acpi.sys on different z690 boards.

When you integrate the switch /ONECPU into boot.ini

this acpi.sys, build with exact your code, works without any hack.

But as soon as you use more than 2 processors (1 core and 1 thread)

you get this acpi Bsod from above.

Because it use the same DSDT for XP SP3 and x64, there must be something, that gives this Bsod

when you use more than 1 processor.

Now the processors are used as normal devices and because of this there can be an A5 (0x03,..) Bsod

because of their device definition, which crashes in bit64 but not in bit32

Dietmar

0x000000A5 (0x00000003, xxx, 0xC0000034, yyy)    in 64bit version

Edited by Dietmar
Link to comment
Share on other sites

8 hours ago, Dietmar said:

@canonkong

Now I make a try with Bios Modd,

because Bsod depends on number of processors

Dietmar

EDIT: Bios Modd for the old processor definition and old x64 acpi.sys gives exact the same Bsod 0xA.



What the debug error is? BIOS often not only one error, like my B650E mainboard, need to fix 5 errors.

Link to comment
Share on other sites

@canonkong

As I write above.

This Bsod happens somewhere before Acpimustcomplete.

When we substitute each of the 31(!) different 0xC0000034 with other number,

we can catch the path this Bsod takes but not exact where

Dietmar

PS: I compare the Source Code in "Acpi" for XP SP3 and x64.

May be, that at a place is a simple error, typo, that gives the result, that only 1 cpu is allowed.

I found 2 missing "&", dont know if this means anything.

Edited by Dietmar
Link to comment
Share on other sites

5 hours ago, Dietmar said:

PS: I compare the Source Code in "Acpi" for XP SP3 and x64.

May be, that at a place is a simple error, typo, that gives the result, that only 1 cpu is allowed.

I found 2 missing "&", dont know if this means anything.

@Dietmar

I will check last acpi.sys in VM x64 with multiple cpu and acpi007 definitions. If bsod will not triggered - your dsdt is much complex, as i remember you have external COM card, try to setup with it

Link to comment
Share on other sites

@Mov AX, 0xDEAD

This are the 31 places of 0xC0000034 in the x64 acpi.sys, build from your original last Sources

Dietmar

.text:0000000000018E9E ACPIBuildProcessorExtension                                     mov     eax, 0C0000034h
.text:00000000000228FB ACPIGetConvertToDevicePresence                                  cmp     edx, 0C0000034h
.text:000000000002299B ACPIGetConvertToDevicePresence                                  cmp     edx, 0C0000034h
.text:000000000002320D ACPIGet                                                         mov     eax, 0C0000034h
.text:0000000000025EE0 AcpiArbSetLinkNodeIrqWorker                                     mov     ebx, 0C0000034h
.text:0000000000026A05 AcpiArbCrackPRT                                                 cmp     ebx, 0C0000034h
.text:0000000000026A43 AcpiArbCrackPRT                                                 mov     ebx, 0C0000034h
.text:0000000000027E75 IsPciDeviceWorker                                               cmp     edi, 0C0000034h
.text:0000000000028A5C IsPciBusAsyncWorker                                             cmp     edi, 0C0000034h
.text:000000000002A12E ACPISystemPowerUpdateWakeCapabilitiesForFilters                 cmp     eax, 0C0000034h
.text:000000000002A163 ACPISystemPowerUpdateWakeCapabilitiesForFilters                 cmp     r11d, 0C0000034h
.text:000000000002A2A5 ACPISystemPowerUpdateWakeCapabilitiesForFilters                 cmp     eax, 0C0000034h
.text:000000000002A4EB ACPISystemPowerDetermineSupportedDeviceStates                   cmp     eax, 0C0000034h
.text:000000000002A537 ACPISystemPowerDetermineSupportedDeviceStates                   cmp     ebp, 0C0000034h
.text:000000000002AB97 ACPISystemPowerUpdateDeviceCapabilities                         cmp     eax, 0C0000034h
.text:00000000000334F8 GetNameSpaceObject                                              mov     eax, 0C0000034h
.text:00000000000335A9 GetNameSpaceObject                                              mov     eax, 0C0000034h
.text:0000000000033620 GetNameSpaceObject                                              mov     eax, 0C0000034h
.text:000000000003370F CreateNameSpaceObject                                           cmp     eax, 0C0000034h
.text:00000000000378A1 ParseAndGetNameSpaceObject                                      cmp     eax, 0C0000034h
.text:000000000003B2DC Load                                                            cmp     eax, 0C0000034h
PAGE:000000000004FF7A  ACPIBusIrpQueryId                                               cmp     eax, 0C0000034h
PAGE:000000000004FFC8  ACPIBusIrpQueryId                                               cmp     eax, 0C0000034h
PAGE:0000000000050DA3  ACPIDetectCouldExtensionBeInRelation                            mov     eax, 0C0000034h
PAGE:0000000000051139  ACPIDetectFilterMatch                                           cmp     eax, 0C0000034h
PAGE:0000000000055AA2  OSReadAcpiConfigurationData                                     mov     eax, 0C0000034h
PAGE:000000000005905E  ACPISystemPowerGetSxD                                           cmp     eax, 0C0000034h
PAGE:0000000000059092  ACPISystemPowerGetSxD                                           mov     eax, 0C0000034h
PAGE:000000000005919A  ACPISystemPowerProcessSxD                                       cmp     r11d, 0C0000034h
PAGE:00000000000591CC  ACPISystemPowerProcessSxD                                       cmp     eax, 0C0000034h
PAGE:000000000005AA7F  ACPIDockIrpEject                                                mov     ebx, 0C0000034h



Link to comment
Share on other sites

@Mov AX, 0xDEAD

The last numbers in x64 Bsod on the Asrock z690 Extreme board I translate Hex ==> Asci

0x000000004449485F ==> _HID this is the crash maker in DSDT. But the Hex number before give no sense

0xFFFFFADCE50B4ED8 ==>   ÿÿúÜå NØ        ??? I think, that it is a HEX pointer.



Whole Bsod in x64 is

0x000000A5 (0x0000000000000003, 0xFFFFFADCE50B4ED8, 0xFFFFFFFFC0000034, 0x000000004449485F)

Dietmar



EDIT: I just noticed, that this is a new acpi Bsod.

Until now, we never see an acpi Bsod in XP via _HID  ( 0x000000004449485F ) or ( 0x4449485F ) .



Interesting, that XP SP3 gives there no Bsod, only x64.

So, this critical device with _HID must be treated different under acpi in XP SP3 and x64.

Here is the DSDT for this board.

https://ufile.io/ijhcnlbg

Edited by Dietmar
Link to comment
Share on other sites

@Mov AX, 0xDEAD

I succeed to install working Windbg via COM1 on the nice Gigabyte UD z690 DDR4 board with 12900k cpu under XP 64bit SP2.

Before it was not possible to start any windbg session on this board,

but with the brandnew Bios from this December suddently its integrated COM1 port works!

Crash, crash, crash via 0xA5 (0x03, yyy, 0xFFFFFFFFC0000034, 0x000000004449485F) .

But now comes the most crazy thing:

With the DEBUG acpi.sys it does not crash at all.

This makes examination much harder what is going on with the normal acpi.sys

Dietmar

Link to comment
Share on other sites

@Mov AX, 0xDEAD

This is with free acpi.sys for XP bit64, free ntoskrnl.exe and free hal.dll

Dietmar

Windows Server 2003 Kernel Version 3790 MP (1 procs) Free x64
Built by: 3790.srv03_sp2_gdr.130306-1435
Machine Name:
Kernel base = 0xfffff800`01000000 PsLoadedModuleList = 0xfffff800`011d4140
System Uptime: not available

************* Symbol Path validation summary **************
Response                         Time (ms)     Location
OK                                             C:\symbolssss
Deferred                                       srv*

************* Symbol Path validation summary **************
Response                         Time (ms)     Location
OK                                             C:\localsymbols

************* Symbol Path validation summary **************
Response                         Time (ms)     Location
Deferred                                       srv*

*** Fatal System Error: 0x000000a5
                       (0x0000000000000003,0xFFFFFADCE4CB9C30,0xFFFFFFFFC0000034,0x000000004449485F)

Break instruction exception - code 80000003 (first chance)

A fatal system error has occurred.
Debugger entered on first try; Bugcheck callbacks have not been invoked.

A fatal system error has occurred.

Connected to Windows Server 2003 3790 x64 target at (Sun Jan  1 03:07:08.453 2023 (UTC + 1:00)), ptr64 TRUE
Loading Kernel Symbols
............................

Press ctrl-c (cdb, kd, ntsd) or ctrl-break (windbg) to abort symbol loads that take too long.
Run !sym noisy before .reload to track down problems loading symbols.

...
Loading User Symbols

*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

Use !analyze -v to get detailed debugging information.

BugCheck A5, {3, fffffadce4cb9c30, ffffffffc0000034, 4449485f}

Probably caused by : ACPI.sys ( ACPI!ACPIBuildCompleteMustSucceed+39 )

Followup: MachineOwner
---------

nt!RtlpBreakWithStatusInstruction:
fffff800`01026cf0 cc              int     3
22: kd> !analyze -v
*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

ACPI_BIOS_ERROR (a5)
The ACPI Bios in the system is not fully compliant with the ACPI specification.
The first value indicates where the incompatibility lies:
This bug check covers a great variety of ACPI problems.  If a kernel debugger
is attached, use "!analyze -v".  This command will analyze the precise problem,
and display whatever information is most useful for debugging the specific
error.
Arguments:
Arg1: 0000000000000003, ACPI_FAILED_MUST_SUCCEED_METHOD
    ACPI tried to run a control method while creating device extensions
    to represent the ACPI namespace, but this control method failed.
Arg2: fffffadce4cb9c30, The ACPI Object that was being run
Arg3: ffffffffc0000034, return value from the interpreter
Arg4: 000000004449485f, Name of the control method (in ULONG format)

Debugging Details:
------------------


ACPI_OBJECT:  fffffadce4cb9c30

DEFAULT_BUCKET_ID:  DRIVER_FAULT

BUGCHECK_STR:  0xA5

PROCESS_NAME:  System

CURRENT_IRQL:  2

ANALYSIS_VERSION: 6.3.9600.17237 (debuggers(dbg).140716-0327) x86fre

LAST_CONTROL_TRANSFER:  from fffff800010d668e to fffff80001026cf0

STACK_TEXT:
fffffadc`c400e4c8 fffff800`010d668e : 00000000`00000016 00000000`00000000 00000000`00000003 fffff800`010565ce : nt!RtlpBreakWithStatusInstruction
fffffadc`c400e4d0 fffff800`010d7c5e : fffff800`00000003 00000000`000000a5 00000000`00000003 fffffadc`e4cb9c30 : nt!KiBugCheckDebugBreak+0x1e
fffffadc`c400e530 fffff800`0102e994 : 00000000`c0000034 fffffadc`e3d63000 00000000`00000000 fffffadc`c3562d2d : nt!KeBugCheck2+0x640
fffffadc`c400eb70 fffffadc`c35480f9 : 00000000`000000a5 00000000`00000003 fffffadc`e4cb9c30 ffffffff`c0000034 : nt!KeBugCheckEx+0x104
fffffadc`c400ebb0 fffffadc`c3555ecd : 00000000`c0000034 fffffadc`e3d63000 fffffadc`e3d631c8 00000000`00000000 : ACPI!ACPIBuildCompleteMustSucceed+0x39 [c:\win2k3\nt\base\busdrv\acpi\driver\nt\buildsrc.c @ 422]
fffffadc`c400ebf0 fffffadc`c356739f : fffffadc`e3d63000 00000000`00000000 00000000`00008004 00000000`c0000034 : ACPI!ACPIGetWorkerForString+0x29d [c:\win2k3\nt\base\busdrv\acpi\driver\nt\get.c @ 5806]
fffffadc`c400ec40 fffffadc`c3565e77 : fffffadc`e3d63000 00000000`00000000 00000000`00008004 00000000`c0000034 : ACPI!AsyncCallBack+0x7f [c:\win2k3\nt\base\busdrv\acpi\driver\amlinew\sync.c @ 85]
fffffadc`c400ec70 fffffadc`c3565432 : fffffadc`e3d63000 fffffadc`c357d0c0 fffffadc`c357d100 00000000`00000000 : ACPI!RunContext+0x147 [c:\win2k3\nt\base\busdrv\acpi\driver\amlinew\ctxt.c @ 649]
fffffadc`c400eca0 fffffadc`c35654d8 : 00000000`00000000 00000000`00000000 fffffadc`e3e73240 00000000`00000000 : ACPI!InsertReadyQueue+0xd2 [c:\win2k3\nt\base\busdrv\acpi\driver\amlinew\sched.c @ 278]
fffffadc`c400ecd0 fffffadc`c35609e5 : 5ab75ab7`00000002 1a761a76`1a761a76 fffffadc`00000001 fffffadc`00000000 : ACPI!RestartCtxtPassive+0x28 [c:\win2k3\nt\base\busdrv\acpi\driver\amlinew\sched.c @ 384]
fffffadc`c400ed00 fffff800`0124a982 : 8a5a8a5a`8a5a8a5a fffffadc`e67e3bf0 00000000`00000080 fffffadc`e67e3bf0 : ACPI!ACPIWorker+0xe5 [c:\win2k3\nt\base\busdrv\acpi\driver\nt\worker.c @ 325]
fffffadc`c400ed70 fffff800`01020226 : fffffadc`c3bbb180 fffffadc`e67e3bf0 fffffadc`c3bc3680 00000000`00000000 : nt!PspSystemThreadStartup+0x3e
fffffadc`c400edd0 00000000`00000000 : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KxStartSystemThread+0x16


STACK_COMMAND:  kb

FOLLOWUP_IP:
ACPI!ACPIBuildCompleteMustSucceed+39 [c:\win2k3\nt\base\busdrv\acpi\driver\nt\buildsrc.c @ 422]
fffffadc`c35480f9 cc              int     3

FAULTING_SOURCE_LINE:  c:\win2k3\nt\base\busdrv\acpi\driver\nt\buildsrc.c

FAULTING_SOURCE_FILE:  c:\win2k3\nt\base\busdrv\acpi\driver\nt\buildsrc.c

FAULTING_SOURCE_LINE_NUMBER:  422

FAULTING_SOURCE_CODE:
No source found for 'c:\win2k3\nt\base\busdrv\acpi\driver\nt\buildsrc.c'


SYMBOL_STACK_INDEX:  4

SYMBOL_NAME:  ACPI!ACPIBuildCompleteMustSucceed+39

FOLLOWUP_NAME:  MachineOwner

MODULE_NAME: ACPI

IMAGE_NAME:  ACPI.sys

DEBUG_FLR_IMAGE_TIMESTAMP:  63adcd5b

IMAGE_VERSION:  5.2.3790.7777

FAILURE_BUCKET_ID:  X64_0xA5_ACPI!ACPIBuildCompleteMustSucceed+39

BUCKET_ID:  X64_0xA5_ACPI!ACPIBuildCompleteMustSucceed+39

ANALYSIS_SOURCE:  KM

FAILURE_ID_HASH_STRING:  km:x64_0xa5_acpi!acpibuildcompletemustsucceed+39

FAILURE_ID_HASH:  {fe462e3b-bd12-a13c-a95f-bb49a4eb48bc}

Followup: MachineOwner
---------

22: kd> lm
start             end                 module name
fffff800`00800000 fffff800`0085e000   hal        (deferred)
fffff800`01000000 fffff800`01498000   nt         (pdb symbols)          C:\Programme\Windows Kits\8.1\Debuggers\x86\sym\ntkrnlmp.pdb\7C3C62B843A04B97A1FBEBC91C88CBFF2\ntkrnlmp.pdb
fffffadc`c3144000 fffffadc`c3178000   Mup        (deferred)
fffffadc`c3178000 fffffadc`c31de000   NDIS       (deferred)
fffffadc`c31de000 fffffadc`c32e3000   Ntfs       (deferred)
fffffadc`c32e3000 fffffadc`c3317000   KSecDD     (deferred)
fffffadc`c3317000 fffffadc`c333a000   sr         (deferred)
fffffadc`c333a000 fffffadc`c3378000   fltMgr     (deferred)
fffffadc`c3378000 fffffadc`c3395000   CLASSPNP   (deferred)
fffffadc`c3395000 fffffadc`c33aa000   disk       (deferred)
fffffadc`c33aa000 fffffadc`c340d000   storport   (deferred)
fffffadc`c340d000 fffffadc`c343a000   atapi      (deferred)
fffffadc`c343a000 fffffadc`c3485000   volsnap    (deferred)
fffffadc`c3485000 fffffadc`c34cc000   dmio       (deferred)
fffffadc`c34cc000 fffffadc`c350c000   ftdisk     (deferred)
fffffadc`c350c000 fffffadc`c3522000   MountMgr   (deferred)
fffffadc`c3522000 fffffadc`c3543000   pci        (deferred)
fffffadc`c3543000 fffffadc`c3598000   ACPI       (private pdb symbols)  C:\Programme\Windows Kits\8.1\Debuggers\x86\sym\acpi.pdb\32E6A6AD68BF47258C44F2A0AC4B32961\acpi.pdb
fffffadc`c3598000 fffffadc`c35b6000   amdhub30   (deferred)
fffffadc`c35b6000 fffffadc`c35f2000   amdxhc     (deferred)
fffffadc`c36f3000 fffffadc`c3704000   USBSTOR    (deferred)
fffffadc`c3706000 fffffadc`c3718000   storahci   (deferred)
fffffadc`c39fb000 fffffadc`c3a05000   kdcom      (deferred)
fffffadc`c3a0b000 fffffadc`c3a14000   BOOTVID    (deferred)
fffffadc`c3a1b000 fffffadc`c3a24000   WMILIB     (deferred)
fffffadc`c3a2b000 fffffadc`c3a34000   isapnp     (deferred)
fffffadc`c3a3b000 fffffadc`c3a4b000   PCIIDEX    (deferred)
fffffadc`c3a4b000 fffffadc`c3a5b000   PartMgr    (deferred)
fffffadc`c3a5b000 fffffadc`c3a66000   crcdisk    (deferred)
fffffadc`c3dfb000 fffffadc`c3e02000   pciide     (deferred)
fffffadc`c3e02000 fffffadc`c3e09000   dmload     (deferred)
fffffadc`c41a7000 fffffadc`c41a8e00   USBD       (deferred)

Link to comment
Share on other sites

@Mov AX, 0xDEAD

I am still in running Windbg.

There is an endless loop, any idea how I can reset this Interrupt, can this be the reason for Bsod

Dietmar

AMLI:| HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0
| | | | | HAL: RTC interrupt flag is not cleared by first read.
| RTC Status Register C = 0xc0



Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
