Compiling ACPI v2.0 driver for Windows XP SP3 and Windows 2003 SP2 (x32/x64)

[Mark-XP]

Many thanks @Dietmar: Now that i read your reply i think to remember, that you've chosen such an approach in the past months too...

I do not have the equipment to make an install on a normal harddisk for this notebook, but a similar z170 board here, the Gigabyte Mini-ITX z170, and i could try to (Xx)clone the XP partition to the NVMe. Unfortunately it's m.2 NVMe interface is on it's backside (unaccessable at the moment) - but maybe i can utilize an adapter like this: https://www.delock.de/produkt/62864/merkmale.html

Currently there is an offer of such an adapter at "kleinanzeigen" (for 4 Euros )... Have a nice day!

Edited November 7 by Mark-XP

[MilkChan]

@Dietmar Do you have ACPI.sys compatible with A520-HVS(ASRock) motherboard?

This is the new motherboard I just received.

[Mark-XP]

12 hours ago, Mark-XP said:

I do not have the equipment to make an install on a normal harddisk for this notebook, but a similar z170 board here, the Gigabyte Mini-ITX z170, and i could try to (Xx)clone the XP partition to the NVMe. Unfortunately it's m.2 NVMe interface is on it's backside (unaccessable at the moment)

Yyyess and many thanks again @Dietmar! It did take some time for me to remember, that my nice&cheap Chieftec LT-01B indeed has a hole in the assembly area for the mobo. So it was easyly possible to mount the 970 Evo and (Xx)clone the XP system partition (from a backup harddisk) on it. To be on the safe side, i cloned the mbr and bootsector to the NVMe too.

Never saw XP booting fast like that , but i was quite nervous if it would boot up the Z170 Lenovo Yoga too... well, it does!

Exactly 12 (twelve) dialogs of new hardware appear, the screen res (2560x1440 native -> 1024x768) is horrible, and there is no sound: unfortunately the engineers opted for a Conexant Soundchip and i haven't found an appropriate driver for XP (one for older Lenovo notebooks didn't work).

But hey, i'm so happy to have a booting and working XP partition on the Yoga initially, now boring Win7 and Debian can follow for a nice tri-boot...

Edit: But what the heck is the cause for that halt during installation then, if a system - created with the same USB-install-stick - does run flawlessly once copied ??

Edited November 7 by Mark-XP

[Dietmar]

@MilkChan

Hi,

try this one for XP SP3.

I have others with some special modd for notebooks,

but this should work for you.

Good luck

Dietmar

https://ufile.io/aijaqmds

[MilkChan]

3 hours ago, Dietmar said:

@MilkChan

Hi,

try this one for XP SP3.

I have others with some special modd for notebooks,

but this should work for you.

Good luck

Dietmar

https://ufile.io/aijaqmds

Thank you friend.

[MilkChan]

14 hours ago, Dietmar said:

@MilkChan

Hi,

try this one for XP SP3.

I have others with some special modd for notebooks,

but this should work for you.

Good luck

Dietmar

https://ufile.io/aijaqmds

nice work!! thx

You are really my god.

[reboot12]

@Dietmar

On 11/7/2024 at 10:41 PM, Dietmar said:

I have others with some special modd for notebooks,

Someone on ThinkPad P53 test my WinXP 64-bit tutorial and have BSOD ACPI A5 with this acpi.sys > link:

*** STOP: 0x000000A5 (0x0000000000000003, 0xFFFFFADE849EDC59, 0xFFFFFFFFC0140010,0 0x000000004 94E495F)

Edited November 11 by reboot12

[Dietmar]

@reboot12 The important part of this Bsod is C0140010.

It means, that via acpi an invalid region for the target was specified.

C0140010, STATUS_ACPI_INVALID_REGION

I never saw this Bsod before in XP SP3, bit32.

In the evening I am at home and try to make a hack for it

Dietmar

Edited November 11 by Dietmar

[Dietmar]

@reboot12

Here is the wished acpi.sys bit64 for XP SP2.

I just do the hack for  C0140010 ==> 00000000  at 3 places, following the idea from skull.

Dont know, how serious this Bsod is, anyway now it should be gone

Dietmar

https://ufile.io/hw7xnwtv

[reboot12]

@Dietmar

Thx, I send for guy SK91NO that has problem.

He reported that your patched acpi works :-)
https://forums.mydigitallife.net/threads/winxp-64-bit-on-a-modern-pc-iso-boot-wim-install-wim.88435/page-5#post-1860005

Edited November 11 by reboot12

[reboot12]

On 2/18/2024 at 8:55 PM, George King said:

Disable New HW UI

Which register entry should be used in WinXP 64-bit - XP or 2003?

[aliktz]

On 10/8/2024 at 12:04 PM, Dietmar said:

@LoneCrusader

https://ufile.io/7ecgpqiq

Hello. This link doesn't work. Please update.

Edited November 18 by aliktz

[Dietmar]

@aliktz

Here is new link.

I update also acpi.sys bit64 to its very last version

Dietmar

https://ufile.io/vknb4j2p



[aliktz]

23 часа назад, Дитмар сказал:

@aliktz

https://ufile.io/vknb4j2p

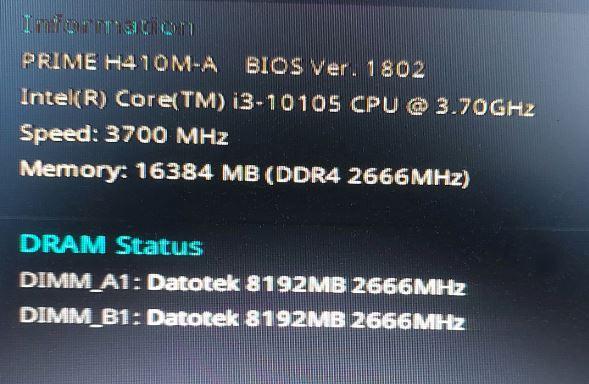

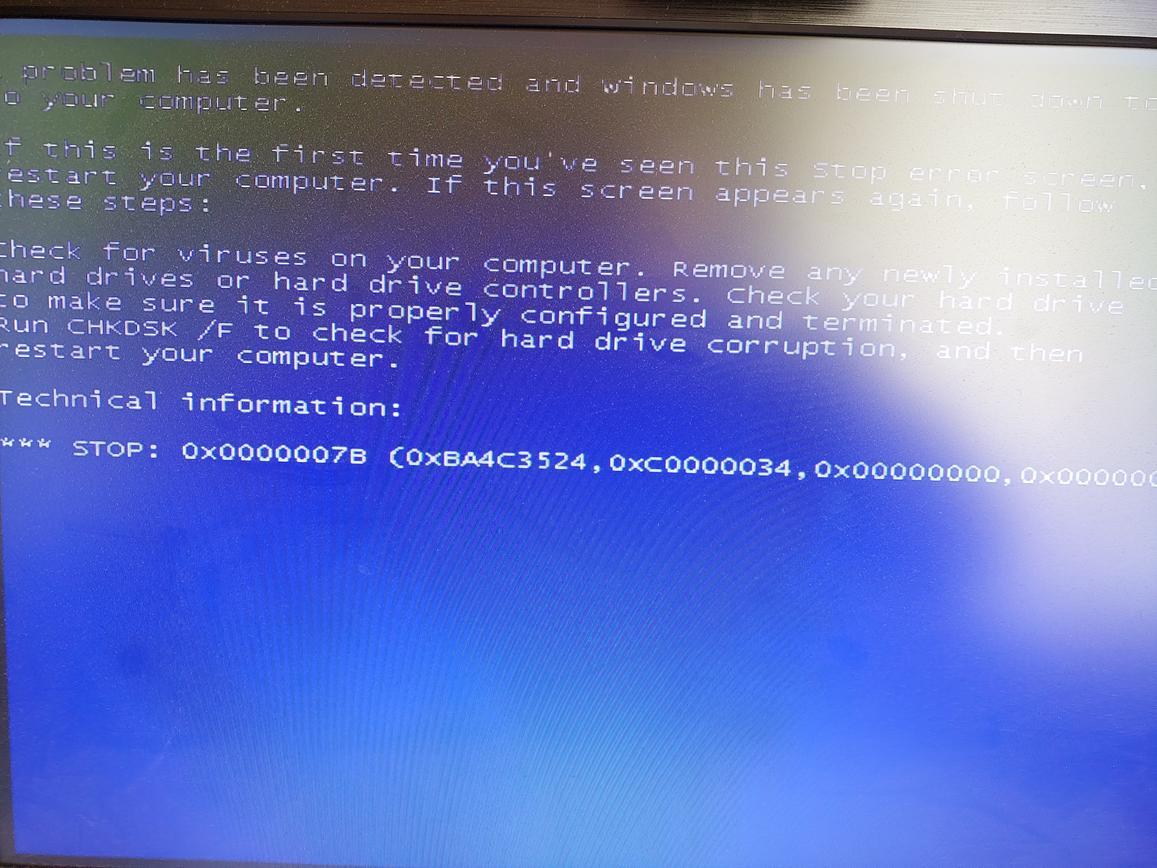

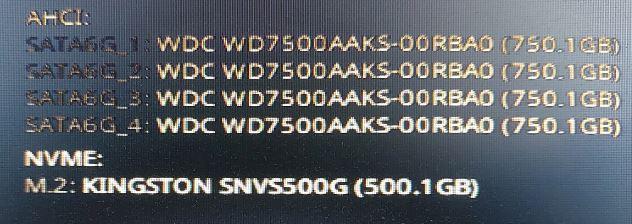

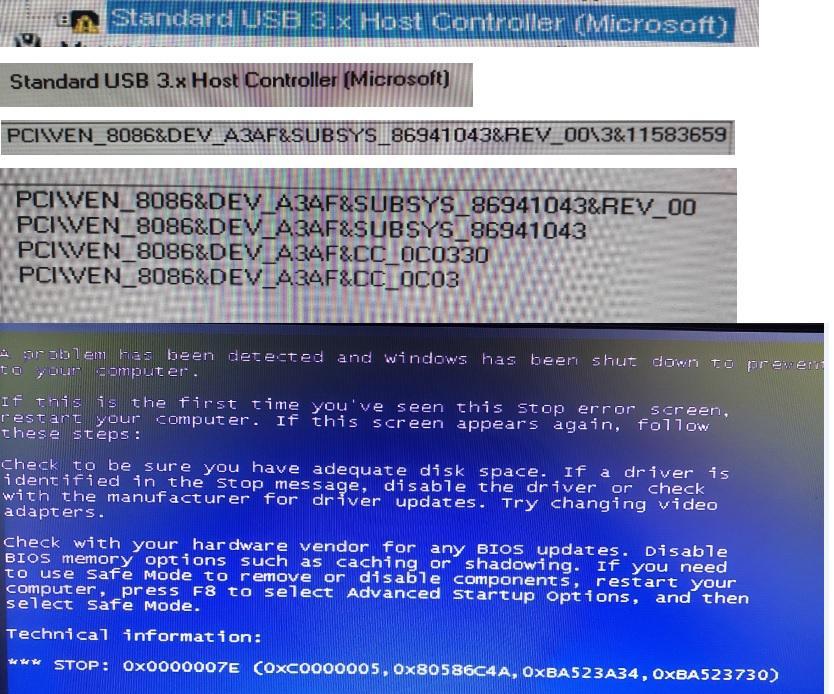

Здравствуйте. Спасибо за ссылку и оперативную помощь. Я проверил acpi по вашей ссылке. С ним у меня синий экран (фото 1). I am using Windows XP x86. Если я использую acpi (5.1.2600.7777(1106)) он загружается без проблем. Также есть проблема с acpi (5.1.2600.7777(1106)), все порты USB не работают. Я перепробовал много драйверов. Я проверил драйверы из этой ветки и получил синий экран (фото 2). Информация о моем компьютере (фото 3 и фото 4). Windows установлена на NVME. Подскажите, пожалуйста, в чем может быть проблема?





Edited November 19 by aliktz

[Dietmar]

@aliktz

This files are all for XP SP2 bit64.

You tell, that you installed XP x86 32bit.

Make a try with a normal XP SP3 install, choosing Ramseys XP

Dietmar
