wimb

VHD_WIMBOOT - Apply and Capture of WIM Files for OS in VHD

Recommended Posts

Posted (edited)

VHD_WIMBOOT - Apply and Capture of WIM Files for OS in VHD

Download:  VHD_WIMBOOT-28.zip  and at Reboot.pro Forum

APPLY of WIM File in wimboot mode to VHD gives Operating System with only variable and boot essential files total about 1 GB in VHD.
The VHD contains also pointers to the non variable files in the WIM archive, so that it seems that the complete OS is present in the VHD.
The VHD content can be generated in 2 minutes from the WIM archive of about 9 GB, so that a backup of the system is always available.
The VHD + WIM set can be copied to any drive so that we have a portable Operating System.
The WIM file cannot be changed by viruses or other malware so that the system is reliable and if needed it is easy to generate new VHD.
The VHD can boot as 25 GB FILEDISK from Portable SSD to allow changes, but also booting always Fresh from 3.9 GB RAMDISK is possible.

VHD WIMBOOT has support for Office and Printer and any program can be installed, which is all not possible in case of WinPE
In case of VHD WIMBOOT on each machine it takes extra boottime and space to adjust the drivers for that machine
The VHD WIMBOOT solution is Portable, but not as flexible as Win10XPE, where boottime is not dependant on machine hardware


Credits and Thanks to:

Microsoft for making WIMBOOT - https://msdn.microsoft.com/en-us/library/dn631793.aspx and https://docs.microsoft.com/en-us/windows/win32/w8cookbook/windows-image-file-boot--wimboot-
synchronicity aka Eric Biggers for making wimlib - https://wimlib.net/
schtrom for making SVBus Virtual SCSI Host Adapter for GRUB4DOS - http://reboot.pro/topic/21787-svbus-virtual-scsi-host-adapter-for-grub4dos/
alacran for support and info - http://reboot.pro/topic/21957-making-the-smallest-win10-install-wimboot-mode-on-512-mb-vhd/
            and http://reboot.pro/topic/21972-reducing-wimboot-source-wim-file-using-lzx-compression-and-vhd-using-gzip-or-lz4-compression-to-save-room-and-also-load-faster-on-ram/
JFX for making WinNTSetup to Install Windows 2k/XP/2003/Vista/7/8/10 x86/x64 - https://msfn.org/board/topic/149612-winntsetup-v394/
Uwe Sieber for making ListUsbDrives - http://www.uwe-sieber.de/english.html
Pauly for making BOOTICE - available via http://reboot.pro/files/file/592-bootice-v1332/
          and https://sites.google.com/site/gbrtools/home/software/bootice-portable/bootice-downloads
chenall, yaya, tinybit and Bean for making Grub4dos - http://grub4dos.chenall.net/categories/downloads/

Thanks to karyonix, alacran, Wonko the Sane, tinybit, yaya, chenall, cdob, JFX, steve6375, ReTokener, synchronicity, schtrom and Microsoft
Development is described here - http://reboot.pro/topic/18182-uefi-multi-make-multi-boot-usb-drive/page-5

The program is released "as is" and is free for redistribution, use or changes as long as original author,
credits part and link to the reboot.pro support forum are clearly mentioned
VHD_WIMBOOT - http://reboot.pro/topic/21977-vhd-wimboot-apply-and-capture-of-wim-files-for-os-in-vhd/

Author does not take any responsibility for use or misuse of the program.


Edited by wimb

Share this post


Link to post
Share on other sites

Posted (edited)

VHD_WIMBOOT - Apply and Capture of WIM Files for OS in VHD

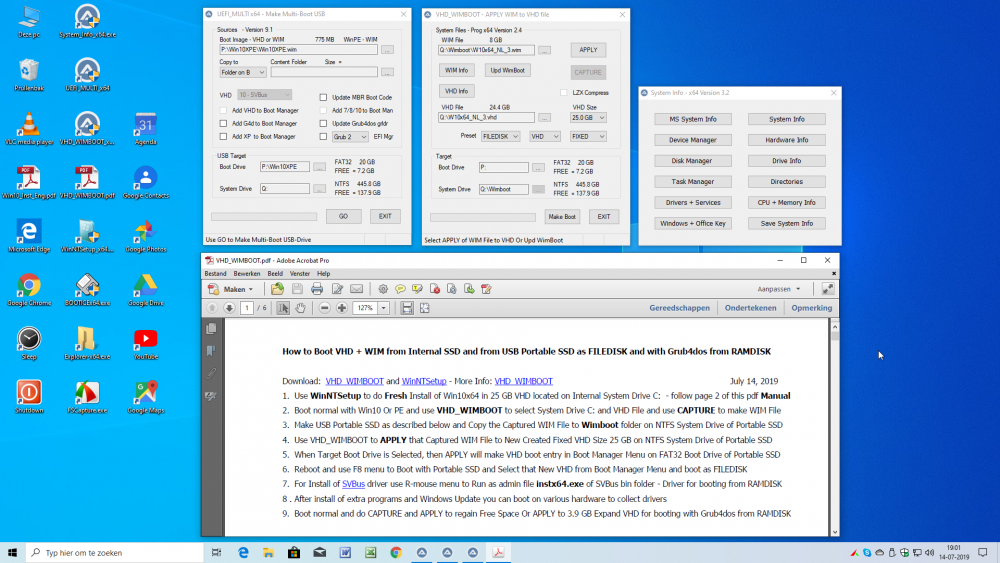

Manual:  VHD_WIMBOOT.pdf

VHD_WIMBOOT-2019-11-18_112410.png.ba70886d785cad734c439457a46b22d1.png ==

Step 1 is use WinNTSetup to do Fresh Install of Win10x64 in VHD located on your Internal System Drive C: according to page 2 of the pdf Manual
Step 2 is use VHD_WIMBOOT to CAPTURE New WIM file from that VHD so that the capture is WimBoot compatible and contains only 1 Index
Step 3 is use VHD_WIMBOOT to APPLY that Captured WIM File to New VHD on NTFS System Drive of USB Portable SSD
Step 4 is Boot Portable SSD with that New VHD from Boot Manager Menu as FILEDISK - do Windows Update and Add Programs + Drivers e.g. SVBus driver
Step 5 is use VHD_WIMBOOT for CAPTURE and APPLY to Regain Free Space Or APPLY to 3.9 GB Expand VHD for booting with Grub4dos from RAMDISK

FILEDISK / RAMDISK is a Preset to get desired values for VHD Type (Fixed / Expandable) and VHD Size (25 / 3.9 GB)
- FILEDISK - Use Fixed VHD 25 GB booting with Boot Manager Menu and with Free space to add drivers for new hardware, to allow Windows Update and to add Programs
- RAMDISK - Use Expandable VHD 3.9 GB to allow Fast loading into RAM from Grub4dos Menu and using SVBus Driver for booting from RAMDISK

The Buttons WIM Info and VHD Info will give useful info about your WIM and VHD file

The Button Upd WimBOOT can be used after copy of VHD + WIM to other drive to make the set bootable again

The Button Make Boot will make the boot entries on Target Boot Drive for VHD located on NTFS System Drive
- VHD boot entry in Boot Manager Menu for booting as FILEDISK - in BIOS mode and in UEFI mode
- VHD boot entry in Grub4dos Menu for booting VHD from RAMDISK using SVBus Driver - in BIOS mode only
- For booting from USB with Portable SSD - After BIOS beep press F8 Or F11 to arrive at BIOS Boot Menu and select your boot device

LZX Compression can be used in CAPTURE to make WIM files of smaller size.
Roughly with LZX the time to CAPTURE is doubled and the WIM Size is 30% smaller so that it saves for a 9 GB WIM file about 3 GB.

More Info is in UEFI_MULTI  topic and is given by alacran in WIMBOOT Topic and Compression and RAMBOOT Topic

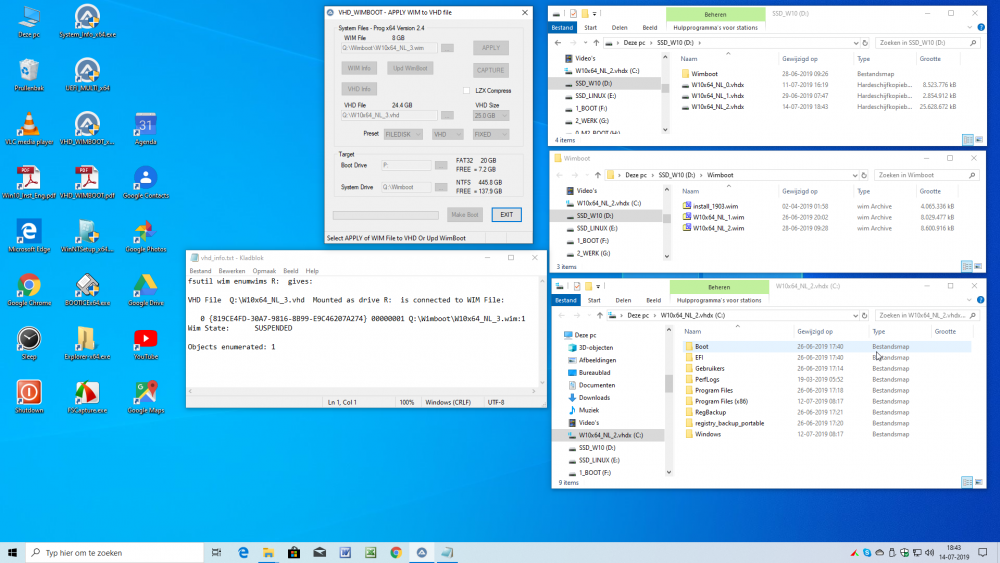

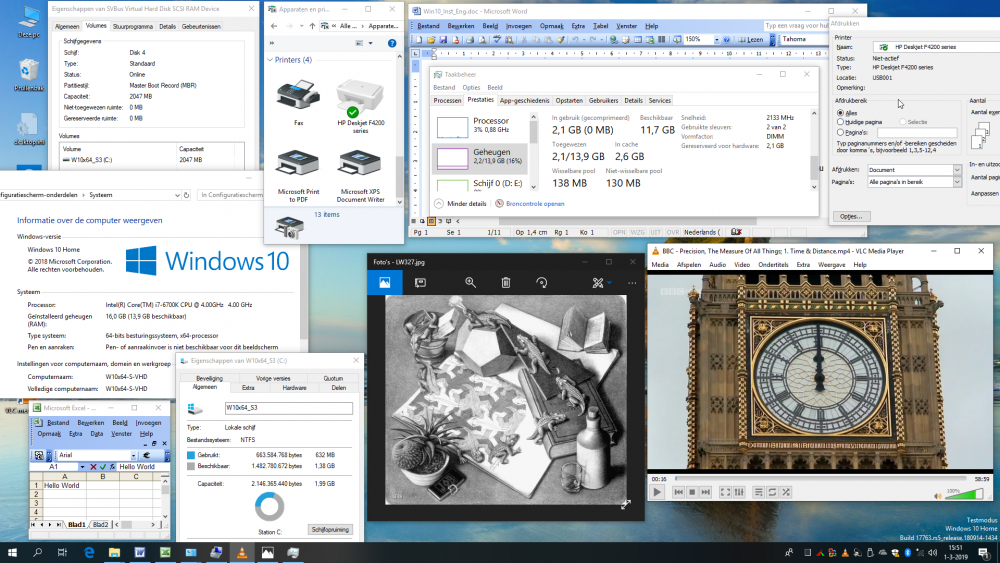

VHD_WIMBOOT-2019-07-14_184345.thumb.png.3425b0511043e29cf9a23eb0c3bc3bfa.png == W10x64-RAM-HelloWorld-2019-03-01_155130.thumb.png.496cc4da7d668bf6a7fccb2e1111ffbb.png

Edited by wimb

Share this post


Link to post
Share on other sites
Posted (edited)

VHD_WIMBOOT - Apply and Capture of WIM Files for OS in VHD

Reserved Space for future use

Download VHD_WIMBOOT See First Post

Manual:  PDF See Second Post


Edited by wimb

Share this post


Link to post
Share on other sites
Posted (edited)

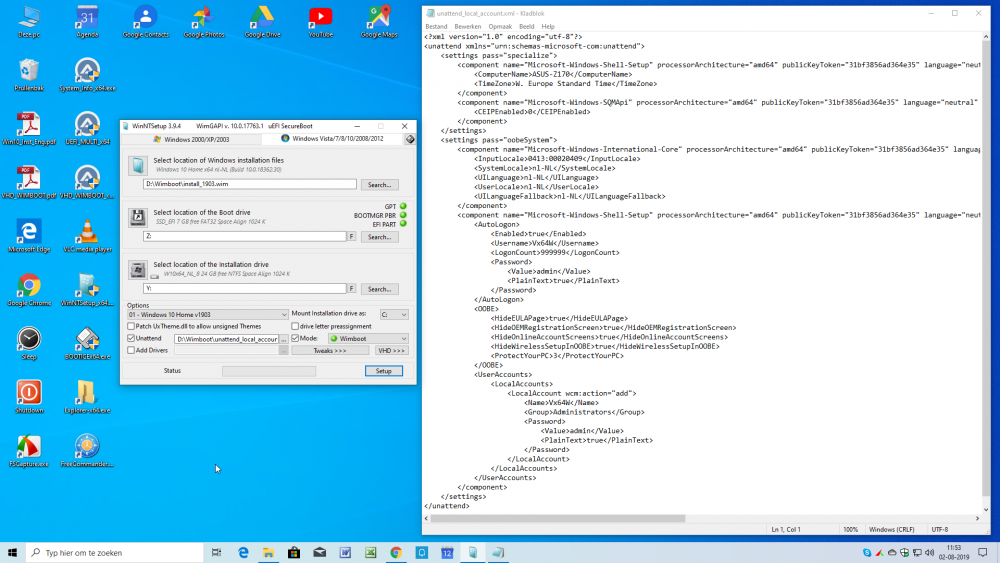

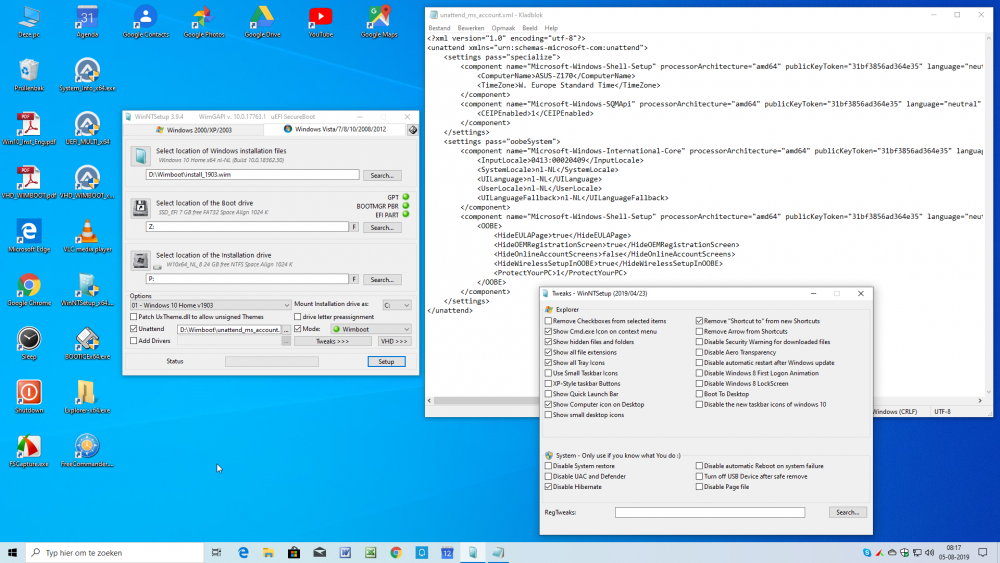

Install Windows 10 Unattended using WinNTSetup

Using an unattend.xml file saves time and you don't need to answer all kind of questions during Install of Windows 10.

In WinNTSetup you can select an unattend.xml file that you can edit using right-click on the checkbox.

The unattend.xml files provided in the Attachment are modified versions as originally given by alacran

- Replace ASUS-PC with your ComputerName
- Replace TimeZone value with your TimeZone
- Replace InputLocale 0409:00020409 of VS International Keyboard with your Language and Keyboard code
- Replace 4x en-US with your Language code

Keyboard and TimeZone - TimeZone - see also Wikipedia

=========================================================================
A. Unattended with Local Account - use unattend_local_account.xml
- Replace Vx64W in Username and Name with your UserName for Local Account
- Password = admin
  This method is completely unattended. After Install of Windows 10 you can switch to MS Account.

  After Install you can switch Settings > Privacy > Diagnostic Feedback to Basic for reduced Telemetry
  After auto Install of all drivers then use Settings >  Update > Windows Update to Search and Install Updates
  This method is working best for Install in VHD to be used for booting from USB Portable SSD on various equipment

=========================================================================
B. Unattended with Microsoft Account - use unattend_ms_account.xml

  During Install give MS Account with e-mailadres and password
  You need to answer 4 questions: PIN code for Logon, Synchronisation, Phone, OneDrive
  After Install you can switch Settings > Privacy > Diagnostic Feedback to Basic for reduced Telemetry

  After auto Install of all drivers then use Settings >  Update > Windows Update to Search and Install Updates
  This method is working best in my experience for Install on your own PC - VHD WIMBOOT is preferred by me

=========================================================================

How does it work ?
In WinNTSetup you select an unattend.xml file e.g. unattend_local_account.xml or unattend_ms_account.xml
WinNTSetup will copy that file as unattend.xml in folder Windows\Panther on the installation drive.
During Install of Windows 10 then file Windows\Panther\unattend.xml  is used to give answers ....

More Info: Windows Unattended Setup Reference - Download PDF

Telemetry is minimized by using the CEIPEnabled = 0 and ProtectYourPC = 3 settiings.
Telemetry is maximized by using the CEIPEnabled = 1 and ProtectYourPC = 1 settiings.



Download:   Unattended_Eng.zip







Edited by wimb
