Mini 10x64 in VHD


Recommended Posts

Mini 10x64 in VHD created with Win_Reduce_Trusted

Download:  Win_Reduce_Trusted-40  and  VHD_WIMBOOT

Download:   Portable VLC x64  vlc-3.0.12-win64.7z  Or  Portable Freeware and Firefox Portable and LibreOffice

Manual:    VHD_WIMBOOT.pdf

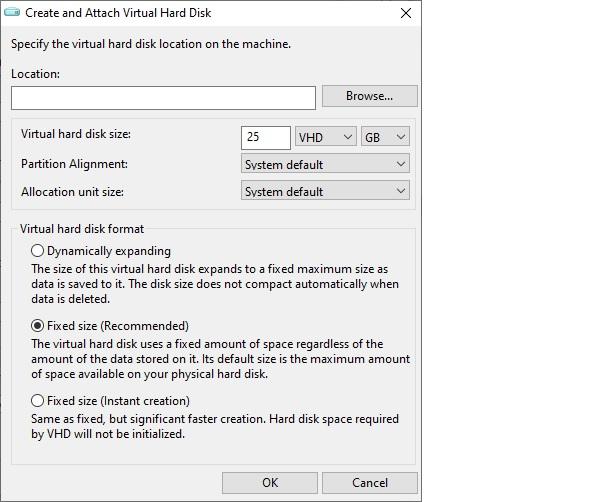

1. WinNTSetup - Fresh Install in 25 GB VHD using Win10x64 ISO from TechBench
2. VHD_WIMBOOT - Capture WimBoot LZX and Apply in Compact LZX mode in VHD
3. Mount VHD with doubble-click and use Win_Reduce_Trusted on Offline Windows
- Reduce in 1 minute gives Mini 10x64 VHD UsedSize = 1.79 GB
- Capture WimBoot LZX WIM = 1.19 GB and Apply Compact LZX in 3.9 GB VHD
4. Boot with 3.9 GB VHD - Always use the supplied Firewall App Blocker and Enable WhiteList to Allow Internet Browser only
- This is the easiest way to block unwanted internet traffic including Windows Update and prevents the growth of Used Size inside VHD

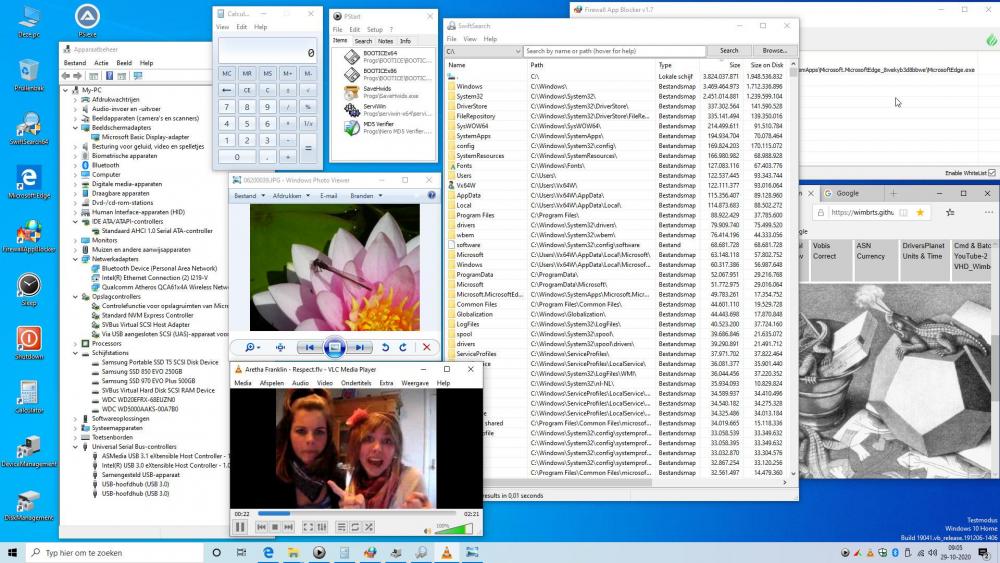

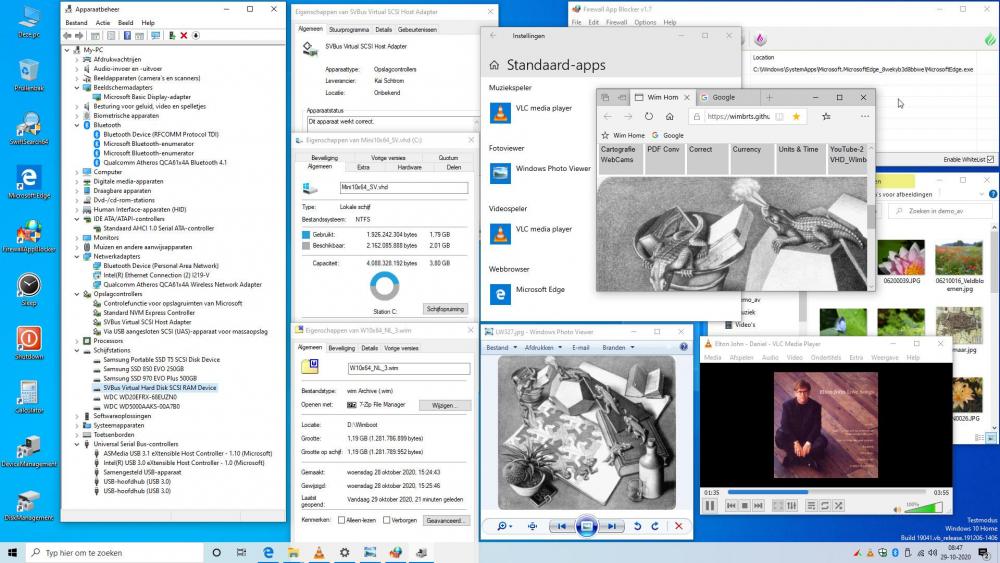

 Win_Red_SV_2020-10-29_084710.thumb.jpg.53bfb61f00515fa8f50abc6419b6cfea.jpg  Win_Red_SV_2020-10-29_090507.thumb.jpg.99a3633a358ede4d06c58160b1724237.jpg



Edited by wimb
Link to comment
Share on other sites

support wimb GitHub

VHD_WIMBOOT - Apply and Capture of WIM Files for OS in VHD

Manual:   VHD_WIMBOOT.pdf

Credits and Thanks to:
- cdob for making the batch program base_winsxs.cmd slightly modified by wimb as base_winsxs_2.cmd
- Nir Sofer for making AdvancedRun (64-bit)
- alacran for sharing SysWOW64 FileList and for sharing his Mini 10x64 File / Folder Lists
- alacran for sharing info on using LibreOfficePortable and making useful Desktop and SendTo Links
  Reducing Win10 and older OSs footprint - http://reboot.pro/index.php?showtopic=22383


Edited by wimb
Link to comment
Share on other sites

  • wimb pinned this topic

Win_Reduce_Trusted-36 is suitable to Reduce Windows 7/8/10 x64

to make Mini 7/8/10 x64 in VHD with UsedSize about 2 GB whch can be used for booting from RAMDISK

Win 7/8 requires to install wofadk.sys driver as done by WinNTSetup using mode Compact:NONE

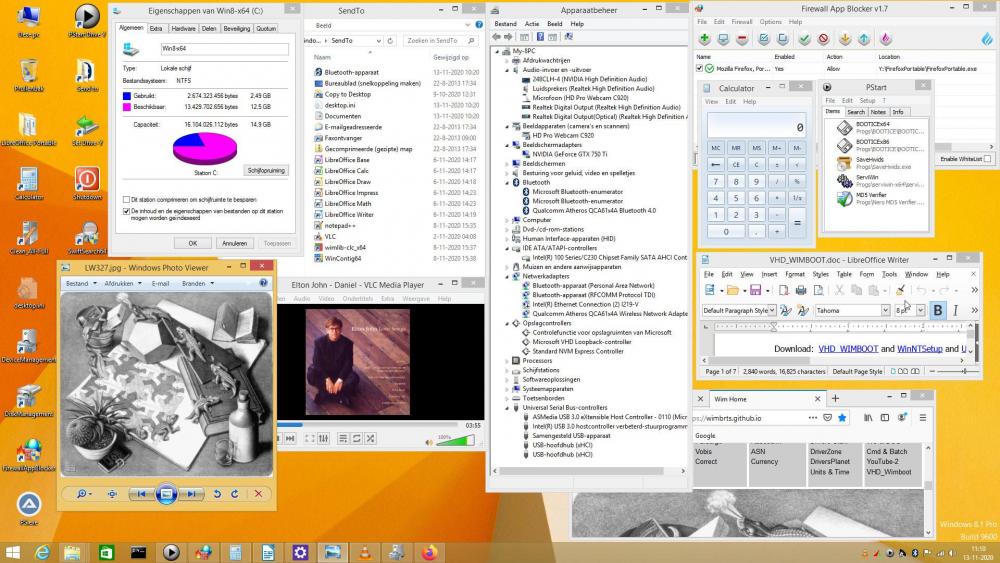

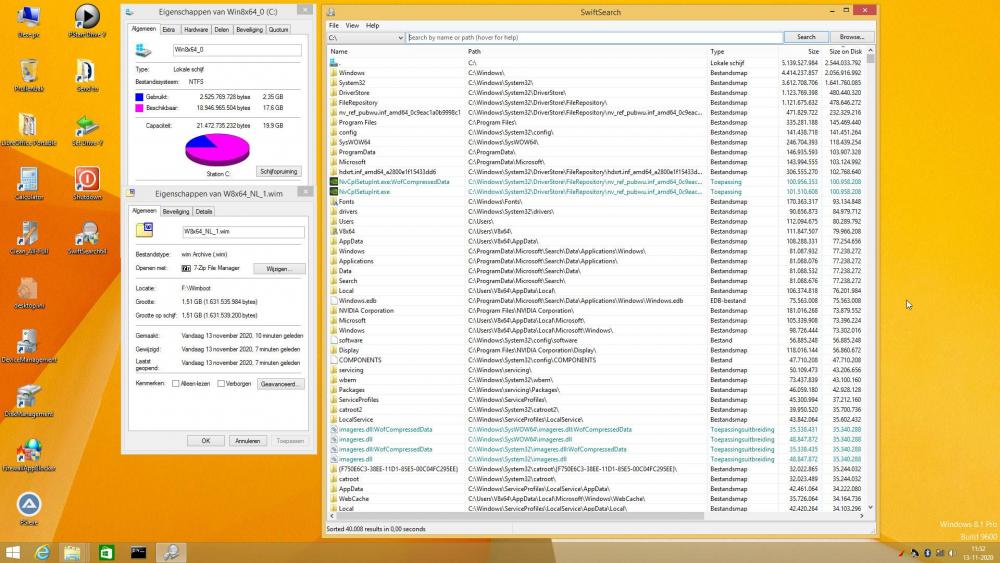

Win_Red_8_2020-11-13_115204.thumb.jpg.3ae24acb16d01879e3e091540abe231d.jpg  Win_Red_8_2020-11-13_111021.thumb.jpg.bdbaaec3c0f50b57750897ccf8c9cc3f.jpg

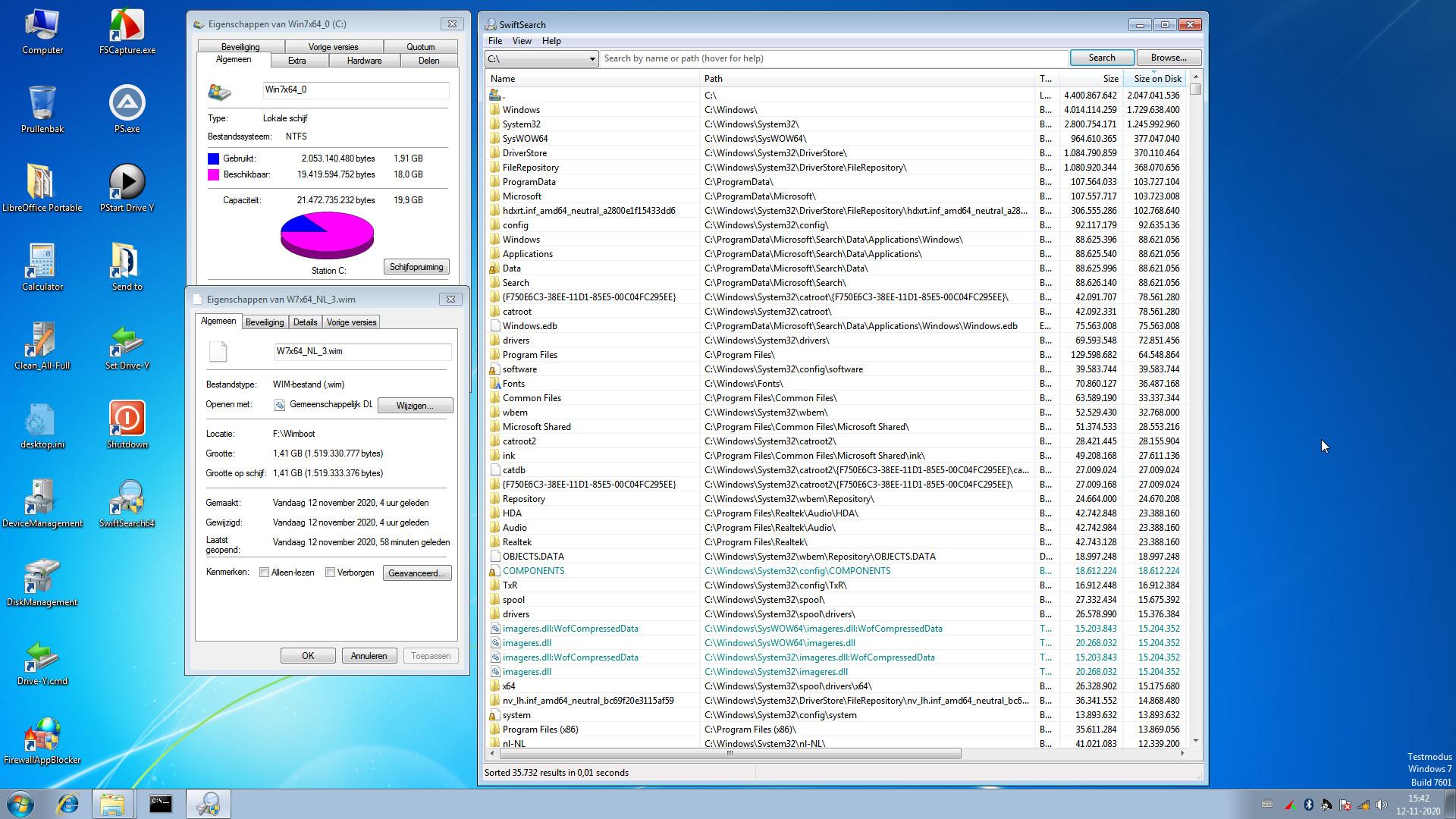

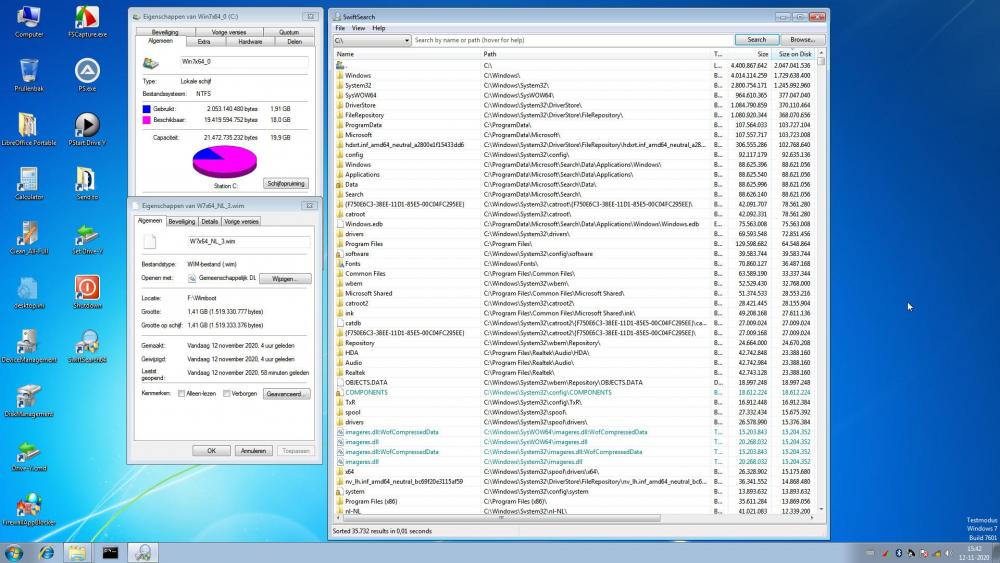

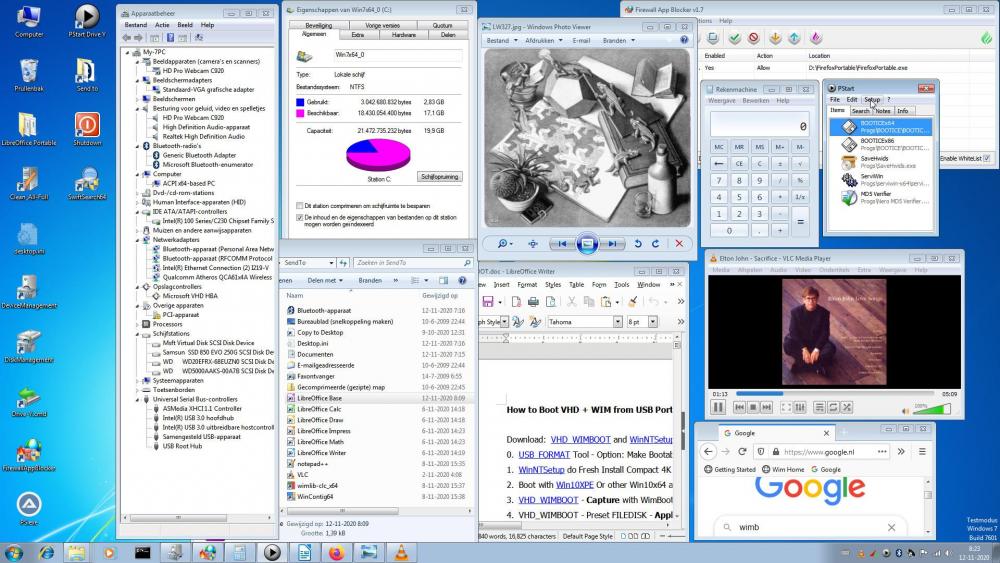

Win_Red_7_2020-11-12_154201.thumb.jpg.9ddd03585d5d8b6f8e54bcc12f20a1c6.jpg  Win_Red_7_2020-11-12_082327.thumb.jpg.41fb9f3c9bbfb31d7766dfcd000f0be9.jpg


Mini_7_USV_2020-11-18_084311.thumb.jpg.ba0c641d597c2a1c0658ff700f207538.jpg  Mini_7_USV_RAM_2020-11-18_090902.thumb.jpg.79193ff1b4a38e15c443be18aa6837ef.jpg

Edited by wimb
Link to comment
Share on other sites

Can you give Screenshot of Win_Reduce_Trusted  and of Windows Explorer showing FileList of mounted VHD Drive in Details View ?

What Windows version Distribution Language do you use ? What is your ISO filename ?

Can you try with English Win10 x64 from TechBench ?

Edited by wimb
Link to comment
Share on other sites

Thanks for the ScreenShots.

Apparently the program fails to find the User_Path.

Please Attach file Win_Reduce_Trusted-33\Win_reduce\Temp_List\Folder_List_Z_Users.txt so that I can see what is the origin of the problem.

Link to comment
Share on other sites

I understand now the mistake that you made: you never installed Windows

After WinNTSetup Setup then you need to Reboot for the Installation of Windows so that also Users\Your_User_Name folder is created.

Strange that you have Selected A: as Boot drive. Is A: the Floppy Disk Drive ?  Select your normal Boot Drive.

Reboot means Shutdown computer and Start computer for Install of Windows in VHD


Link to comment
Share on other sites

You don't have EFI partition since you are booting in MBR mode with \bootmgr and \Boot\BCD

In WinNTSetup use upper-right icon to launch BOOTICE to inspect BCD of current system in Professional mode

There must be at least two boot entries: your Windows and the VHD - Give Screenshot of BOOTICE showing BCD Menu entries

Take care that all menu entries have BootMenuPolicy = Legacy and that Windows Boot Manager Timeout = 30 seconds

Edited by wimb
Link to comment
Share on other sites

9 hours ago, sharicov@gmail.com said:

I have mapped EFI partition as A:

And  yes, you are right, I didn't reboot, couldn't figure out the way to boot from VHD file.

Nowhere in the Manual is stated that you should mount Boot partition as A:

You must not mount Boot partition.

WinNTSetup will auto mount the Boot partition as Z:

WinNTSetup will auto mount created VHD as Drive Y:

Link to comment
