Audio driver for Realtek HD Audio Hardware? [Testing thread]


 Share

Recommended Posts

Thanks. I actually use ERUNT on Windows XP and Windows 10, and have done for years, but I've always relied on Windows 98's own registry backup system.

Anyway, I followed your suggestions, added a MaxPhysPage entry to system.ini to limit the RAM, removed HDATSR.EXE from autoexec.bat, and changed the entries in the [BUSMASTER] section in HDACFG.INI to the ones you specified.

Unfortunately I got the registry access error again.
I reinstated HDATSR.EXE in autoexec.bat, and the system now boots properly, and the sound works!
:thumbup
So, it looks as if HDATSR.EXE is necessary.
I'm very happy with that, but it would be nice to have my 3GB of RAM back again if it's possible!
Cheers, Dave.
:)

Link to comment
Share on other sites


Hmm :dubbio:

This is a strange result, HDATSR.EXE should not be necessary with the trick described above.

Can you please upload HDACFG.INI, so I can take a look what is going on? So your last working version WITH HDATSR.EXE.

Thanks for mentioning ERUNT, I will search for this program for my WIN10 installation. I do no special things on WIN10, but I make periodically a sector-to-sector copy of my WIN10-disk (I gave up using bootmanagers - I use just F11, my BIOS key to select disks. If I experiment with WIN98SE, I even pull out the cable of my WIN10-disk).

Further: which SCANREG-version was active? The MS-DOS or the Windows version?

Link to comment
Share on other sites

I have only ever used the DOS version of SCANREG for recovery purposes.
SCANREGW only does manual backups as far as I can see, and just out of habit I tend to access it through the Tools menu on the System Information program.

Do use ERUNT if you can, it's saved my bacon on many occasions when I've messed up editing the registry!
I have it set to replicate what SCANREG does on Windows 98, that is to say back up the registry on the first boot of every day, and keep a maximum of five backups.

Anyway, I have confirmed that HDATSR is necessary on my system as it is presently configured.
Not loading it results in the registry access error.

I've attached my HDACFG.INI file. I simply commented out the original values in the [BUSMASTER] section, and added your new ones.
Thanks for all your help yet again!
Cheers, Dave.
:)
HDAcfg.ini

Link to comment
Share on other sites

Thanks for info.

About SCANREG/ SCANREGW: if using experimental drivers in my experience it is important to add to MSDOS.SYS the line SystemReg=0

As you can see your new entries are overwritten by the TSR (line 'TSR=TSR Found' in HDACFG.INI !).

So next try higher values of MaxPhysPage (WITH HDATSR.EXE active).

Best start with MaxPhysPage=40000 and then always 10000 higher (10000=256MB), up to 3 x 40000 = C0000 in hex.

Full reboot in between!

Edited by deomsh
Correction
Link to comment
Share on other sites

What does SystemReg=0 in MSDOS.SYS do?

I hadn't noticed that the new entries in HDACFG.INI had been reverted to as they were before!
That may well be because I booted the system with HDATSR.EXE still active by accident the first time after I changed them.
Should I try again with your new settings making sure that HDATSR.EXE doesn't run this time?

I have experimented going up to MaxPhysPage=80000, which gives me 2GB of RAM, and still works as it is.

:)

Link to comment
Share on other sites

If your system is okay with HDATSR.EXE and *some* MaxPhysPage setting, better use these settings together. I vaguely remember RLOEW said *somewhere* that occasionally a high setting of  MaxPhysPage is needed with his memory patch.

Of course you can stop experimenting at MaxPhysPage=80000, but it would of interest to the community to go as high as possible, so around max  C0000

SystemReg=0 disables SCANREG.EXE during Windows' boot. See https://www.mdgx.com/msdos.htm

Link to comment
Share on other sites

Ah right, thanks.
So SystemReg=0 simply stops the registry being scanned on boot. I thought it might stop it being backed up.
I'll have to think about adding that to my MSDOS.SYS as that seems to be recommended.

I will carry on increasing the MaxPhysPage setting to see when it fails.
I'll let you know how high I can go!
:D

Link to comment
Share on other sites

OK, a bit more mystery!

I took the MaxPhysPage entry right up to 11000, which was still fine and gave me 3070MB declared in System Properties.
I then went up to 12000, which was still OK and still gave 3070MB.

So, I guess that's as high as it can go!
Why it is still working now at that level I have no idea, I can only suggest that the problem was actually having no MaxPhysPage entry at all in system.ini, not the level of it.
Anyway, it's working now with my full previous RAM allocation apparently back, so as long as it's stable I don't see that there's anything else to do.
:dubbio:

Link to comment
Share on other sites

It's strange, but if it is working on your system... :thumbup

But 3GB is still C0000, so better use this value for MaxPhysPage. :yes:

Maybe you can found *something* in the documentation of RLOEW's memory patch. :dubbio:

Edited by deomsh
Typo
Link to comment
Share on other sites

5 hours ago, Goodmaneuver said:

Correct me if I am wrong. 40000 hex converted to dec then times 4096 gives 1GB.

No correction needed, you are right. :)

I said earlier: each 10000 MaxPhysPage stands for 256MB Window's memory. I prefer memorizable and usable units

And 3 x 4 x 10000 is C0000 in hex.

One Page = 4KB

https://wiki.preterhuman.net/Specifying_Amount_of_RAM_Available_to_Windows_Using_MaxPhysPage

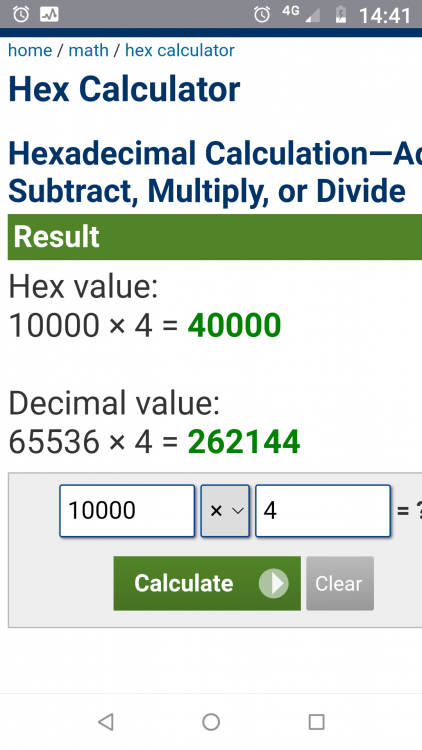

BTW 10000h x 4  =


Edited by deomsh
Correction
Link to comment
Share on other sites

Is it C000 or C0000?
I'm assuming the latter, I guess C000 was the typo?
:dubbio:
Anyway, I'm using MaxPhysPage=C0000 now, and all seems to be fine.
I'll let you know if I have any further issues, thanks very much for all your help with this as always.
Cheers, Dave.
:)
