ambroseg1

Dell Optiplex 320 Windows XP setup Sata Driver

Recommended Posts

So I have a Dell OptiPlex 320. Need to re-install windows XP on it. Old hard drive crashed. So brand new hard drive bought which obviously doesn't include Dell's recovery partition.

Hard drive is SATA. No option in the Bios to run SATA in "compatibility/IDE" mode. So need to install SATA drivers via slipstreaming into the windows installation using NLite.

problem I have, is that not a single driver I could find seems to work. Keep getting the BSOD with the following error:

"STOP: OxOOOOOO7B (OxF7BF2524, OxCOOOOO34, OxOOOOOOOO, OxOOOOOOOO)"

According to google the OptiPlex's SATA driver is a AMD SB600.



Loaded Windows 7 32bit (with zero problems) on the machine to see what CPU-Z says the chipset name is:



Northbridge, ATI RS400/RC400/RC410 Rev01.

Southbridge, ATI SB600 Rev. 00.

Can anybody help? I am officially beat.



Just point me to the correct driver so I can finally install windows XP. Cannot believe I have spent over 50 hours looking for a solution without success.

Share this post


Link to post
Share on other sites

Try this ATI ahci drivers

WinXP.zip

Edited by Tripredacus
added text description for attachment

Share this post


Link to post
Share on other sites

Tried that. Used an OEM Dell Windows XP SP 3 CD. Used NLite to select the single driver in the x86 folder. Selected the x86 driver (gave me a choice of two drivers the other being the x64 driver) and used TextMode to integrate. Same BSOD.



I am really dumbstruck by this. Especially considering the PC was running windows XP before the hard drive crash.

Share this post


Link to post
Share on other sites

Try this



BAD BAD BAD! :angry:



1.c Users should be made aware of what they are getting prior to any download/install package from a Member provided link



It could have been anything. Make sure to specify what an attachment is next time!



@OP, you say you have Windows 7 on there and it is OK. Can you post the HwID of the SATA controller? You can find it in Device Manager, under the properties of the device, Detail tab and a drop down will have Hardware ID. It will look similar to this:



PCI\VEN_1002&DEV_4380&SUBSYS_E0361631

Share this post


Link to post
Share on other sites

Here is some more assistance/help, in addition to what Tripredacus has requested.

http://www.msfn.org/board/topic/135840-integration-of-amd-ati-sb7xx-textmode-raid-ahci-drivers-on-an-xp/

See second post. Fernando seems to do very well at this SATA AHCI/RAID thingie.

What confuses me is that Dell only offers Chipset driver that has the IDE Mode driver inside, generally to be installed *after*(?).

http://www.dell.com/support/home/us/en/19/product-support/product/optiplex-320/drivers

Share this post


Link to post
Share on other sites

@Tripredacus



Why BAD BAD BAD?



In this topic is about SATA drivers not anything else so why need description?





@ambroseq

If won`t work with Nlite, use Driverpack BASE to integrate Driverpack Masstorage.

Edited by condor

Share this post


Link to post
Share on other sites

This is what CPU-Z says about the "IDE Controller"



Description   IDE Controller
Location   bus 0 (0x00), device 20 (0x14), function 1 (0x01)
Common header
 Vendor ID  0x1002
 Model ID  0x438C
 Revision ID  0x00
 PI   0x80
 SubClass  0x01
 BaseClass  0x01
 Cache Line  0x10
 Latency   0x40
 Header   0x00
PCI header
 Address 4 (port) 0x0000FFA0
 Subvendor ID  0x1028
 Subsystem ID  0x01E5
 Int. Line  0x0A
 Int. Pin  0x01
PCI capability
 Caps class  Message Signalled Interrupts
 Caps offset  0x70
PCI registers
  00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
 00 02 10 8C 43 15 01 30 02 00 80 01 01 10 40 00 00
 10 01 00 00 00 01 00 00 00 01 00 00 00 01 00 00 00
 20 A1 FF 00 00 00 00 00 00 00 00 00 00 28 10 E5 01
 30 00 00 00 00 70 00 00 00 00 00 00 00 0A 01 00 00
 40 99 99 00 00 FF FF 00 00 01 01 00 00 00 00 00 00
 50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 60 00 00 40 00 10 2C 01 07 01 00 00 00 FF FF 0F 00
 70 05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 80 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 90 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 A0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 B0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 C0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 D0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 E0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00



Then in Device Manager it says this....



ATA Channel 0

1002-438c
Internal_IDE_Channel



ATA Channel 0 (SATA Hard Drive Connected here)

1002-4380
Internal_IDE_Channel



ATA Channel 1

1002-438c
Internal_IDE_Channel



ATA Channel 1 (SATA DVD Writer Connected here)

1002-4380
Internal_IDE_Channel



Standard Dual Channel PCI IDE Controller Suppose this is the IDE connection

PCI\VEN_1002&DEV_4380&SUBSYS_01E51028&REV_00
PCI\VEN_1002&DEV_4380&SUBSYS_01E51028
PCI\VEN_1002&DEV_4380&CC_01018F
PCI\VEN_1002&DEV_4380&CC_0101



Standard Dual Channel PCI IDE Controller Suppose this is the IDE connection

PCI\VEN_1002&DEV_438C&SUBSYS_01E51028&REV_00
PCI\VEN_1002&DEV_438C&SUBSYS_01E51028
PCI\VEN_1002&DEV_438C&CC_010180
PCI\VEN_1002&DEV_438C&CC_0101

Share this post


Link to post
Share on other sites

@Tripredacus



Why BAD BAD BAD?



In this topic is about SATA drivers not anything else so why need description?





@ambroseq

If won`t work with Nlite, use Driverpack BASE to integrate Driverpack Masstorage.



Have tried slipstreaming the Mass Storage Drivepack via Driverpack Base and that also didn't work. Same BSOD.

Share this post


Link to post
Share on other sites

Here is some more assistance/help, in addition to what Tripredacus has requested.

http://www.msfn.org/board/topic/135840-integration-of-amd-ati-sb7xx-textmode-raid-ahci-drivers-on-an-xp/

See second post. Fernando seems to do very well at this SATA AHCI/RAID thingie.

What confuses me is that Dell only offers Chipset driver that has the IDE Mode driver inside, generally to be installed *after*(?).

http://www.dell.com/support/home/us/en/19/product-support/product/optiplex-320/drivers



Have tried Slipstreaming Fernando's drivers via NLite without success and the exact same BSOD.



And yes, Dell only provide a PNP driver for when windows XP is already installed (suppose nobody at Dell thought that far to first provide the driver to get Windows XP installed to start with). Besides that they are of zero help.

Share this post


Link to post
Share on other sites

DriverPacks XP Mass Storage set has a match for VEN_1002&DEV_4380, which is ahcix86.inf, however the SUBSYS is not found.



There is also one for DEV_438C, which is usable (does not limit with SUBSYS) and is called atihdc2.inf. It would appear there are 2 controllers in this PC and you may have been loading the wrong driver set. Then again, I downloaded these from Driverpacks in 2010.

Share this post


Link to post
Share on other sites

I think your optiplex use this:

AMD SATA Controller(Native IDE Mode)

If you extract optiplex 320 chipset drivers for XP has 2 folder SBMini-IDE and SMBUS.



In SBMini-iDE you can see this info

[Strings]AMD         = "Advanced Micro Devices"SATA_TO_IDE = "AMD SATA Controller(Native IDE Mode)"PCI_IDE     = "AMD PCI IDE Controller"DiskDesc    = "Installation Disk for AMD PCI SATA/IDE Controller"


[ControlFlags]CopyFilesOnly=PCI\VEN_1002&DEV_4380  [Strings]MS                       = "Microsoft"ATI                      = "ATI Technologies Inc"PCI\VEN_1002&DEV_4380.DeviceDesc="ATI SATA Controller IDE mode"DiskId       = "ATI Technologies Inc. Installation DISK (SATA IDE)"

So integrate this attached SATA-native drivers and try again

From Nlite-->Drivers, chose InsertSingle driver and select  ATIide.inf

XP-sata-native.zip

Edited by condor

Share this post


Link to post
Share on other sites

DriverPacks XP Mass Storage set has a match for VEN_1002&DEV_4380, which is ahcix86.inf, however the SUBSYS is not found.



There is also one for DEV_438C, which is usable (does not limit with SUBSYS) and is called atihdc2.inf. It would appear there are 2 controllers in this PC and you may have been loading the wrong driver set. Then again, I downloaded these from Driverpacks in 2010.

If it's not too much trouble, could you upload this driver here so I can download it and try it?







I think your optiplex use this:

AMD SATA Controller(Native IDE Mode)

If you extract optiplex 320 chipset drivers for XP has 2 folder SBMini-IDE and SMBUS.



In SBMini-iDE you can see this info

[Strings]AMD         = "Advanced Micro Devices"SATA_TO_IDE = "AMD SATA Controller(Native IDE Mode)"PCI_IDE     = "AMD PCI IDE Controller"DiskDesc    = "Installation Disk for AMD PCI SATA/IDE Controller"


[ControlFlags]CopyFilesOnly=PCI\VEN_1002&DEV_4380  [Strings]MS                       = "Microsoft"ATI                      = "ATI Technologies Inc"PCI\VEN_1002&DEV_4380.DeviceDesc="ATI SATA Controller IDE mode"DiskId       = "ATI Technologies Inc. Installation DISK (SATA IDE)"

So integrate this attached SATA-native drivers and try again

From Nlite-->Drivers, chose InsertSingle driver and select  ATIide.inf





The ATlide.inf driver is a pnp driver and not a TextMode driver. Would the pnp work for a windows XP install as I thought only TextMode drivers worked??

Share this post


Link to post
Share on other sites

Hmm after some research I think won`t work...

Regular PNP Driver should be used with devices that will be installed during the installation (network, video, sound), Textmode Drivers are loaded before the Windows installation starts, it is the equivalent of pressing F6

LE. Now you have Windows 7 on it?

Edited by condor

Share this post


Link to post
Share on other sites

Hmm after some research I think won`t work...

Regular PNP Driver should be used with devices that will be installed during the installation (network, video, sound), Textmode Drivers are loaded before the Windows installation starts, it is the equivalent of pressing F6

LE. Now you have Windows 7 on it?





Yes sir. Windows 7 32 bit installed with zero problems from USB. Many missing drivers still need to be installed like Video, but it installed and works nonetheless. Just using generic VGA driver for video.

Edited by ambroseg1

Share this post


Link to post
Share on other sites

I am not sir.

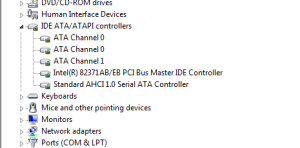

Make a screenshot from Windows 7 like mine from attachment.

You try to install XP from USB or cd-rom?



LE. And on Windows 7, 99% work drivers from Vista.

post-112113-0-94968000-1417686243_thumb.

Edited by condor
