Batch script for imagex error

[yweiss]

Hello,

I'm using this great batch script to capture and apply my image

@echo off
cd /d %~dp0
if not exist "imagex.exe" goto _notexist
goto _main
:_notexist
echo.
echo IMAGEX.EXE executable not found. Please ensure that IMAGEX_APPLY.CMD
echo is in the same folder as IMAGEX.EXE before executing this script.
echo This script will now exit.
echo.
pause
exit

:_main
echo.
echo.
echo.
echo     [I M A G E X     A P P L Y     M A I N     M E N U]
echo.
echo     1) Specify or change source path (the path to you .wim image file)
echo        Source: [%_asource%]
echo.
echo     2) Specify or change target path, where your image will be restored
echo        Target: [%_atarget%]
echo.
echo     3) Specify or change index you want to restore (a number, such as 2)
echo        Index: [%_index%]
echo.
if "%_asource%" == "" goto _menu1
if "%_atarget%" == "" goto _menu1
if "%_index%" == "" goto _menu1
echo     4) Apply your image now where ready
echo        From [%_asource%] To [%_atarget%]
echo.

:_menu1
echo     Q) Quit.    R) Reset all variables.
echo.

:_mainch
set _ok=
set /p _ok=Enter your choice:
if "%_ok%" == "1" goto _getsrc
if "%_ok%" == "2" goto _gettarget
if "%_ok%" == "3" goto _getindex
if "%_ok%" == "4" goto _apply
if /I "%_ok%" == "q" goto _end
if /I "%_ok%" == "r" goto _reset
goto _mainch

:_getsrc
set _ok=
echo.
echo Specify location of source image to restore with full path.
set /p _ok=Enter Source path:
for %%A in (%_ok%) do set _ext=%%~xA
if not exist %_ok% (
        echo.
        echo ---------------------------------------------------------
        echo Path does not exist. Please input a valid location again.
        echo ---------------------------------------------------------
        goto _getsrc
) else (
        if /I "%_ext%"==".wim" (
        set _asource=%_ok%
        setx _asource %_ok%
        goto _main
) else (
        echo.
        echo ---------------------------------------------------------------
        echo Error: The path "%_ok%" does not seem to be a valid .wim image file.
        echo ---------------------------------------------------------------
        goto _getsrc
)
)

:_gettarget
set _ok=
echo.
echo Specify target to install source image with full path.
set /p _ok=Enter Target path:
if exist "%_ok%" (
        set _atarget=%_ok%
        setx _atarget %_ok%
) else (
        echo.
        echo ---------------------------------------------------------------
        echo Error: The path "%_ok%" is not a correct location.
        echo ---------------------------------------------------------------
        goto _gettarget
)

goto _main

:_getindex
set _ok=
echo.
echo Specify image index with a number
set /p _ok=Enter Index number:
set _index=%_ok%
setx _index %_ok%
goto _main

:_apply
echo.
echo.
@echo on
imagex.exe /apply "%_asource%" %_index% "%_atarget%"
@echo off
echo.
pause
goto _end

:_reset
set _asource=
set _index=
set _atarget=
goto _main

:_end

but there is a problem that when i want to choose my .wim file it keep say to me that : Error: The path "%_ok%" does not seem to be a valid .wim image file.

even when i put the correct full path for the wim file

someone can help me with it?

and also i want that after the apply prcess complete the script will run the next command

d:\windows\system32\bcdboot d:\windows

when d: is the drive that the wim file was install to (the hard drive that windows will be in it) so i want that the script will ask for the drive letter or will use one of the variabels from it

10x

Edited November 8, 2011 by yweiss

[Tripredacus]

I hazard a guess that _ext=%%~xA

Which is set during the For above your three outcomes in the IF statement that follows. If that is the case, then it the variable would exist, and not equal .wim, which only allows for the error to appear. I'm not too good at batch so I'll let others check it out.

[Yzöwl]

I've made a couple of minor changes to what you posted, give it a try and post back your findings:

@echo off
pushd %~dp0
if not exist "imagex.exe" goto _notexist

:_main
echo=
echo=
echo=
echo=    [I M A G E X     A P P L Y     M A I N     M E N U]
echo=
echo=    1) Specify or change source path (the path to your .wim image file)
echo=       Source: [%_asource%]
echo=
echo=    2) Specify or change target path, where your image will be restored
echo=       Target: [%_atarget%]
echo=
echo=    3) Specify or change index you want to restore (a number, such as 2)
echo=       Index: [%_index%]
echo=
if "%_asource%"=="" goto _menu1
if "%_atarget%"=="" goto _menu1
if "%_index%"=="" goto _menu1
echo=    4) Apply your image now where ready
echo=       From [%_asource%] To [%_atarget%]
echo=

:_menu1
echo=    Q) Quit.    R) Reset all variables.
echo=

:_mainch
set "_ok="
set /p "_ok=Enter your choice: "
if "%_ok%"=="1" goto _getsrc
if "%_ok%"=="2" goto _gettarget
if "%_ok%"=="3" goto _getindex
if "%_ok%"=="4" goto _apply
if /I "%_ok%"=="q" (popd & goto :eof)
if /I "%_ok%"=="r" goto _reset
goto _mainch

:_getsrc
set _ok=
echo=
echo=Specify location of source image to restore with full path.
set /p "_ok=Enter Source path: "
if not exist "%_ok%" (
        echo.
        echo ---------------------------------------------------------
        echo Path does not exist. Please input a valid location again.
        echo ---------------------------------------------------------
        goto _getsrc
)
for %%A in ("%_ok%") do (
	if /I "%%~xA"==".wim" (
		set "_asource=%_ok%"
		(setx _asource %_ok%)
		goto _main
	) else (
		echo=
		echo=---------------------------------------------------------------
		echo=Error: The path "%_ok%" does not seem to be a valid .wim image file.
		echo=---------------------------------------------------------------
		goto _getsrc
	)
)

:_gettarget
set "_ok="
echo=
echo=Specify target to install source image with full path.
set /p "_ok=Enter Target path: "
if not exist "_ok" (
	echo=
	echo=---------------------------------------------------------------
	echo=Error: The path "%_ok%" is not a correct location.
	echo=---------------------------------------------------------------
	goto _gettarget
)
set "_atarget=%_ok%"
(setx _atarget %_ok%)
goto _main

:_getindex
set "_ok="
echo=
echo=Specify image index with a number
set /p "_ok=Enter Index number: "
set "_index=%_ok%"
(setx _index %_ok%)
goto _main

:_apply
echo=
echo=
@echo on
imagex.exe /apply "%_asource%" %_index% "%_atarget%"
@echo off
echo=
pause
popd
goto :eof

:_reset
set "_asource="
set "_index="
set "_atarget="
goto _main

:_notexist
echo=
echo=IMAGEX.EXE executable not found. Please ensure that %~nx0
echo=is in the same folder as IMAGEX.EXE before executing this script.
echo=This script will now exit.
echo=
pause
popd

Edited November 10, 2011 by Yzöwl
missing closing parentheses added

[gunsmokingman]

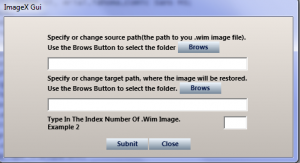

Here try this HTA if you want a GUI to work with.

<!--
 Created By Gunsmokingman Aka Jake1Eye
1:15 PM November-09-11
-->
<TITLE>ImageX Gui</TITLE>
<HTA:APPLICATION ID="ImageX Gui"
  APPLICATIONNAME="ImageXGui"
  Border="Thin"
  BORDERSTYLE ="Complex"
  Caption="Yes"
  INNERBORDER ="No"
  MaximizeButton="No"
  MinimizeButton="No"
  Scroll="No"
  SCROLLFLAT ="No"
  SingleInstance="Yes"
  SysMenu="No"
  WindowState="Normal"/>
<STYLE Type='text/css'>
  Body
   {
    Font-Size:9.25pt;
    Font-Weight:Bold;
    Font-Family:Segoe Ui, Arial,Tahoma,Comic Sans MS;
    Color:Black;
    BackGround-Color:Transparent;
    Filter:progid:DXImageTransform.Microsoft.Gradient
    (StartColorStr='#ece6e0',EndColorStr='#c0bab4');
    Margin-Top:21;
    Margin-Bottom:1;
    Margin-Left:4;
    Margin-Right:4;
    Padding-Top:1;
    Padding-Bottom:1;
    Padding-Left:4;
    Padding-Right:4;
    Text-Align:Center;
    Vertical-Align:Top;
    Border-Top:0px Transparent;
    Border-Bottom:0px Transparent;
    Border-Left:0px Transparent;
    Border-Right:0px Transparent;
   }
  BUTTON
   {
    Cursor:Hand;
    Height:19;
    Width:69;
    Font-Size:8.25pt;
    Font-Weight:Bold;
    Font-Family:Segoe Ui, Arial,Tahoma,Comic Sans MS;
    Color:#001141;
    Text-Align:Center;
    Vertical-Align:Middle;
    Filter:progid:DXImageTransform.Microsoft.Gradient
    (StartColorStr='AliceBlue',endColorStr='LightSlateGray');
    Border-Top:0px Transparent;
    Border-Bottom:0px Transparent;
    Border-Left:0px Transparent;
    Border-Right:0px Transparent;
    Padding-Top:0;
    Padding-Bottom:2;
    Padding-Left:0;
    Padding-Right:0;
    Margin-Top:1;
    Margin-Bottom:1;
    Margin-Left:1;
    Margin-Right:1;
    BackGround-Color:Transparent;
   }
  TABLE
   {
    Font-Size:8.25pt;
    Font-Weight:Bold;
    Font-Family:Segoe Ui, Arial,Tahoma,Comic Sans MS;
    Color:Black;
    Margin-Top:-1;
   }
</STYLE>
<script Language='VBScript'>
Const MY_COMPUTER = &H11&
'-> Resize And Move Window
 Dim Wth :Wth = int(500)
 Dim Hht :Hht = int(275)
   window.ResizeTo Wth, Hht
   MoveTo ((Screen.Width / 2) - (Wth / 2)),((Screen.Height / 2) - (Hht / 2))
'-> Objects For Run Time
 Dim Fso :Set Fso = CreateObject("Scripting.FileSystemObject")
 Dim Shl :Set Shl = CreateObject("Shell.Application")
'-> Varible To Check imagex.exe = True
  Dim ChkImageX
'-> Window On Load Function
   Function Window_onLoad()
    If Fso.FileExists("imagex.exe") Then ChkImageX = True
   End Function
'-> Function To Brows For Folder And Return The Folder Path
   Function FolderPath(MyTxt,Arg)
    Dim Brows
    Set Brows = Shl.BrowseForFolder(0,MyTxt, 0, MY_COMPUTER)
'-> Press The Cancel Button
    If Brows Is Nothing Then
     MsgBox  "User Cancel Process",4128,"User Cancel"
     Exit Function
'-> Press The Ok Button Without Selecting A Folder, Or Root Drive Selected
    ElseIf InStr(1,Brows.Items.Item,"Computer",1) Or _
    Len(Brows.Self.Path) = 3 Then
'-> Ask To ReDo Folder Selection
    If MsgBox("Error Not A Valid Folder Location : " & _
      Brows.Items.Item & vbCrLf & _
     "Would You Like To Continue The Script?",4132, _
     "Continue Or Quit") = 6 Then
     call FolderPath(MyTxt,Arg)
     Else
     Exit Function
     End If
    Else
'-> Process Folder Selection
     Select Case Arg
      Case 1
       TxBox1.value = Brows.Self.Path
      Case 2
       TxBox2.value = Brows.Self.Path
     End Select
    End If
   End Function
'-> Function Submit Information Button
   Function CheckTxBox()
   Dim Chk1, Chk2, Chk3
'-> Check The Textbox For True Or False Values
     If TxBox1.value <> "" And Fso.FolderExists(TxBox1.value) Then
      Chk1 = True
     Else
      Chk1 = False
     End If
     If TxBox2.value <> ""  And Fso.FolderExists(TxBox2.value) Then
      Chk2 = True
     Else
      Chk2 = False
     End If
     If TxBox3.value <> "" And IsNumeric(TxBox3.value) Then
      Chk3 = True
     Else
      Chk3 = False
     End If
'-> Check For Possible Combination True And False
     If Chk1 = True And Chk2 = True And Chk3 = True Then
       If ChkImageX = True Then
        alert("Processing ImageX Information"& vbcrlf & _
        TxBox1.value & vbcrlf & TxBox2.value & vbcrlf & _
        TxBox3.value)
        CreateObject("Wscript.Shell").Run(_
        "imagex.exe /apply " & TxBox1.value & " " & _
        TxBox3.value & " " & TxBox2.value),1,true
       Else
        alert("Error ImageX Missing From Current Directory"& vbcrlf & _
        "Can Not Process ImageX Information" & vbcrlf & _
        TxBox1.value & vbcrlf & TxBox3.value & vbcrlf & _
        TxBox2.value)
       End If
     ElseIf Chk1 = False And Chk2 = True And Chk3 = True Then
      alert("Error Textbox 1, No Values" & vbcrlf & _
            "TextBox 1 = " & TxBox1.value & vbcrlf & _
            "TextBox 3 = " & TxBox3.value & vbcrlf & _
            "TextBox 2 = " & TxBox2.value)
     ElseIf Chk1 = False And Chk2 = False And Chk3 = True Then
      alert("Error Textbox 1, Textbox 2 No Values" & vbcrlf & _
            "TextBox 1 = " & TxBox1.value & vbcrlf & _
            "TextBox 3 = " & TxBox3.value & vbcrlf & _
            "TextBox 2 = " & TxBox2.value)
     ElseIf Chk1 = True And Chk2 = True And Chk3 = False Then
      alert("Error Textbox 3 Empty Or Not A Number" & vbcrlf & _
            "TextBox 1 = " & TxBox1.value & vbcrlf & _
            "TextBox 3 = " & TxBox3.value & vbcrlf & _
            "TextBox 2 = " & TxBox2.value)
    ElseIf Chk1 = True And Chk2 = False And Chk3 = False Then
      alert("Error Textbox 2 No Values, Textbox 3 No Number Or Value" & vbcrlf & _
            "TextBox 1 = " & TxBox1.value & vbcrlf & _
            "TextBox 3 = " & TxBox3.value & vbcrlf & _
            "TextBox 2 = " & TxBox2.value)
    ElseIf Chk1 = False And Chk2 = False And Chk3 = False Then
      alert("Error All 3 Textboxes Have No Values" & vbcrlf & _
            "TextBox 1 = " & TxBox1.value & vbcrlf & _
            "TextBox 3 = " & TxBox3.value & vbcrlf & _
            "TextBox 2 = " & TxBox2.value)
     End If
   End Function
</Script>
<BODY>
<!-- Container For Wim Path, Target Path, Index Start -->
<TABLE Style='Margin-Top:1;'><TD>
<!-- Textbox 1 Area Start -->
 <TABLE><TD Width='337' ID=''>
  Specify or change source path(the path to you .wim image file).
  Use the Brows Button to select the folder
  <BUTTON ID='BtnBrows1'
   OnClick= 'call FolderPath("Select The Source Wim Folder",1)'>
   Brows</BUTTON></TD></TABLE>
 <TABLE><TD><Input Type='text' Size='51' Name='TxBox1'></TD></TABLE>
<!-- Textbox 1 Area End -->
<!-- Textbox 2 Area Start -->
 <TABLE><TD Width='337' ID=''>
   Specify or change target path, where the image will be restored.
   Use the Brows Button to select the folder.
  <BUTTON ID='BtnBrows2'
   OnClick='call FolderPath("Select The Restore Image Folder",2)'>
   Brows</BUTTON></TD></TABLE>
 <TABLE><TD><Input Type='text' Size='51' Name='TxBox2'></TD></TABLE>
<!-- Textbox 2 Area End -->
<!-- Textbox 3 Area Start -->
  <TABLE><TD Width='289'>Type In The Index Number Of .Wim Image.<BR>Example 2</TD>
  <TD><Input Type='text' Size='2' Name='TxBox3'></TD></TABLE>
<!-- Textbox 3 Area End -->
</TD></TABLE>
<!-- Container For Wim Path, Target Path, Index End -->
<!-- Button Container -->
 <TABLE Style='Margin-Top:3;'><TD>
  <BUTTON ID='bSubmit' OnClick='CheckTxBox()'>Subnit</BUTTON>
  <BUTTON ID='bClose' OnClick='window.Close()'>Close</BUTTON>
 </TD></TABLE>
</BODY>

ImageX_Gui.zip

[yweiss]

yozel

the new script you did is not working...

when i try to choose my .wim file the script just close

and when i choose the target folder its keep telling me that the path is invaild (even when i choose exit folder)

can you plz help me??

and if you can help me with the command

d:\windows\system32 bcdboot d:\windows - i want that the script will do this command but before he will ask me where i apllyied the wim file and then it will run from this partition

10x

[mchipser]

Try this..

Attachment has source and compiled versions.

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Outfile=imagexgui.exe
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
;ImagexGUI

$PipeXML = "c:\imagexinfo.xml"

#include <ComboConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <Array.au3>

$ImageX_GUI = GUICreate("ImageX_GUI", 480, 165, 192, 124)
$Label1 = GUICtrlCreateLabel("Specify the WIM you would like to deploy.", 16, 16, 202, 17)
$Button1 = GUICtrlCreateButton("...",215,10,23,23)
$Button2 = GUICtrlCreateButton("Deploy",215,125,50,23)
$Label2 = GUICtrlCreateLabel("", 16, 40, 268, 17)
$Label3 = GUICtrlCreateLabel("Specify the Drive you would like to deploy to.", 16, 64, 216, 17)
$Label5 = GUICtrlCreateLabel("Specify the index of the WIM you would like to deploy.", 16, 88, 260, 17)
$Combo1 = GUICtrlCreateCombo("", 232, 56, 49, 25, BitOR($CBS_DROPDOWN,$CBS_AUTOHSCROLL))
$Combo2 = GUICtrlCreateCombo("", 280, 80, 49, 25, BitOR($CBS_DROPDOWN,$CBS_AUTOHSCROLL))
GUISetState(@SW_SHOW)

$Drives = DriveGetDrive ( "Fixed" )
for $i = 1 to ubound($drives)-1
GuiCtrlSetData($combo1,$drives[$i])
next

While 1
	$nMsg = GUIGetMsg()
	Switch $nMsg
		Case $Button1
			$source = FileOpenDialog("What wim would you like to open?","C:\","WIM(*.WIM)")

			If FileExists ($PipeXML) Then FileDelete ($PipeXML)
			runwait(@comspec & ' /c "C:\Program Files\Windows AIK\Tools\x86\imagex.exe" /info ' & $Source & "> " & $PipeXML, "" ,@SW_HIDE)
			sleep(2000)
			$XMLdata = fileread ($PipeXML)
			$CatalogArray = StringRegExp ($XMLdata , '(?:IMAGE INDEX=")(\d)' , 3)

			for $i = 0 to ubound($CatalogArray)-1
			GuiCtrlSetData($combo2,$CatalogArray[$i])
			Next
			if FileExists($PipeXML) then FileDelete($PipeXML)
			GUICtrlSetData($Label2,$source)

		Case $Button2
			$drive = GUICtrlRead($combo1)
			$index = GUICtrlRead($combo2)
			if $drive = "" or $index = "" Then
				MsgBox(0,"","You have not made all required selections")
				ContinueLoop
			EndIf
			runwait(@comspec & ' /c "C:\Program Files\Windows AIK\Tools\x86\imagex.exe" /apply ' & $source & " " & $index & " " & $drive)
		Case $GUI_EVENT_CLOSE
			Exit

	EndSwitch
WEnd

imagexgui.zip

Edited November 10, 2011 by mchipser

[yweiss]

10x i will check it

but i i think there is problem

C:\Program Files\Windows AIK\Tools\x86\imagex.exe" /apply ' & $source & " " & $index & " " & $drive

i run the script from winpe dvd disk and the imagex is not in this path, it in x:\windows\system32\imagex.exe

so how can i change it?

and i prefare it in batch script

and what about the last command: d:\windows\system32\bcdboot d:\windows

?

Edited November 10, 2011 by yweiss

[mchipser]

try this..

Beggars cant be choosers.. If you want it in a batch file fix the one you posted.

#Region ;**** Directives created by AutoIt3Wrapper_GUI ****
#AutoIt3Wrapper_Outfile=imagexgui.exe
#EndRegion ;**** Directives created by AutoIt3Wrapper_GUI ****
;ImagexGUI

$PipeXML = "c:\imagexinfo.xml"

if not FileExists("imagex.exe") then
	MsgBox(0,"Error!","Imagex is not in the same directory as the script. Please run this from the same directory")
	Exit
EndIf

#include <ComboConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <Array.au3>

$ImageX_GUI = GUICreate("ImageX_GUI", 480, 165, 192, 124)
$Label1 = GUICtrlCreateLabel("Specify the WIM you would like to deploy.", 16, 16, 202, 17)
$Button1 = GUICtrlCreateButton("...",215,10,23,23)
$Button2 = GUICtrlCreateButton("Deploy",215,125,50,23)
$Label2 = GUICtrlCreateLabel("", 16, 40, 268, 17)
$Label3 = GUICtrlCreateLabel("Specify the Drive you would like to deploy to.", 16, 64, 216, 17)
$Label5 = GUICtrlCreateLabel("Specify the index of the WIM you would like to deploy.", 16, 88, 260, 17)
$Combo1 = GUICtrlCreateCombo("", 232, 56, 49, 25, BitOR($CBS_DROPDOWN,$CBS_AUTOHSCROLL))
$Combo2 = GUICtrlCreateCombo("", 280, 80, 49, 25, BitOR($CBS_DROPDOWN,$CBS_AUTOHSCROLL))
GUISetState(@SW_SHOW)

$Drives = DriveGetDrive ( "Fixed" )
for $i = 1 to ubound($drives)-1
GuiCtrlSetData($combo1,$drives[$i])
next

While 1
	$nMsg = GUIGetMsg()
	Switch $nMsg
		Case $Button1
			$source = FileOpenDialog("What wim would you like to open?","C:\","WIM(*.WIM)")

			If FileExists ($PipeXML) Then FileDelete ($PipeXML)
			runwait(@comspec & ' /c "imagex.exe" /info ' & $Source & "> " & $PipeXML, "" ,@SW_HIDE)
			sleep(2000)
			$XMLdata = fileread ($PipeXML)
			$CatalogArray = StringRegExp ($XMLdata , '(?:IMAGE INDEX=")(\d)' , 3)

			for $i = 0 to ubound($CatalogArray)-1
			GuiCtrlSetData($combo2,$CatalogArray[$i])
			Next
			if FileExists($PipeXML) then FileDelete($PipeXML)
			GUICtrlSetData($Label2,$source)

		Case $Button2
			$drive = GUICtrlRead($combo1)
			$index = GUICtrlRead($combo2)
			if $drive = "" or $index = "" Then
				MsgBox(0,"","You have not made all required selections")
				ContinueLoop
			EndIf
			runwait(@comspec & ' /c "imagex.exe" /apply ' & $source & " " & $index & " " & $drive)
			runwait(@comspec & ' /c ' & $drive & "\windows\system32\bcdboot " & $drive & "\windows")
		Case $GUI_EVENT_CLOSE
			Exit

	EndSwitch
WEnd

imagexgui.zip

[yweiss]

Thank you very much for your help!

can you do this script also in vbs with the same GUI? plz

@echo off
cd /d %~dp0
if not exist "imagex.exe" goto _notexist
goto _main

:_notexist
echo.
echo IMAGEX.EXE executable not found. Please ensure that imagex_capture.cmd
echo is in the same folder as IMAGEX.EXE before executing this script.
echo This script will now exit.
echo.
pause
exit

:_main
if exist "%_ctarget%" set _append=yes
if not exist "%_ctarget%" set _append=no
if /i "%_append%"=="yes" set function=Append
if /i "%_append%"=="no" set function=Capture
echo.
echo.
echo    [I M A G E X   C A P T U R E / A P P E N D   M A I N   M E N U]
echo.
echo    1) Specify or change source path, the path you want to capture (e.g. C:\)
echo       Source: [%_csource%]
echo.
echo    2) Specify or change target image to create/append (e.g. d:\myimage.wim)
if "%_append%"=="yes" echo       *Image will be appended unless you specify a non-existing image file.*
echo       Target: [%_ctarget%]
echo.
echo    3) Specify or change unique description of your image (e.g. Vista Backup)
echo       Description: [%_descript%]
echo.
echo    4) Specify or change FLAG of your image (e.g. ULTIMATE)
echo       FLAG: [%_FLAG%]
echo.
echo    5) Specify or change compression type (MAXIMU, FAST, NONE)
echo       Compression: [%_compr%]
echo.
if "%_csource%" == "" goto _menu1
if "%_ctarget%" == "" goto _menu1
if "%_descript%" == "" goto _menu1
if "%_append%" == "yes" goto _skipcapture
if "%_FLAG%" == "" goto _menu1
if "%_compr%" == "" goto _menu1
:_skipcapture
echo    6) %function% your image now when ready
echo       From [%_csource%] To [%_ctarget%]
echo.

:_menu1
echo    Q) Quit.  R) Reset all variables
echo.

:_mainch
set _ok=
set /p _ok=Enter your choice:
if "%_ok%" == "1" goto _getsrc
if "%_ok%" == "2" goto _gettarget
if "%_ok%" == "3" goto _getdescript
if "%_ok%" == "4" goto _getFLAG
if "%_ok%" == "5" goto _getcompr
if "%_ok%" == "6" goto _capture
if /I "%_ok%" == "q" goto _end
if /I "%_ok%" == "r" goto _reset
goto _mainch


:_getsrc
set _ok=
echo.
echo Specify location of source to capture as a .wim image.
echo Usually, this would be the root of a drive, such as C:\.
echo.
set /p _ok=Enter Source path:
if exist "%_ok%" (
        setx _csource %_ok%
        set _csource=%_ok%
) else (
        echo.
        echo ---------------------------------------
        echo Error: The path "%_ok%" does not exist.
        echo ---------------------------------------
        goto _getsrc
)

goto _main

:_gettarget
set _ok=
echo.
echo Specify path and filename to store the target image, such as D:\image.wim.
echo.
set /p _ok=Enter Target image path:
for %%A in (%_ok%) do set _ext=%%~xA && set _path=%%~dpA
if /I not "%_ext%"==".wim " (
        echo.
        echo -----------------------------------------------------
        echo Error: The filename entered is not a valid .wim file.
        echo -----------------------------------------------------
        goto _gettarget
) else (
        if exist %_ok% (
        set _ctarget=%_ok%
        setx _ctarget %_ok%
        set _append=yes
        setx _append yes
        goto _main
) else (
        if not exist %_path% (
        echo.
        echo -----------------------------------------------------
        echo Path does not exist. Please input a valid path again.
        echo -----------------------------------------------------
        goto _gettarget
  ) else (
        setx _ctarget %_ok%
        set _ctarget=%_ok%
        set _append=no
        setx _append no
        goto _main
  )
)
)

:_getcompr
set comp =
echo.
echo Please select compression type.
echo.
echo    1 for MAXIMUM
echo    2 for FAST
echo    3 for NONE
echo.
set /p type=Enter compression type:
if %type%==1 set _compr=MAXIMUM&& setx _compr MAXIMUM
if %type%==2 set _compr=FAST&& setx _compr FAST
if %type%==3 set _compr=NONE&& setx _compr NONE

goto _main

:_getFLAG
set _ok=
echo.
echo Specify image FLAG (without quotes).
echo.
set /p _ok=Enter FLAG:
set _FLAG=%_ok%
setx _FLAG %_ok%

goto _main

:_getdescript
set _ok=
echo.
echo Type description of image (without quotes).
echo.
set /p _ok=Enter description:
set _descript=%_ok%
setx _descript "%_ok%"
goto _main

:_capture
echo.
if "%_append%"=="yes" goto _appendimage
echo Ready to capture image from source %_csource% and store image to file
echo %_ctarget% using compression type %_compr%.
echo.
pause
echo.
@echo on
imagex.exe /capture "%_csource%" "%_ctarget%" "%_FLAG%" "%_descript%" /COMPRESS %_compr%
@echo off
pause
goto _end

:_appendimage
echo.
echo Ready to append image from source %_csource% and store image to file
echo %_ctarget%.
echo.
pause
echo.
@echo on
imagex.exe /append "%_csource%" "%_ctarget%" "%_descript%"
@echo off
pause
echo.
goto _end

:_reset
set _csource=
set _ctarget=
set _descript=
set _compr=
set _FLAG=
set _append=
goto _main

:_end

10x a lot man

[Yzöwl]

Your exiting file suggested that there was likely a missing 'closing bracket', I took a quick look and noticed it almost immediately.

It has now been fixed, please re-copy/paste it!

Please also bear in mind that the file you posted, and the newer one, is not very well designed/structured. For instance, just because something has a .wim extension doesn't make it a valid wim image, but your script is validating only by extension.

[mchipser]

Your exiting file suggested that there was likely a missing 'closing bracket', I took a quick look and noticed it almost immediately.

It has now been fixed, please re-copy/paste it!

Please also bear in mind that the file you posted, and the newer one, is not very well designed/structured. For instance, just because something has a .wim extension doesn't make it a valid wim image, but your script is validating only by extension.

What command can you use to verify it is a valid wim? /check?

When we pull our images to our NAS it automatically adds the /verify switch.. Is this enough? Should we add a /check when we push these images back?

[Tripredacus]

Well Imagex will know for sure if it is a WIM file. However you'd want to put in that check only to make sure it is a valid WIM file before having Imagex deploy it and save yourself an error. To do a real check you'll need to make some DLL calls, but most people just use Gimagex component for this rather than figuring it out from scratch.

[yweiss]

Hello again

someone can help me to make the batch script for capture the .wim file to a Autiit GUI ?

and also GUI with buttons that if i press on it it will start the aimagex_gui.exe apply and the imagex_gui_compress.exe ?

10x a lot!!

[iamtheky]

the batch script for capture the .wim file to a Autiit GUI

Assuming you have autoit and Scite already downloaded: I would recommend copying chipsers script and going line by line hitting F1 until you understand what its doing. If you have questions about anything in particular I am sure you will get plenty of help (but I am very cynical and beginning to think you did not write nor completely understand the batch in the original post as you keep asking for the same thing in different forms like it matters).

Edited November 12, 2011 by iamtheky

[Ponch]

beginning to think you did not write nor completely understand the batch in the original post

"Using this great batch script" usually means you're thankfull to the one who wrote it.
