Updated drivers for Windows XP SP3 and Windows 2003 SP2 (x32/x64) for modern hardware

[Dietmar]

@reboot12

It is this extracted

Dietmar

https://www.upload.ee/files/19141261/mioo.txt.html

[Dietmar]

@reboot12

0x26737         Suppress If {0A 82}
0x26739             QuestionId: 0x8 equals value 0x1 {12 06 08 00 01 00}
0x2673F             Subtitle: Statement.Prompt: , Flags: 0x0 {02 87 02 00 00 00 00}
0x26746             End {29 02}
0x26748             One Of: Setup Item Hidden, VarStoreInfo (VarOffset/VarName): 0x132F, VarStore: 0x1, QuestionId: 0x8, Size: 1, Min: 0x0, Max 0x1, Step: 0x0 {05 91 72 18 73 18 08 00 01 00 2F 13 10 10 00 01 00}
0x26759                 One Of Option: Enabled, Value (8 bit): 0x1 (default) {09 07 03 00 30 00 01}
0x26760                 One Of Option: Disabled, Value (8 bit): 0x0 {09 07 04 00 00 00 00}
0x26767             End One Of {29 02}

[Dietmar]

@reboot12

yessa I found this Bit and change via ru.efi in

Uefi  Variable Setup      Offset 132F

1 ==> 0

and store via CTRL w .

Now a lot more I can see in Bios

Dietmar

Edited March 8 by Dietmar

[reboot12]

@Dietmar

Yea, in your bios Setup Item Hidden offset is 0x132F

Now you possible Disable ME State ?



Edited March 8 by reboot12

[reboot12]

49 minutes ago, Dietmar said:

I get only a 16MB Bios flash

Your mobo has 16 MB flash size ? Mine has 32 MB. To backup full bios use Intel FPT e.g efi version in UEFI Shell from CSME System Tools v12 r38.rar:
https://mega.nz/folder/qdVAyDSB#FLCPaDVIsPYiy2TAUjD7RQ

fpt -d dump.bin
fpt -verify dump.bin

I dump also using SPI port and CH341A programmer:

Edited March 8 by reboot12

[Dietmar]

@reboot12

Yes, this is a really nice board, that you can dump whole Bios without a lot of cables!



[Dietmar]

@reboot12

Thanks for the tools!!!

No, my Bios has also 32MB.

But this Bios reader from David China reads only 16MB (maximum Bios size) out.

But I still use this bios reader, because it works on ALL Bios, just a lot wrong but nice for to catch information in seconds

Dietmar

[Dietmar]

@reboot12

Do you know, if there is a HII enable switch in Bios

Dietmar

[Dietmar]

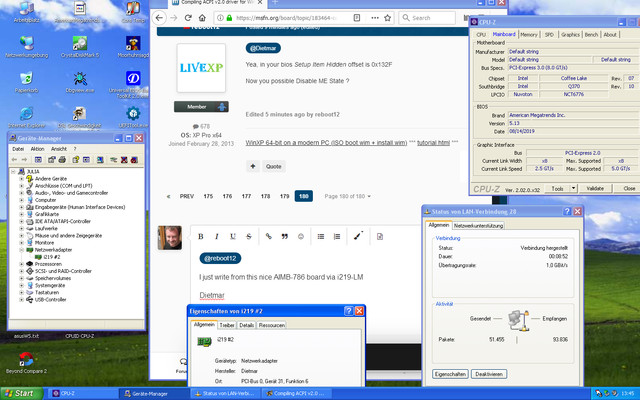

@reboot12

Oh..soso much fun:

My very last driver for i219 from yesterday night, where I try to hack ME via driver, now works also,

because nothing to hack and ME shuts up

Dietmar

[reboot12]

@Dietmar

F..k i219 card stop working on both WinXP 32-bit and 64-bit - network cable unplugged - I don't know what happened?

[Dietmar]

@reboot12

I just put lan cable out, in, out,in all works for me ok for the driver V1 withmoreinf

Dietmar



Dietmar

[reboot12]

2 minutes ago, Dietmar said:

I just put lan cable out, in, out,in

No, this not help.

I must have accidentally changed something in the BIOS when I was checking the RU.efi and other tools. Now I have reset the CMOS and set everything again, hidden options, disabling ME state

and....

Works back - Ufffffff....



[reboot12]

41 minutes ago, Dietmar said:

No, my Bios has also 32MB.

But this Bios reader from David China reads only 16MB (maximum Bios size) out.

You probably not read previously edited post on forum:

https://msfn.org/board/topic/183464-compiling-acpi-v20-driver-for-windows-xp-sp3-and-windows-2003-sp2-x32x64/page/180/#findComment-1286092

[K4sum1]

How are you disabling ME? All I know of that can disable ME is this, yet you seem to have a BIOS option for it?

https://github.com/corna/me_cleaner

Edit: This one would work with your board as far as I can tell, the original one is too old. https://github.com/XutaxKamay/me_cleaner

Edited March 8 by K4sum1

[reboot12]

@Dietmar

This is how to make a 32 MB BIOS copy:

And your BIOS is probably old - 08/14/2019 (https://ibb.co/vxZzQfDQ)

I have 07/20/2022 -

Edited March 8 by reboot12
