Can't access repair my PC option via F8 startup

NUTTER123

By NUTTER123
in Windows Vista

 Share

Recommended Posts

jaclaz

jaclaz

Posted
Posted (edited)

It's not very clear (to me at least) what are the actual problem/questions.

I can give you for sure that the partition table on that drive looks like having been manually made by someone extracting Bingo numbers (or using several sets of dices) instead of rationally and logically putting together senceful numbers.

Some more BAD news :( for you, most of what you think to know is either inaccurate, or incomplete or plainly wrong :ph34r:

I grew up with DOS, then came win95, which is based on DOS. There the boot-up is simple (works or don´t works) and the boot menu was in Config.sys and Autoexec.bat :) But now, with windows Vista, which is preinstalled on this laptop, its a little bit more complex. I am really interessted in understanding the boot-process. the followings things i THINK TO KNOW:

- @Windows XP there is alittle partition about 8 MB which is nessecary for booting

- @Windows XP NTLDR is the boot-loader. This file is placed at the first sector

- The MBR contains the partitiontable, the boot-loader and some unimortant things like signatures and is 512 bytes (the first sector)!

- @Vista the BOOTMGR is the boot-loader. This file is placed at the first sector! But Windows says, that it is about 333,xxx bytes

Namely:

  • there is NO "need" (and I actually never seen) "a little partition about 8 Mb needed for booting".
  • the first sector of a partition is the PBR or bootrecord there is NO need for NTLDR to be anywhere specifically in the filesystem (though some versions may need to be in the first 8 Gb ( maybe you are mistaking with DOS before version 7.x, where IO.SYS had to be first file in the partition :unsure:)
  • the booting of a NT/2K/XP/2003 happens with THREE (or in some now rare cases four) files:
    1. NTLDR <. the actual bootloader
    2. BOOT.INI <- the configuration file for the bootloader, a simple text file
    3. NTDETECT:COM <- the detector of hardware that loads necessary drivers in protected mode
    4. NTBOOTDD.SYS <- optional Mass Storage device for SCSI drives (or however for drive cards with extension ROM)

    [*]The MBR contains the IPL CODE, the partition table DATA and the Disk Signature (and NOTHING else), the IPL code laods the bootsector of the Active (boot) partition)

    [*]then there are normally (not in your queer partitioning :ph34r: ) 62 empty sectors, so-called hidden sectors - these on "unpatched Vista/7/2008 become 2047 - for alignement to 4 Kb size - default now

    [*]then there is the bootsector or PBR of first partition (which starts at the first sector of the partition, and may be - depending on filesystem - one or more sectors long

    [*]The booting of Vista :ph34r:/7/Server 2008 happens with THREE files:

    1. BOOTMGR <- the actual bootloader
    2. \boot\BCD <- the configuration file for BOTOMGR, a binary file using the same format of a Registry Hive
    3. WINLOAD.EXE <- the actual OS loader

You may want to spend some time on this:

http://web.archive.org/web/20070608224106/http://www.ranish.com/part/primer.htm

and this:

http://thestarman.pcministry.com/asm/mbr/index.html

and this:

http://www.multibooters.co.uk/

in order to update and "fix" what you think you know.

Then, you may come back here and try explaining better the problem/issue you are currently having. :)

Or is the problem just that you have now a "standard" MBR instead of the original Fujitsu-Siemens one?

Just as was discussed for the Dell of the OP, it is very possible that the Fujitsu Siemens uses a "peculiar" MBR CODE.

Which EXACT model is that? (maybe with the model we can find the iutility that contains the "custom" MBR).

The fact that it has a WINRE partition should however mean that the setup is not very different from this one:

http://www.goodells.net/dellrestore/vista.htm

(and the F8 has nothing to do with the MBR)

This is the "normal" way to create a WinRE environment on HD:

http://www.svrops.com/svrops/articles/winvistare.htm

http://blogs.msdn.com/b/winre/archive/2007/01/12/how-to-install-winre-on-the-hard-disk.aspx

jaclaz

Edited by jaclaz

Tripredacus

Tripredacus

Posted
Posted

there is NO "need" (and I actually never seen) "a little partition about 8 Mb needed for booting".

Finally, something I learned in college I can apply in real life! ;)

I have seen ONE operating system that required a small partition (like 8MB perhaps) in order to boot. That is because said operating system wasn't an operating system at all, it is a shell. You know it, Novell sold NetWare Server 4 (and lower) as an "Operating System" but actually the setup required you to create two partitions. One very small partition (maybe 8MB if you like) where you install... DOS! Then of course you install NetWare in the second, larger partition. PC would boot, load up DOS, launch a program that started NetWare up. This was true for Netware 3 to 4.1, not sure about 4.11. Refs:

http://en.wikipedia.org/wiki/Novell_NetWare#Strategic_mistakes

http://www.myboogpages.com/2009/02/installing-netware-41-on-vmware.html

jaclaz

jaclaz

Posted
Posted

[i have seen ONE operating system that required a small partition (like 8MB perhaps) in order to boot.

Sure :) , we were talking of Windows XP, though. :whistle:

jaclaz

Schiiwa

Schiiwa

Posted
Posted (edited)

When i was partitioning with xp the full amount on XP, there was another 8MB partition.. Maybe it was unallocated 8MB... but there where always 2 lines. but not 100% sure

It's not very clear (to me at least) what are the actual problem/questions.

Actual Problem:

Before installing Vista from DVD

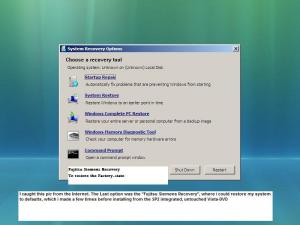

When i chose "repair computer", the normal recovery-menu (like when booting Vista DVD and choosing "REPAIR COMPUTER") came up, but at the bottom, another option

was "Fujitsu Recovery Tool", where i could write the image (i guess *.WIM-image) to the "C: SYSTEM" Partition!

After installing Vista from DVD

- The Option "REPAIR COMPUTER" isn´t available at the boot-menu any more, in which u get when pressing frequently F8

(and the F8 has nothing to do with the MBR)

...

\boot\BCD <- the configuration file for BOTOMGR, a binary file using the same format of a Registry Hive

...

The MBR contains the IPL CODE, the partition table DATA and the Disk Signature (and NOTHING else), the IPL code laods the bootsector of the Active (boot) partition)

That would stand for

- that the file "\boot\bcd" has to be edit

- that the MBR is in factory-state (because u said the mbr has nothing to do with the F8-Options and i didn´t change the MBR manually)

-----> that why i wrote, that i think it has done with BCDedit ... but don´t know the syntax ;) even don´t if this is the solution

- I want to know, how to restore this option to understand the Vista-boot-process (where did the "REPAIR COMPUTER"-option took his information? From another Partition?

Which EXACT model is that? (maybe with the model we can find the iutility that contains the "custom" MBR).

The Problem-Laptop of my girlfriend:

- "SIEMENS FUJITSU COMPUTERS AMILO PI1505"

- Vista is currently running

Just as was discussed for the Dell of the OP, it is very possible that the Fujitsu Siemens uses a "peculiar" MBR CODE.

Which EXACT model is that? (maybe with the model we can find the iutility that contains the "custom" MBR).

Don´t want to restore Dell´s MBR, before beeing sure its working. Or can u tell me a Windows-based programm to backup and restore currently MBR? But however I would be worried about using Dell´s tool, because would be possible to apply some more changes! ---> REMEMBER: The Vista SP2, I installed from DVD, runs fine!

I can give you for sure that the partition table on that drive looks like having been manually made by someone extracting Bingo numbers (or using several sets of dices) instead of rationally and logically putting together senceful numbers.

- Nobody changed somethin @ the partitions (That boched FSC!!!) --> thats why I never would by a siemens because of such problems (remember: After recovery no SP working)

You´re right, i should spend some time on your posted threads...after i posted my 1st post, i already was on this site: http://www.multibooters.co.uk/

i just read a post in another forum, maybe this would work

Backup the RUNNING C: partition to a DVD (JUST FOR ME FOR RESTORING MANUALLY)

simply copy the wim-file to "d: data")

Boot from the Vista DVD

Go to repair my windows

Click continue or next

Then go to DOS prompt..

At the DOS prompt. type:

E: (or whatever your DVD drive shows up as)

cd tools

imagex /apply d:\blahblah.wim 1 c:\

You will see the prosess start, wait until it finishes.. and the program will return (success)

Type:

EXIT (to close the DOS window.)

Press:

repair startup

and continue until it finishes

The PC will reboot

but i don´t like this solution. I want to have the recovery option "REPAIR COMPUTER" at the present installation of Vista SP2, that my girlfriend can recover from the original WinRE partition (in case she isn´t my girlfriend anymore :).

If i managed this, i will do a complete RAW-Image of the complete HDD.

Then i will partition the HDD senceful and not as u said:

I can give you for sure that the partition table on that drive looks like having been manually made by someone extracting Bingo numbers (or using several sets of dices) instead of rationally and logically putting together senceful numbers.

Edited by Schiiwa
Schiiwa

Schiiwa

Posted
Posted

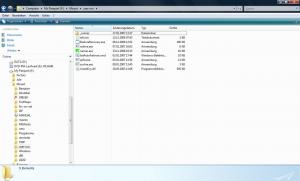

Here you can see the content of my WinRE partition

in the root there are 3 files, which could be important, but don´t know, if i can simply copy for example BCD to my System-partition

\Boot\Boot.sdi is also there

Additional:

Boot.wim is located In \sources and about 178 MB

Factory.wim is located in \Factory and about 3 GB

In \$#repair there are 2 cmd-scripts:

SetAutoFailover.cmd

$#setWinRE.cmd

Content:

$#setWinRE.cmd

call SetAutoFailover.cmd /target %1 /Wim /Disk %2 /mainos {current}

:whistle: I think to know :whistle: some parts of the important things of

SetAutoFailover.cmd are:

...

REM

REM Create WinRE boot entry

REM

%BCDEDIT% -create %WINPE_GUID% -d "Windows Recovery Environment" -application OSLOADER

%BCDEDIT% -set %WINPE_GUID% device partition=%DRIVE%

%BCDEDIT% -set %WINPE_GUID% path %WINRE_ROOT_DIR%\windows\system32\boot\winload.exe

%BCDEDIT% -set %WINPE_GUID% osdevice partition=%DRIVE%

%BCDEDIT% -set %WINPE_GUID% systemroot %WINRE_ROOT_DIR%\windows

%BCDEDIT% -set %WINPE_GUID% detecthal yes

%BCDEDIT% -set %WINPE_GUID% nx optin

%BCDEDIT% -set %WINPE_GUID% winpe yes

...

REM

REM Mark this installation as the recovery OS. This recovery OS identifier

REM will be used by other components to enable/disable auto recovery.

REM

%BCDEDIT% -set %WINPE_GUID% custom:46000010 yes

REM

REM Set the recovery sequence

REM

%BCDEDIT% -set %MAINOS% recoverysequence %WINPE_GUID%

%BCDEDIT% -set %MAINOS% recoveryenabled yes

I Attached the complete script :ph34r:

Greetings... Chris

SetAutoFailover.cmd

jaclaz

jaclaz

Posted
Posted

Sure :), the Setupfailover.cmd is the script normally used to add the WINRE partition option to the BCD, this is why I posted these:

http://www.svrops.com/svrops/articles/winvistare.htm

http://blogs.msdn.com/b/winre/archive/2007/01/12/how-to-install-winre-on-the-hard-disk.aspx

if you read them you should be able to understand the usage of the script and/or (if needed) modify it to suit your needs.

jaclaz

  • 4 weeks later...
Schiiwa

Schiiwa

Posted
Posted

Sure :), the Setupfailover.cmd is the script normally used to add the WINRE partition option to the BCD, this is why I posted these:

http://www.svrops.com/svrops/articles/winvistare.htm

http://blogs.msdn.com/b/winre/archive/2007/01/12/how-to-install-winre-on-the-hard-disk.aspx

if you read them you should be able to understand the usage of the script and/or (if needed) modify it to suit your needs.

jaclaz

I need a little bit more help:

From the SETAUTOFAILOVER.CMD:

echo /target (drive where WinRE is installed) [required]

echo The drive where WinRE is installed w/o the trailing backslash,

echo e.g., C:

echo.

WHICH DRIVE? Where it has been installed? The recovery-destination? The recovery-source, which has no Drive-Name in my case!? :realmad:

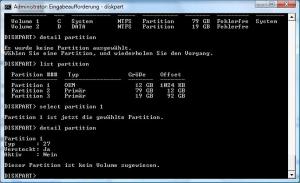

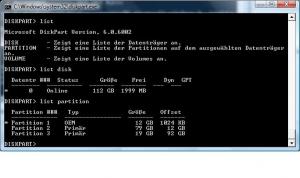

My WinRE-Partition has no letter and is hidden, still in Factory-State. BTW, what is the FAT32 Partition good for?

I could read out of the Script, that it want to remove the drive letter and to set it inactive! But the OEM-Partition is hidden and inactive yet (look attachment)

Thats why i´m afraid of running the script.

I would appreciate the solution with all the BCDEDIT-Commands with syntax :ange

post-312777-0-06830400-1295543408_thumb.

post-312777-0-86977600-1295543510_thumb.

post-312777-0-95686400-1295544203_thumb.

Schiiwa

Schiiwa

Posted
Posted (edited)

I mounted the Boot.wim, which i extracted from the WinRE-Partition via WinHEX

The file "WINPESHL.INI" is in \windows\system32 and hold this context:

[LaunchApp]

rem AppPath=%comspec%

AppPath=X:\sources\recovery\tools\recoverypackage\bin\FSCPEStart.exe

[FSCRECOVERY]

AppPath=X:\sources\recovery\recenv.exe

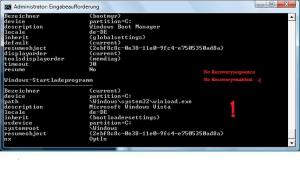

Everything looks fine on the WinRE-Partition. There is also a BCD and BOOTMGR in the ROOT.... WHY? I thought the Boot Configuration Data is on C:

The MBR is in factorystate or overridden while i installed Vista from a Untouched SP2 integrated DVD!

Edited by Schiiwa
Schiiwa

Schiiwa

Posted
Posted (edited)

Here:

http://technet.microsoft.com/en-us/library/cc766450(WS.10).aspx

I found out, that the EFI-Based Computers also have a FAT32 PArtition, so i guess, i have one, too because of the "FSC_OS" Fat32-Partition found by TESTDISK :realmad:

Here it says:

http://technet.microsoft.com/en-us/library/cc753840(WS.10).aspx

For GUID partition table (GPT) disks, specifies the new GUID value for the type field for the partition. Recognized GUIDs include:

EFI system partition: c12a7328-f81f-11d2-ba4b-00a0c93ec93b

Diskmanagment says, i have a EISA-Konfiguration

I think i have to give up, tho i think it could easy be reimplement.

I could try to give it another ID (at the Moment 27) and assign X: to it and run

setautofailover.cmd /target X: /wim /nohide

... maybe it works

Another Question is, if i APPLY the FACTORY.WIM to C:, if then my problems are gone?!

Thank u Jayclaz for your support. I will regard this thread in future, maybe someone can help...

Edited by Schiiwa
jaclaz

jaclaz

Posted
Posted

The "normal" way a hard disk with a recovery partition is set is the following:

  • hidden partition with recovery settings/files
  • visible partition with OS and all programs running

(the order in which they are is not important)

In normal operation:

BIOS->MBR->PBR of active partition->Normal OS booting

In Recovery operation:

BIOS->MBR->HotKey pressed->Recovery partition is unhidden and set Active->PBR of active partition (which is now the recovery partition)->Recovery OS booting

What happens with the "new" approach should be something like:

In normal operation:

BIOS->MBR->PBR of active partition->BOOTMGR->BCD->Normal OS booting

In Recovery operation:

BIOS->MBR->BOOTMGR->BCD->HotKey pressed->Recovery OS booting (WINRE) ->get data from factory.wim->restore OS

Compare also with this (Dell specific - but actually "general"):

http://www.goodells.net/dellrestore/vista/vistarecovery.htm

From what I can see there, the partition holding the Factory wim is not hidden on Dell's.

It is possible that your particular PC has a "mixed mode", where the Recovery partition where the Factory.wim is, is hidden and unhidden when booting the WinRE. :unsure:

If you follow the setupfailover.cmd, you will find:

    REM
    REM Hide partition
    REM

    if not {%NOHIDE%}=={} (
        goto :EOF
    )

    set TEMP_FILENAME=%SCRIPTNAME%_Temp_DiskPart.txt

    echo sel disk %DISK% > %TEMP_FILENAME%
    echo sel partition %PARTITION% >> %TEMP_FILENAME%

    REM
    REM Remove the drive letter for the partition before hiding it.
    REM The system will not allow us to remove the drive letter after hiding it.

In other words, when the original setupfailover.cmd is run, the hidden partition is unhidden and has a drive letter assigned to it (which should be the parameter you were asking about) then the batch itself removes the drive letter and hides the partition.

Hope that now it is more clear...

jaclaz

Tripredacus

Tripredacus

Posted
Posted

Oooo be careful there. There are two things that the CMD uses to find the recovery partition and it may be compiled. I see from the post that there is a custom RE application so without knowing what is in there and what it does that may become broken. The recovery partition is detected by looking for the prescense of a certain file and also by the volume GUID. The reason it looks confusing is because the CMD is supposed to be run BEFORE the recovery partition is hidden (such as in deployment or when booted into WinRE). So in those cases, it has no problem finding the recovery or boot partition because it has a drive letter at that point.

There should be two CMD files, both similarly named. One is in the boot partition and one in the recovery partition.

Personally I like Win7 WinRE better. Vista's is just annoying.

Schiiwa

Schiiwa

Posted
Posted (edited)

As you can see in Post #15 in my attachments, Testdisk found 2 hidden Partitions: 1 NTFS [WinRE] and 1 FAT32 [FSC_OTS] !?

The NTFS is a OEM Partition with ID=27.

The FAT32-Partition is just a service-partition and holds just 85 MB! It should have been deleted i guess, as you can see in the following lines

In the ROOT there are these files (and more):

SET_ENV.BAT

FINDRAMD.BAT

AUTOEXEC.BAT

...

  • ::GDISK-LOESCHE OTS_PART
  • echo.
  • echo Loesche SERVICEPARTITION...
  • echo.
  • gdisk 1 /del /p:%OTS_PART% /y
  • gdisk 1 /act /p:2 /y
  • echo.

...

This Partition should nothing have to do with the Recovery-Partition. I copied all files to my external HDD via TESTDISK and looked in the BATCH-Scripts.... Just do configure the System´s Hardware (CMOS/BIOS/FIRMWARES/etc.)


  • In normal operation:
    BIOS->MBR->PBR of active partition->Normal OS booting
    In Recovery operation:
    BIOS->MBR->HotKey pressed->Recovery partition is unhidden and set Active->PBR of active partition (which is now the recovery partition)->Recovery OS booting

  • What happens with the "new" approach should be something like:
    In normal operation:
    BIOS->MBR->PBR of active partition->BOOTMGR->BCD->Normal OS booting
    In Recovery operation:
    BIOS->MBR->BOOTMGR->BCD->HotKey pressed->Recovery OS booting (WINRE) ->get data from factory.wim->restore OS

I think, the green one is the way, the WinRE was accessed, because the Menu looked like Vista´s Boot-Menü with the Option "Repair Computer".

1st Question:

Or is the BCD and BOOTMGR on the WinRE-partition an indication for booting it over the MBR with its own Boot Configuration Data?

2nd Question:

If i mount the FACTORY.WIM, can i edit the \Boot\BCD, to see it´s content or even Export the entries to a file? Or do i have to APPLY the Image to C:, that i can export the BCD via BCDEDIT /EXPORT

ANSWER: Yes: With the command BCDEDIT /store \boot\bcd /enum all

3rd Question:

Can a WIM-File hold the original MBR?

ANSWER: NO

It is possible that your particular PC has a "mixed mode", where the Recovery partition where the Factory.wim is, is hidden and unhidden when booting the WinRE. :unsure:

I don´t think so. Because i already ran the recovery-partition several times in the past, i think it will be accessed over the BCD. The WinRE partition with id27 is designed for this, if the partition is the first one, like on my HDD!

All recovery-stuff is hidden. The FAT32-Partition i can only see via TESTDISK/BOOTDISK. Windows disk management Lists only 3 Partitions. 1 is OEM, 2 and 3 are C: and D:

In other words, when the original setupfailover.cmd is run, the hidden partition is unhidden and has a drive letter assigned to it (which should be the parameter you were asking about) then the batch itself removes the drive letter and hides the partition.

Hope that now it is more clear...

Yeah, i knew, that the script will take the letter away and hide the partition. But mine is already hidden, exept i will boot with the Vista-DVD to the CMD, then WinRE is F:\. That is the reason, why i would prefer a solution with BCDEDIT.EXE. But i don´t know the Syntax/variables/parameters/guids yet! (completely new @ vista/7)

The problem is, that i don´t want to make any changes to the partitions for now. So i can restore factory wim in case of emegency and will have the factory-state again (i hope). Then extract the BCD and restore my current SYSTEM.WIM (with proud 110GB), import bcd, let Vista repair the start-up and everything is fine.

I CAN ACCESS MY WINRE-PARTITION if i boot from the VISTA SP2-INSTALL-DISK and go to the REPAIR-OPTION - CMD.

WinRE Partition [id=27]=F:\

could i run the setautofailover script there?

SetAutoFailover.cmd /target F: /wim /nohide /partition 1

/mainos GUID ....

4th Question

Where can i find this GUID of my OS? I will attach the BCDEDIT.TXT, created with:

BCDEDIT /ENUM ALL >BCDEDIT.TXT

IS IT THIS ONE: {2ebf8c8c-0e38-11e0-9fc4-e7505350ad8a} ?

ANSWER: YES but {current} should work also

I imaged my current system on C: with this syntax:

imagex.exe /capture /boot /compress none /verify C: F:\Recovery\System.wim "SYSTEM"

And i connected the 2,5" Sata-Drive to a PC and made a RAW-Image with WindowsPE (XP), because the Laptop always hung at the destroyed sectors.

I have found an interesting Folder in the FACTORY.WIM! Look at the Restore.jpg in ATTACHMENTS. Such an EXE-File (like RESTORERECOVERY.EXE) could possibly restore my MBR, so restoring FACTORI.WIM maybe would help me to fix my problem via its installations-routine. Or it does the same like the Setautofailover-Script compiled in a EXE-File.

I just know the responsible files of XP (Files like WINNT.SIF or CMDLINES), which contain additional or costum files added by the manufacter. But where to look in VISTA? Where could a file like RESTORERECOVERY.EXE could be executed in the Installation-routine? I already looked @ the $OEM$-Folder. That is important, to look for parameters.

@ Tripredacus

5th Question:

Look @ recovery.jpg! The Picture is the standard one, but the last option "Fujitsu Siemens Computers" which would be there, if i would had booted it. Where does the Environment take this information? (it is not the orginal-screenshot :lol: )

ANSWER: from the WINPESHL.INI i think!

in mine, this is the content:

  • [LaunchApp]
  • rem AppPath=%comspec%
  • AppPath=X:\sources\recovery\tools\recoverypackage\bin\FSCPEStart.exe
  • [FSCRECOVERY]
  • AppPath=X:\sources\recovery\recenv.exe

post-312777-0-88608700-1295735281_thumb.

post-312777-0-85892800-1295735876_thumb.

Bcdedit.txt

Edited by Schiiwa
Schiiwa

Schiiwa

Posted
Posted (edited)

The Guid for the Ramdisk was already set ({ad6c7bc8-fa0f-11da-8ddf-0013200354d8})

Thats why i skipped these 3:

%BCDEDIT% -create %RAMDISK_OPTIONS% -d "Ramdisk Device Options" -device

%BCDEDIT% -set %RAMDISK_OPTIONS% ramdisksdidevice partition=%DRIVE%

%BCDEDIT% -set %RAMDISK_OPTIONS% ramdisksdipath \boot\boot.sdi

I did these commands always with a "successful" output :]

BCDEDIT -set {default} recoveryenabled yes

BCDEDIT -create {572bcd56-ffa7-11d9-aae0-0007e994107d} -d "Windows Recovery Environment" -application OSLOADER

BCDEDIT -set {default} recoverysequence {572bcd56-ffa7-11d9-aae0-0007e994107d}

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} device ramdisk=[F:]\sources\boot.wim,{ad6c7bc8-fa0f-11da-8ddf-0013200354d8}

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} path \windows\system32\boot\winload.exe

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} osdevice ramdisk=[F:]\sources\boot.wim,{ad6c7bc8-fa0f-11da-8ddf-0013200354d8}

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} systemroot \windows

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} detecthal yes

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} nx optin

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} winpe yes

BCDEDIT -set {572bcd56-ffa7-11d9-aae0-0007e994107d} custom:46000010 yes

---------------------------------------

After that, the F8-Option was available again, but it returned an error, if i chose it:

Status: 0xc000000f info: the boot selection failed because a required device is inaccessible. ENTER=continue

If i push ENTER, it simply boots the installed system.

Then i deleted the GUID {572bcd56-ffa7-11d9-aae0-0007e994107d} and tried to let the OS assign a guid with these:

BCDEDIT -delete {572bcd56-ffa7-11d9-aae0-0007e994107d}

BCDEDIT -create -d "Windows Recovery Environment" -application OSLOADER --> that returned the GUID: {43f982df-29d7-11e0-b393-00030d588b4f}

BCDEDIT -set {default} recoverysequence {43f982df-29d7-11e0-b393-00030d588b4f}

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} device ramdisk=[f:]\sources\boot.wim,{ad6c7bc8-fa0f-11da-8ddf-0013200354d8}

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} path \windows\system32\boot\winload.exe

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} osdevice ramdisk=[f:]\sources\boot.wim,{ad6c7bc8-fa0f-11da-8ddf-0013200354d8}

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} systemroot \windows

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} detecthal yes

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} nx optin

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} winpe yes

BCDEDIT -set {43f982df-29d7-11e0-b393-00030d588b4f} custom:46000010 yes

As i expected, same error again

I will attach 2 txt-files.

BEFORE.TXT (Before applying any command with BCDEDIT.EXE) returned with BCDEDIT /enum all >before.txt

AFTER.TXT (After applying all these commands with BCDEDIT.EXE) returned with BCDEDIT /enum all >after.txt

Attachment doesn´t work at the moment... it will follow!

Help would be appreciated!

Edited by Schiiwa
Tripredacus

Tripredacus

Posted
Posted

BIOS->MBR->BOOTMGR->BCD->HotKey pressed->Recovery OS booting (WINRE) ->get data from factory.wim->restore OS

BIOS (motherboard) looks for drives with a MBR so it knows what it can boot.

MBR is the section on the drive that says "this is bootable" or "this is not bootable"

If it is bootable (In Vista's case), The answer is, find BOOTMGR on the active partition.

BOOTMGR looks at BCD to determine where Windows is located

Windows is loaded.

However, if you choose to run recovery, BOOTMGR changes the BCD, to de-activate the OS volume and active the recovery volume. Then BCD says boot to the active partition, which would then have WinRE. This is because the F8 menu is not part of the OS, it is a bootloader itself. I may have that backwards but the idea is the same.

The reason why you are seeing strange files is that Microsoft did not give OEMs a turnkey solution to make recovery partition in Vista. All OEMs HAD to make their own method (rather in Win7 OEM can use turnkey solution or do whatever they want) so there are subtle differences between Vista recovery partitions between different brands of computers. Also, it is possible that your notebook supports an EFI style boot environment.

Also, your answer to #5 is technically incorrect, but I cannot reveal as to where that last option really comes from.

Schiiwa

Schiiwa

Posted
Posted (edited)

I´ll come back to you later.... Have to try some things!

Project Shiva! Long live Windows 98!!!! :thumbup

Edited by Schiiwa

Please sign in to comment

You will be able to leave a comment after signing in



Sign In Now
 Share
Go to topic listing

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
