XP installation HP DV6-6b56-ex

[Dacer]

Hi,

I recently bought the machine with Intel HM 65 chipet based on sandybridge with pre-loaded Win7

I have been trying to install Xp with all possible drivers I found all through the different forums, even here I went through Fernando's thread "0" I followed what it was mentioned but everytime I get BSOD with code 0x000007E

I h ave tried almost all the F6 methods by downloading various AHCI drivers but in vain. even by slipstreaming via Nlite.

My Laptop configuration is:

HP DV6 - 6b56-ex

Processor

Intel® Core™ i5-2430M (2.4 GHz 3 MB L3 cache )

Chipset:

Intel HM65 Express

PCI\VEN_8086&DEV_1C03&SUBSYS_1656103C&REV_05\3&11583659&0&FA

BIOS : Disabled to edit.

Only AHCI Mode i.e IDE ATA/ATAPI Controller has only "Intel® Mobile Express Chipset SATA AHCI Controller"

I tried the latest F6 "10.8_f6flpy-x86" drivers from Intel support page and tried various driver packs which I found consisting of the above AHCI Controller like "RST_10.0.0.1046_WHQL_RAID_AHCI_drv_and_GUI", "DP_Chipset_wnt6-x86_1202.7z"

BUT all invain! and BSOD with 7E

I request to share the success if any one have succeeded to install XP either via F6 or Nlite slipstreaming.

Thanks

[Tripredacus]

0x7E isn't related to the mass storage controller driver. Last time I saw that it was due to a conflict between the HDMI audio on a video card and a sound card... or at least their drivers.

So far we haven't figured out how to resolve that particular issue. What happens if you use the stock XP disc without all those extra drivers included?

[Dacer]

Hi,

Tripredacus,

Thanks alot I was really wondering what this code is 0x0000007E ?

Thanks for the information infact my machine has the following configuration I hope this would put some light to help comeout with some solution.

Processor Intel® Core™ i5-2430M

2.4 GHz

3 MB L3 cache

Chipset Intel HM65 Express Memory 4 GB DDR3 (1 x 4 GB)

Total slots: 2 user accessible

Upgradeable to 8 GB DDR3

Storage 500 GB SATA (5400 rpm)

Up to 12 GB partition for system recovery

SuperMulti DVD±R/RW with Double Layer Support

Mobile entertainment HP TrueVision HD Webcam with Integrated Digital Microphone

(low-light)

Communication Integrated 10/100/1000 Gigabit Ethernet LAN

Intel 802.11 b/g/n; Bluetooth with WiDi

Multi-Format Digital Media Card Reader for Secure Digital cards,

Multimedia cards

Ease of use Integrated fingerprint reader

Display 39,6 cm (15,6") High-Definition LED BrightView Display

Display Resolution: 1366 x 768

Video AMD Radeon HD 6490M (1 GB DDR5 dedicated, up to 2.97 GB total)

Sound Beats Audio for superior sound

I had read in some forum, which I forgot, regarding the video driver causing problem for xp installation may be the same what you have advised.

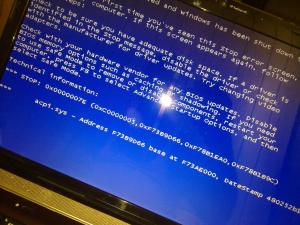

Iam here attaching the BSOD screen I face always.

So, any solution about it? I am a die hard fan of Xp feel a sort of emptiness in my machine if it is not dual booted XP + Win 7.

Thanks.

Edited February 23, 2012 by Dacer

[Dacer]

Hi,

Tripredacus,

Thanks alot I was really wondering what this code is 0x0000007E ?

Thanks for the information infact my machine has the following configuration I hope this would put some light to help comeout with some solution.

Processor Intel® Core™ i5-2430M

2.4 GHz

3 MB L3 cache

Chipset Intel HM65 Express Memory 4 GB DDR3 (1 x 4 GB)

Total slots: 2 user accessible

Upgradeable to 8 GB DDR3

Storage 500 GB SATA (5400 rpm)

Up to 12 GB partition for system recovery

SuperMulti DVD±R/RW with Double Layer Support

Mobile entertainment HP TrueVision HD Webcam with Integrated Digital Microphone

(low-light)

Communication Integrated 10/100/1000 Gigabit Ethernet LAN

Intel 802.11 b/g/n; Bluetooth with WiDi

Multi-Format Digital Media Card Reader for Secure Digital cards,

Multimedia cards

Ease of use Integrated fingerprint reader

Display 39,6 cm (15,6") High-Definition LED BrightView Display

Display Resolution: 1366 x 768

Video AMD Radeon HD 6490M (1 GB DDR5 dedicated, up to 2.97 GB total)

Sound Beats Audio for superior sound

I had read in some forum, which I forgot, regarding the video driver causing problem for xp installation may be the same what you have advised.

Iam here attaching the BSOD screen I face always.

So, any solution about it? I am a die hard fan of Xp feel a sort of emptiness in my machine if it is not dual booted XP + Win 7.

Thanks.

So far we haven't figured out how to resolve that particular issue. What happens if you use the stock XP disc without all those extra drivers included?

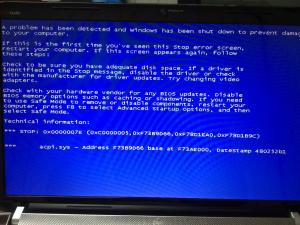

Yeah! just now I did try booting with XP Disk and it is the same result I am attaching the fresh shot of BSOD .

[Tripredacus]

What SP level is the standard CD at? Are you installing from a CD drive or a USB key?

[Dacer]

0x7E isn't related to the mass storage controller driver.

this sentence gave another dimension to re-think about the possiblity of BSOD.

I carefully read the message in the BSOD and since you indicated that 00007E is not the cause of HDD recognition then I narrowed my search to the possible driver failure mention inthe BSOD message.

and I googled about ACPI "Advanced Configuration and Power Interface (ACPI)" found part of information at HP support forum and remaining here "http://www.theeldergeek.com/clean_installation_of_windows_xp.htm"

I tried the same during the setup with the Slip Streamed XP2 when Windows asked for hitting F6 I hit F5 and got two options and I selected the first one(which I don't remember) and after that it hanged at "Windows is starting.....)

Later on I made another attempt and tried instead of F5 I hit F7 and here we go!

WinXp completed installing as usual.

I don't have much in depth knowledge about the ACPI and relation to F7 but I got it.

the next Challenging task I have is Drivers installation.

At the moment no driver is getting installed except the LAN. I click drivers and they start installing but without results still the hurdle ahead!
