RIS install of XP from Win Server 2003, HELP!

shamshasan
 Share

Recommended Posts

shamshasan

shamshasan

Posted
Posted

Problem: (Brief Description)

======

I am trying to use Remote Installation Services (RIS) to carry out an unattended install of Windows XP OS from my test Server (which I also built). I keep facing this error message after choosing which image to install:

The operating system image you selected does not contain the necessary drivers for your network adapter. Try selecting a different operating system image. If the problem persists, contact your system administrator.

Setup cannot continue. Press any key to exit.

I have read a couple of white papers on many support sites to assist me. However i cannot seem to get past this stage. Definitely gone through: "246184 How to Add Third-Party OEM Network Adapters to RIS Installations" on Microsoft Support. I also

* considered and applied carefully instructions and information given specifically by my OEM (DELL) about my device in creating my answer/SIF file, and

* created the /$oem$/$1/... directory as per required for the RIS Install to obtain the driver.

* was lucky enough to find this site ... i've looked through the two forums: (1) Unattended Windows, and (2) Device Drivers under MSFN -> Unattended Windows Discussion & Support to get advice....

Still no success :no:

Appreciate any help I can get. Details follow:

(Thanks!!!)

-=-=-=-=-=-= DETAILS =-=-=-=-=-=-=-=-=-=-=-=-=-=-

:: SETUP OF THE TWO MACHINES (DETAILS) ::

1) SERVER: has DHCP and DNS as well as Active Directory working.

=> I don't believe details of this machine is needed asides from the fact that it's running Windows Server 2003

2) CLIENT: (that i'm trying to remote install WinXP on) DELL - Optiplex GX270

=> Tech Specs: OptiPlex GX270 Desktop Product Details - Tech Specs

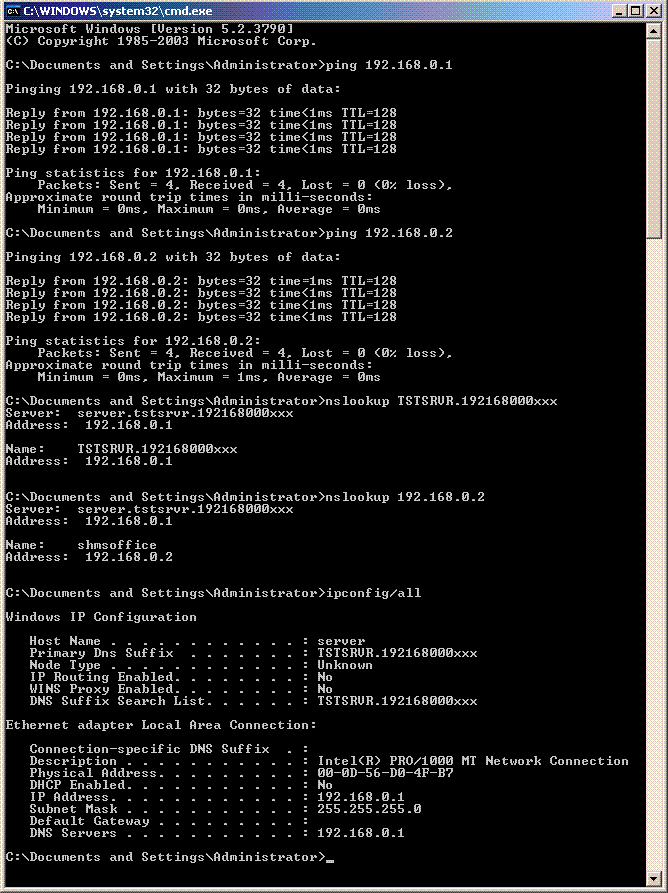

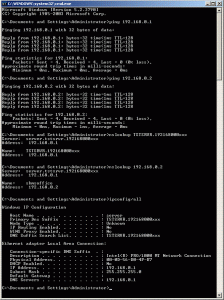

As far as i'm aware and tested DHCP and DNS are working. See nslookup_tested.GIF attached.

:: SETTINGS PRIOR TO CREATING RIS IMAGE ::

I made sure that my Disk was partitioned in 2 parts. (1) part was partitioned and formatted, and (2) was left unpartitioned (> 40 GB)

(1) For all other systems as well as the Windows Server 2003 OS installation

=> DHCP server + DNS server + Active Directory also installed on this partition

(2) Reserved for RIS

=> (Entire) disk was made dynamic and then this unpartioned space, (2), was formatted prior to installing Remote Installation Services

:: CREATED RIS IMAGE THUS ::

01) Start -> run -> risetup -> (takes me to:) 'Remote Installation Services Setup Wizard'

02) 'Add a new OS image to this remote installation server'

=> I am on my 6th attempt of creating an image! (just while reading different white papers and trying to create my image in different ways)

03) Path (for Installation Source Files Location) :: Windows XP CD :: 'D:\'

04) Folder name :: Attempt#xx -> Friendly description :: '...' -> (On 'Previous Client Installation Screens Found' screen:) Use the new client installation screens, and overwrite the old ones

05) (Check settings on:) 'Review Settings' screen

06) Tasks that were completed:

Copying Windows installation files

Updating Client Installation wizard screen files

Creating unattended Setup answer file

Starting the required remote installation services

Authorizing DHCP

07) 'E:\RemoteInstall\Setup\English\Images\Attempt#xx\i386' exists

< Next steps follow after reading "246184 How to Add Third-Party OEM Network Adapters to RIS Installations" on Microsoft Support. >

08) Created '...\Attempt#xx\$oem$\$1\Drivers\nic\' and extracted 'Intel PRO/1000 Network Drivers' files (Intel Gigabit LOM, v.7.0.34.0, A00) into this folder.

=> drivers: Network: Intel Gigabit LOM, Driver, Windows XP, OptiPlex GX270 - Driver Download PAGE

09) Copied E1000325.inf and E1000325.sys files into '...\i386\' folder

10) Edited '...\Images\Attempt#xx\i386\templates\ristndrd.sif' and added the following lines:

[Unattended]
	OemPreinstall = yes
	OemPnpDriversPath = Drivers\Nic

< Next steps follow after reading the 'Unattend.txt' + 'PushXP.TXT' provided along with the driver installation files by OEM. >

11) 'Unattend.txt' :: (PushXP.TXT is also attached at the end) :: this is what is provided by the OEM for Unattend install. PushXP.TXT goes more in depth.

=> Note: The details in PushXP.TXT define the Unattend install via bootable floppy disk (according to my understanding)

[Unattended]
     UnattendMode=FullUnattended
     OemSkipEula=Yes
     OemPreinstall=Yes
     OemPnPDriversPath=\drivers\net\E1000
     TargetPath= *
     DriverSigningPolicy=Ignore
     Filesystem=LeaveAlone
     OverwriteOemFilesOnUpgrade=No

;  This switch prevents the user setup dialog from running when XP
;  starts for the first time.
     UnattendSwitch=Yes

	[GuiUnattended]
     AdminPassword=*
     AutoLogon=Yes
     AutoLogonCount=1
     OEMSkipRegional=1
     TimeZone=4
     OemSkipWelcome=1

	[UserData]
     FullName=Computer1
     OrgName=CompanyName
     ComputerName=Computer1
;  PRODUCT ID is required for most installations.
     ProductID="xxxxx-xxxxx-xxxxx-xxxxx-xxxxx"

	[Identification]
     JoinWorkgroup=WORKGROUP
;  *Use the following for a domain installation
;    JoinDomain=MYDOMAIN
;    CreateComputerAccountInDomain=Yes
;    DomainAdmin=Installer
;    DomainAdminPassword=install

	[Networking]
     InstallDefaultComponents=Yes

12) I also created '...\$oem$\$$\Help' && '...\$oem$\$$System32' as per the details in PushXP.TXT

=> Note: the RIS install was also tried without these folders and it didn't work.

13) I changed

OemPnPDriversPath=\Drivers\Nic to

OemPnPDriversPath="\drivers\net\E1000"

as per detailed in the OEM provided Unattend.txt + PushXP.txt. Also made sure the actual directories reflected this change.

=> Note: It didn't work with the other settings either anyway. :(

14) My answer file looks like this now:

[data]
	floppyless = "1"
	MsDosInitiated="0"
	OriSrc = "\\%SERVERNAME%\RemInst\%INSTALLPATH%\%MACHINETYPE%"
	OriTyp = "4"
	LocalSourceOnCD = 1
	DisableAdminAccountOnDomainJoin = 1
	UnattendedInstall="Yes"

	[SetupData]
	OsLoadOptions = "/noguiboot /fastdetect"
	SetupSourceDevice = "\Device\LanmanRedirector\%SERVERNAME%\RemInst\%INSTALLPATH%"

	[Unattended]
	OemPreinstall=Yes
	FileSystem = LeaveAlone
	ExtendOEMPartition = 0
	TargetPath = \WINDOWS
	OemSkipEula = yes
	InstallFilesPath = "\\%SERVERNAME%\RemInst\%INSTALLPATH%\%MACHINETYPE%"
	LegacyNIC = 1
	UnattendMode=GuiAttended
	OemPnPDriversPath="\drivers\net\E1000"
	DriverSigningPolicy=Ignore
	OverwriteOemFilesOnUpgrade=No
	UnattendSwitch=Yes

	[UserData]
	ProductID=<BLANKED OUT>
	FullName="Shams"
	OrgName="CMUQ"
	ComputerName=OffcTst

	[GuiUnattended]
	AdminPassword=<BLANKED OUT>
	EncryptedAdminPassword=Yes
	OEMSkipRegional=1
	TimeZone=150
	AutoLogon=Yes
	AutoLogonCount=1
	OemSkipWelcome=1

	[Display]
	BitsPerPel = 16
	XResolution = 800
	YResolution = 600
	VRefresh = 60

	[Networking]
	InstallDefaultComponents=Yes

	[NetServices]
	MS_Server=params.MS_PSched

	[Identification]
	JoinWorkgroup=WORKGROUP

	[RemoteInstall]
	Repartition = Yes
	UseWholeDisk = Yes

	[OSChooser]
	Description ="try 06"
	Help ="Automatically installs Microsoft Windows XP Professional without prompting the user for input."
	LaunchFile = "%INSTALLPATH%\%MACHINETYPE%\templates\startrom.com"
	ImageType =Flat
	Version="5.1 (0)"

	[TapiLocation]
	CountryCode=974

I hope i've covered all the details. Again, any help is MUCH appreciated!

Thanks!

Shams :crazy:

-=-=-=-=-=-=-= PushXP.TXT :: BEGINS =-=-=-=-=-=-=-=-

Windows* XP Push Install Instructions

=======================================

Contents:

I. Introduction

II. Setting up an install directory on the file server

III. Deployment Methods

IV. Microsoft documentation for unattended installations of Windows

XP.

I. Introduction

A "Push", or unattended installation of Windows XP provides a

means for network adminstrators to easily install Windows XP on

similarly equipped systems. The network administrator can create a

bootable diskette that will automatically log into a central server

and install the operating system from an image of the Windows XP

installation directory stored on that server.

This document provides instructions for a basic unattended installation

of Windows XP that includes the installation of drivers for the

Intel® PRO/1000 Family of network adapters.

The elements necessary for the Windows XP unattend installation are:

- A Windows XP Server with a shared image of the Windows XP Installation

CD.

- An unattended installation configuration file that provides Windows

XP setup with information it needs to complete the installation.

The name of this file is UNATTEND.TXT

- A DOS boot diskette that contains Microsoft Network Client software

for connecting to the Windows XP server and AutoExec commands

to automatically start the Windows XP installation.

II. Setting up an Install Directory on the File Server

The server must be setup with a distribution folder that holds the required

Windows XP files and which clients can reach when connecting via TCP/IP or

IPX.

For illustration purposes, the examples in this readme use the network share

D:\PUSHXP. To create this share, create a directory on the server,

(EX: D:\PUSHXP).

Next, use the "My Computer" applet in Windows XP to locate the D:\PUSHXP

folder. Right-click on the folder and select "Sharing". Select "Share

this folder", Give it a share name (EX: PUSHXP). This share name will be

used to connect to this directory from the remote target systems. By

default, the permissions for this share will be for "Everyone" to have

"Full Control". Adjust permissions as necessary and click OK.

To prepare the distribution folder:

1. Copy the entire contents of the Windows XP CD to D:\PUSHXP.

Use Windows Explorer or XCOPY in order to maintain the same

directory structure as on the CD. When the copy is complete, the

Windows XP installation files should be in the D:\PUSHXP

directory and the I386 and other installation directories

should be subdirectories of the D:\PUSHXP directory.

2. Copy Unattend.txt from the Intel media (found in the same directory

as these instructions) into the shared directory D:\PUSHXP\I386.

3. Edit the Unattend.txt file with Notepad or another text-editor

to include your customizations. At a minimum you should change

the items in the [userData] section of the file.

4. Create the driver install directory structure and copy the driver

files to it.

Make folders beneath the new PUSHXP\I386 as follows:

\$OEM$\$$\Help

\$OEM$\$$\System32

\$OEM$\$1\Drivers\Net\E1000

Copy the driver files from the Drivers disk CD to the

$OEM$\$1\Drivers\Net\E1000 directory. Use XCOPY /S or Windows

Explorer to maintain the directory structure. When finished the

$OEM$\$1\Drivers\Net\E1000 directory should contain the NET8254x.INF

file, the E1000NT5.SYS driver file and other files necessary for

installing the driver.

III. Deployment Methods

1. Make sure that you have a copy of a network bootable MS-DOS floppy that

will connect to the Z:\PUSHXP directory and use it to boot the

destination system (the one you want to push install to) and connect

to this shared network directory.

2. Run the command: (assumes prompt at \\Server\PUSHXP\i386):

winnt /u:Z:\I386\unattend.txt /s:Z:\I386 /t:c

(where Z: equals mapped drive)

Important Note:

In the above procedure, setup runs the installation in unattended

mode and also detects the plug and play network adapters. All driver

files are copied from the shared directory to the target system

directories and installation of the OS and Network Adapters continues

without user intervention.

IV. Microsoft documentation for unattended installations of Windows

XP.

For a complete description of the parameters supported in Unattend.txt

see the DEPLOY.CHM document in the DEPLOY.CAB cabinet file on the

Windows XP CD. To obtain the document, use Internet Explorer 5.0 or

greater to open DEPLOY.CAB in the \SUPPORT\TOOLS directory on the CD.

Other documents and utilities in the DEPLOY.CAB file provide details

and tools for setting up a variety of unattended installation methods.

[unattended]

UnattendMode=FullUnattended

OemSkipEula=Yes

OemPreinstall=Yes

OemPnPDriversPath=\drivers\net\E1000

TargetPath= *

DriverSigningPolicy=Ignore

Filesystem=LeaveAlone

OverwriteOemFilesOnUpgrade=No

; This switch prevents the user setup dialog from running when XP

; starts for the first time.

UnattendSwitch=Yes

[GuiUnattended]

AdminPassword=*

AutoLogon=Yes

AutoLogonCount=1

OEMSkipRegional=1

TimeZone=4

OemSkipWelcome=1

[userData]

FullName=Name

OrgName=Organization

ComputerName=Computer1

; PRODUCT ID is required for most installations.

ProductID="xxxxx-xxxxx-xxxxx-xxxxx-xxxxx"

[identification]

JoinWorkgroup=WORKGROUP

; *Use the following for a domain installation

; JoinDomain=MYDOMAIN

; CreateComputerAccountInDomain=Yes

; DomainAdmin=Installer

; DomainAdminPassword=install

[Networking]

InstallDefaultComponents=Yes

-=-=-=-=-=-=-= PushXP.TXT :: ENDS =-=-=-=-=-=-=-=-



kenedy

kenedy

Posted
Posted

Putting network adapter drivers in i386 folder is enough to make text-mode setup running. OemDriversPath is for GUI mode. Try to put all driver files in i386 folder, not just sys and inf. Also you can try driver from Intel (from personal experience - they work good with RIS).

shamshasan

shamshasan

Posted
  • Author
Posted
OemDriversPath is for GUI mode.
Didn't know that... cool
Try to put all driver files in i386 folder, not just sys and inf.

Tried that, didn't work.

So all i'm trying to do is get the idea of RIS and how it works. While my SIF file has some things automated i don't mind doing a psuedo-attend install where i will need to manually type in some of the details.

So, from ...

Putting network adapter drivers in i386 folder is enough to make text-mode setup running.
i'm getting that simply the following steps should be all i need?

1) use risetup to create RIS image

2) just put the network adapter drivers in the i386 folder

and that should be enough to make it work? :blink:

Oh! The Server and Client machine are connected via a Switch and Ethernet. So, the Client machine needs to communicate through the network driver so that would need to be installed (definately)....

.... i'm still lost. :}

kenedy

kenedy

Posted
Posted

So, are you getting initial PXE boot screens (password/domain prompt, image selection)?

If yes, then RIS is working fine. WindowsXP just have no driver for that network adapter, so right after PXE Boot phase - error message is displayed.

shamshasan

shamshasan

Posted
  • Author
Posted
So, are you getting initial PXE boot screens (password/domain prompt, image selection)?

If yes, then RIS is working fine. WindowsXP just have no driver for that network adapter, so right after PXE Boot phase - error message is displayed.

You are correct... but i knew this already :P and the answer (supposedly) lies in this white paper: Microsoft Knowledge Base Article - 246184 How to Add Third-Party OEM Network Adapters to RIS Installations.

While i learnt stuff through that white paper and i'm sure that the steps i took thereafter were important in the process it doesn't seem to work. I'm missing something and that's what i hope some of the experts here could help me out with.

Note: While the white paper details how to, 'Add Third-Party OEM Network Adapters to RIS Installations,' white papers are usually always general and OEMs usually have their own specifications that they want you to follow. Hence i detail my route towards preparing my RIS image with the specific machines.

As i mentioned I have been and still am reading up what ever i can to solve this problem. However my reading has sort of flatlined where i'm just coming against the same details again and again.

btw, thanks for your help man!

still not working... :(

need help people!

Shams

  • 1 year later...
Nicguy

Nicguy

Posted
Posted

The text mode portion relies only on the driver files contained in the i386 directory...nothing else. I've seen one OEM require a modification to the INF file in order to get the driver to load correctly in RIS during the text mode, but I'm not certain if Intel does.

Just make sure whatever network drivers (inf and sys files only required) are located in the i386 directory on your RIS image also loads OS present. Make sure you restart your RIS service after placing the appropriate driver. If a .PNF file isn't created with a comparable name to the INF file you included, then you haven't restarted your RIS service (BINLSVC) yet.

Please sign in to comment

You will be able to leave a comment after signing in



Sign In Now
 Share
Go to topic listing

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...
