The user is reporting strange font corruption.

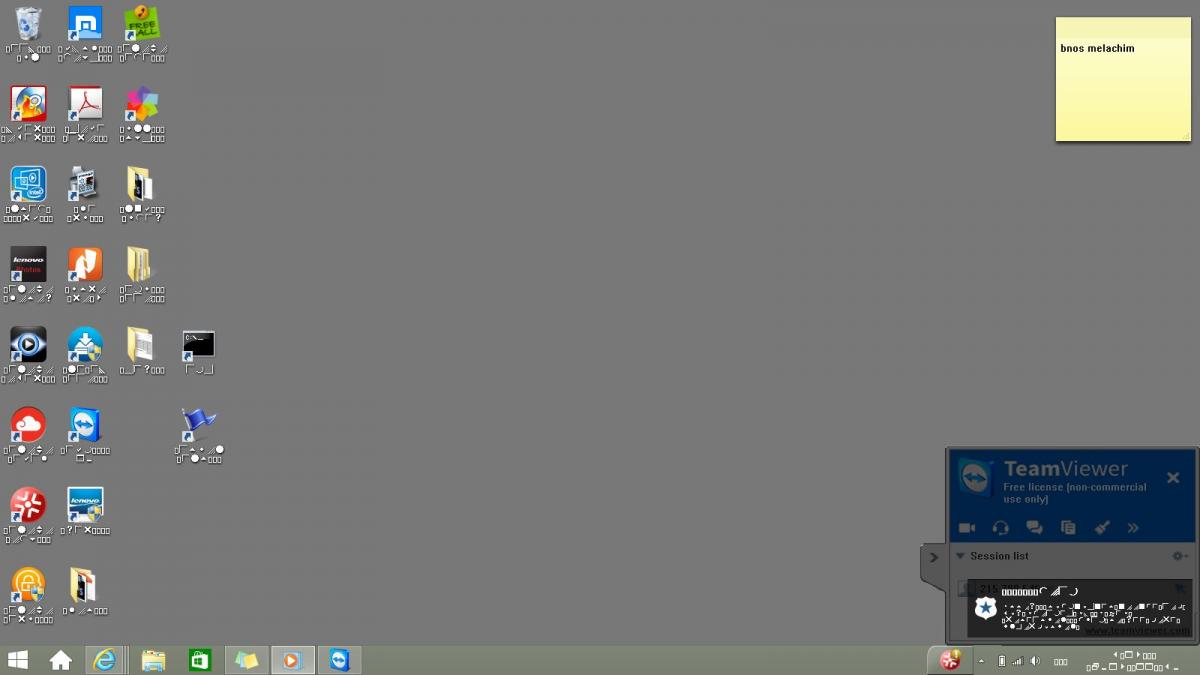

Sure enough, I logged on with TeamViewer and took a screenshot.  Here's what I see:





Anyone know what caused this and how to fix it?

Not having seen that particular corruption I'll make a wild guess and say that something (possibly something the user ran in order to try to change his UI characteristics) messed up the [HKEY_CURRENT_USER\Control Panel\Desktop\WindowMetrics] key contents.



Here's one I use to set Windows 8 and higher systems to settings I like...



Windows Registry Editor Version 5.00

[HKEY_CURRENT_USER\Control Panel\Desktop\WindowMetrics]
"AppliedDPI"=dword:00000060
"BorderWidth"="-15"
"CaptionFont"=hex:f4,ff,ff,ff,00,00,00,00,00,00,00,00,00,00,00,00,90,01,00,00,\
  00,00,00,01,00,00,00,00,53,00,65,00,67,00,6f,00,65,00,20,00,55,00,49,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00
"CaptionHeight"="-255"
"CaptionWidth"="-225"
"IconFont"=hex:f4,ff,ff,ff,00,00,00,00,00,00,00,00,00,00,00,00,90,01,00,00,00,\
  00,00,01,00,00,00,00,53,00,65,00,67,00,6f,00,65,00,20,00,55,00,49,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00
"IconSpacing"="-885"
"IconTitleWrap"="1"
"IconVerticalSpacing"="-1095"
"MenuFont"=hex:f5,ff,ff,ff,00,00,00,00,00,00,00,00,00,00,00,00,90,01,00,00,00,\
  00,00,01,00,00,00,00,53,00,65,00,67,00,6f,00,65,00,20,00,55,00,49,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00
"MenuHeight"="-225"
"MenuWidth"="-225"
"MessageFont"=hex:f4,ff,ff,ff,00,00,00,00,00,00,00,00,00,00,00,00,90,01,00,00,\
  00,00,00,01,00,00,00,00,53,00,65,00,67,00,6f,00,65,00,20,00,55,00,49,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00
"MinAnimate"="1"
"PaddedBorderWidth"="0"
"ScrollHeight"="-225"
"ScrollWidth"="-225"
"SmCaptionFont"=hex:f4,ff,ff,ff,00,00,00,00,00,00,00,00,00,00,00,00,90,01,00,\
  00,00,00,00,01,00,00,00,00,53,00,65,00,67,00,6f,00,65,00,20,00,55,00,49,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00
"SmCaptionHeight"="-255"
"SmCaptionWidth"="-255"
"StatusFont"=hex:f4,ff,ff,ff,00,00,00,00,00,00,00,00,00,00,00,00,90,01,00,00,\
  00,00,00,01,00,00,00,00,53,00,65,00,67,00,6f,00,65,00,20,00,55,00,49,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,\
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00
"Shell Icon Size"="32"





-Noel

Thanks, I'll give it a shot.

It's probably a font substitution issue (since the taskbar is messed up too.) Try restoring the attached keys.



DefaultAllFontKeys.reg



Edit: If that doesn't work try restoring the font links: HKLM.FontLink.backup.reg



Edit 2: Last resort, http://www.withsteps.com/2621/windows-8-default-font-download-repair-kit.html

Edited December 1, 201411 yr by aphelion

http://www.askvg.com/fix-unknown-characters-or-vertical-rectangles-are-showing-in-place-of-metro-icons-in-windows-8-start-screen-and-login-screen/
